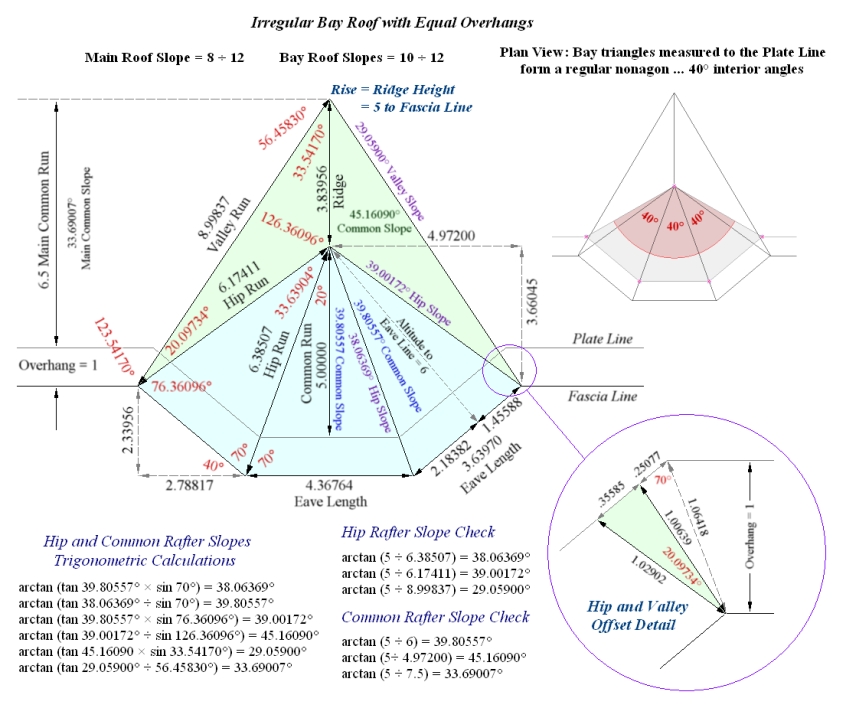

Irregular Bay Roof with Equal Overhangs ... Dimensions and Angles

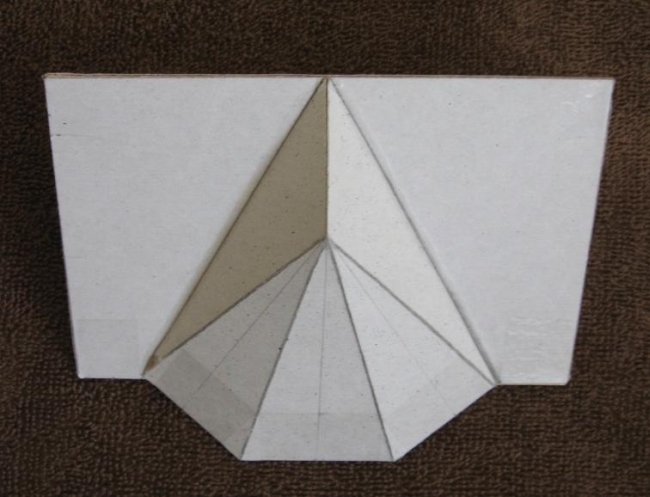

Irregular Bay Roof with Equal Overhangs ... 3D Model, Plan View

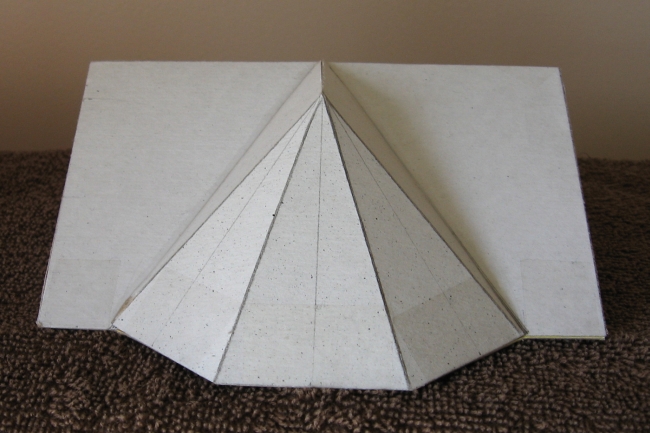

Irregular Bay Roof with Equal Overhangs ... 3D Model, Front View

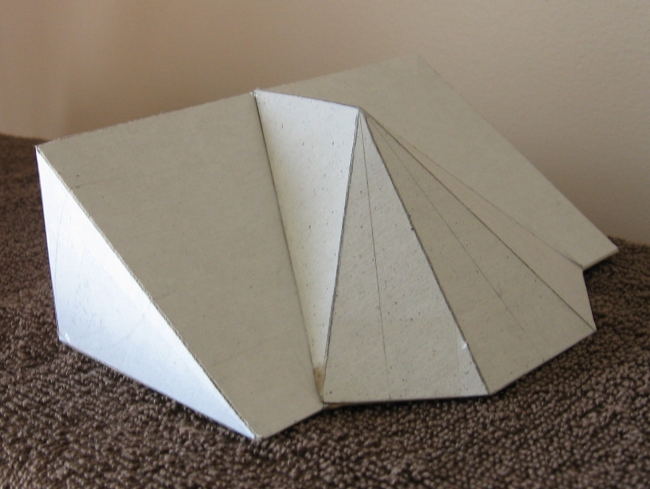

Irregular Bay Roof with Equal Overhangs ... 3D Model, Oblique View

Example Arizona Hip based on a Nonagon

Irregular Bay Roof with Equal Overhangs ... Plan View and Elevation

Joe Bartok
