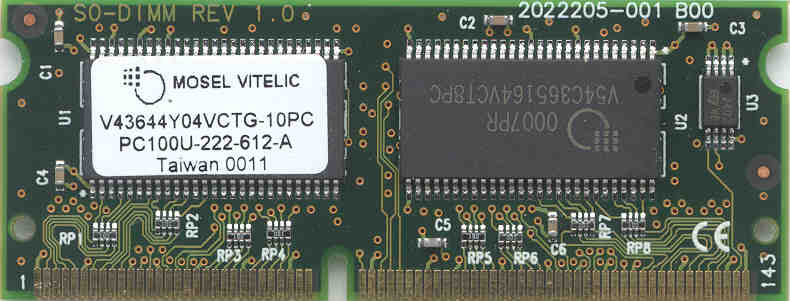

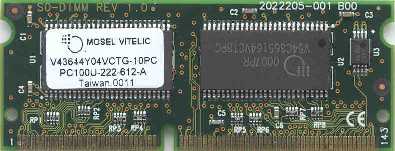

(Front - click for larger
image)

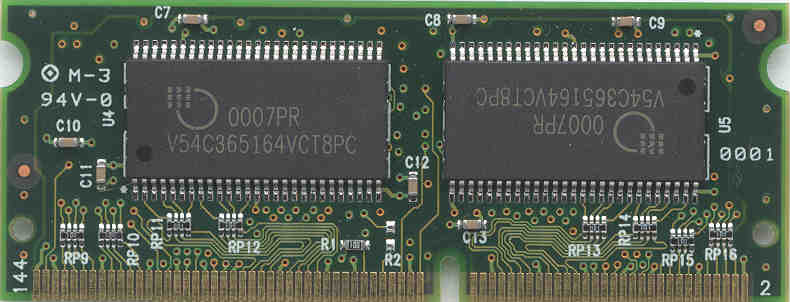

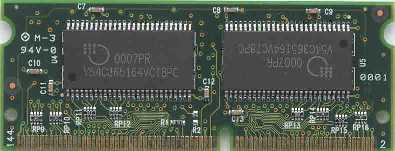

(Back - click for larger
image)
Where to buy?
This memory module is the default memory from the i-Opener. The best
source is to find someone who has upgraded the memory of their i-Opener and
wants to sell their old module. I do not know of any retail sources for
this module. The module also has surface mount capacitors on it.
There are thirteen 0.10uF +-10%* brown capacitors on this module. The module does NOT contain a resistor which can be used
for R84.
Note: The memory from the Crucial module
has been reported to work with rev 1.2 motherboards (I have not tested this
myself).
Pricing
Whatever you can work out with someone who has one to sell.
What's the catch?
First, you have to find them. Next, you have to desolder the chips to
remove them from the module. The good news is you won't void your warranty
since you didn't have one in the first place ;). Memory chips
can easily be destroyed by improper handling, desoldering or
installation.
* based on my measurements
