| WHEEL WEIGHING SCALES |

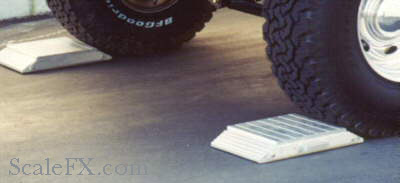

| The axle scale can weigh a complete vehicle by adding up the axle weights. We can provide automatic systems with RED / GREEN signal lights to signal the driver after automatically recording the axle that is on the scale. |

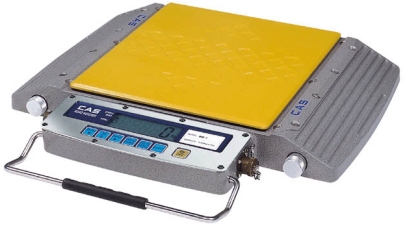

| A portable wheel-weighing scale that can be linked in series for mobile inspection of multiaxle trucks, RVs, aircraft, and other vehicles is being introduced by Scale FX, Inc. The Scale FX/CAS RW-Series wheel-weighing scale features cast-aluminum construction, has a 1" LCD illuminated display, is battery-operated, and comes with an AC adapter/charger. Available in 10,000- and 20,000-lb-capacity models, up to six scales can be linked for multiaxle vehicles and display individual or total weight in pounds or kilograms. Accurate to 1% of vehicle weight, this scale provides digital filtering to compensate for vibrations, has a standard printer port, and operates 20 hours on a single charge. Designed to handle 150% overload, single- and double-width models measuring 18" � 21.1" � 2.4" and 28.3" � 22.3" � 2.4", respectively, are available. |
Wheel weigher scale made of rugged cast aluminum. Display is built in 1" LCD w/ back light.
Used for car, truck and custom applications. Can be used for any mobile weight
inspection. Scales ae linkable for multi-axle weighing. Up to 6 scales can be linked together.
1% accuracy. Single and double width platforms are available. Each scale will display the
individual weight and total weight by pressing the LOCAL/TOTAL button. Battery operated using
(12) AA rechargeable or dry cell batteries. 20 hours continuous use before recharging. Rechargeable
batteries are included. Also includes a 120 VAC to 12 VDC charger.
|
 |
 |
 |
| __________________________________________________________________________________________________ |

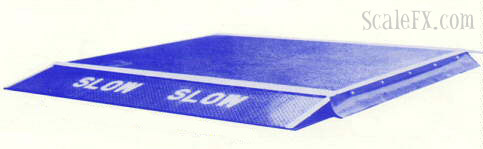

| Wheel Weighers are used to check truck weights and avoid costly tickets. Standard size is 30" wide by 84" long. Total capacity is 60,000 lbs. Flush mount pit frames and other sizes are available. |
| __________________________________________________________________________________________________ |
| The One Piece Portable Wheel Weigher is a lightweight heavy-duty highly accurate and user friendly portable wheel load weigher. It can be used to measure the wheel load, axle load, axle group load and the gross weight of heavy-duty commercial vehicles. Perfect for roadside inspection, it can withstand truck overrun at all points including the weight display area. |
 |
 |
| __________________________________________________________________________________________________ |
| Wheel Weigher Platform with Indicator and Portable Wheel Weighing Scales |
| Wheel Weigher Platform with Indicator and Portable Wheel Weighing Scales are made with cast aluminum and are designed specifically for mobile weight inspection and portability. Capacities for the platform with indicator range from 10,000 lbs to 30,000 lbs. Capacities for the portable wheel weighing scale range from 10,000 lbs to 20,000 lbs. Can connect up to 6 platforms or scales to display individual or total weight. |
 |
 |
