Scale FX, Inc. offers a complete line of NTEP Turn-Key applications.
Truck Scales designed to accommodate your requirements.
From the Fully Electronic Low Profile above ground vehicle scale with
steel or concrete deck to the Pit Type vehicle scale with a fully electronic
concrete deck. Or a steel deck portable contractor scale is also available.
Scale FX, Inc. employs our own crew for excavation and concrete work,
so we can help with you in preparing your site for installation, renovation
and removal of existing scales.

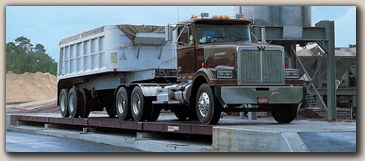

Low Profile Truck Scale
The VE series Truck Scales will provide years of dependable service.
Designed and built to be tough, strong and rugged to withstand the stresses
of rigorous use in harsh environments.
For maximum strength, the weight bridge is reinforced by
8' square steel channel to create a welded deck that will maintain a flat,
rigid structure for the life of the scale. To maintain alignment, the tool steel,
nickel plated, waterproofed load cells are mounted on a self-stabilizing suspension system that ensures accurate weighing over a wide load range.
Super Low Profile Series of Truck Scales
- Weigh bridges designed for Loading Main Girders, Providing Maximum Strength, Durability Longevity
- Parallel link loading design
- Self-checking and self-centering
- No bumpers or check-rods
- Cells are hermetically sealed
- 65,000# minimum capacity cells
- 3/8' Diamond deck plate
- Concrete and steel deck designs are offered
- Pit or above ground designs are available
- Platform sizes range from 10 - 120' lengths, with widths from 8' to 12'
- Standard overall height is 15 3/8' for steel decks and 15' for concrete decks; lower heights are possible
- Scales have a concentrated load capacity (CLC) of 90,000# as tested and certified by NTEP
- Gross capacities range up to 200,000# and are graduated in 20# increments

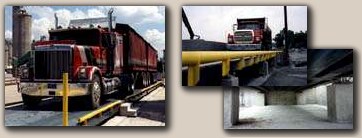

Flat Top II Truck Scale
 Emery Winslow proudly presents Flat Top II, a second generation of the revolutionary Flat Top truck scale introduced several years ago. New design improvements in the platforms and load cells result in higher capacities and longer warranties making this computer-designed low profile truck scale a truly incomparable scale. No other truck scale guarantees you service and satisfaction like Flat Top II.
- NTEP Approved
- Tubular Low Profile Weighbridge
- Free Floating Bridge Design
- Platform Robot Welded, Computer-designed
- 75,000 lb. Stainless Steel Grade 304 Load Cells
- Heaviest Load Cells in the Industry
- Each Platform Shipped Assembled
|
|
- No Electronic Apparatus On Or Under The Weighbridge
- Easily Relocatable
- Meets or Exceeds NIST H-44 Regulations
- Absolutely Immune and Safe in Hazardous Environments
- Temperature Range: -50 degrees F to 200 degrees F
- Radio Frequency Interference (RFI) Immunity
|
SURVIVOR� Truck Scales The Toughest Truck Scales on Earth! by: Rice Lake Weighing Systems
Before Rice Lake began designing the SURVIVOR� Series Truck Scales, they took a long, hard look at what customers really expect from a truck scale. They determined which needs were being met, which weren�t, and set their goals accordingly.
Rice Lake found that it took a little more than they originally thought. Spent more time on engineering, a little more work, and a little more steel. But now they can say, "take a look" and compare the SURVIVOR to the rest. They think you'll agree it was well worth the effort. That�s just the way Rice Lake Weighing Systems does business! A little more work on our end, a lot more value on yours.
Contact Weigh-Tec for more information on the complete Survivor Truck Scale Series from Rice Lake Weighing Systems so we can assist you with the proper selection to meet your specific needs and requirements.
Combo Truck and Rail Scale
|
