Technical Specifications Summer 2008
All equipment is PAT tested before leaving for an event, and has red and white insulation tape on to identify it as mine.
There are a few
pictures of the equipment, and these can be found after the description.
However, I have recently been upgrading and changing my stock, so the pictures
are getting out of date!
Take me to:
Stage Lanterns
All Lanterns have a Hook
Clamp, Safety Bond, and are fitted with 15A round pin plug.
Fresnels

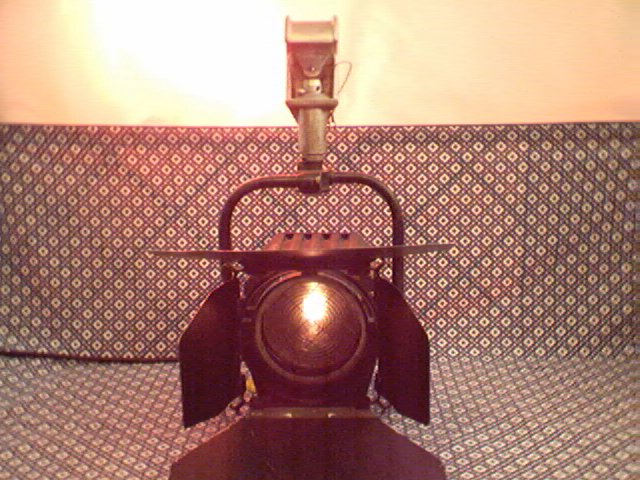

2 x Ianiro “Polaris”, 1,000W, No Colour Frames but both have Barndoors.

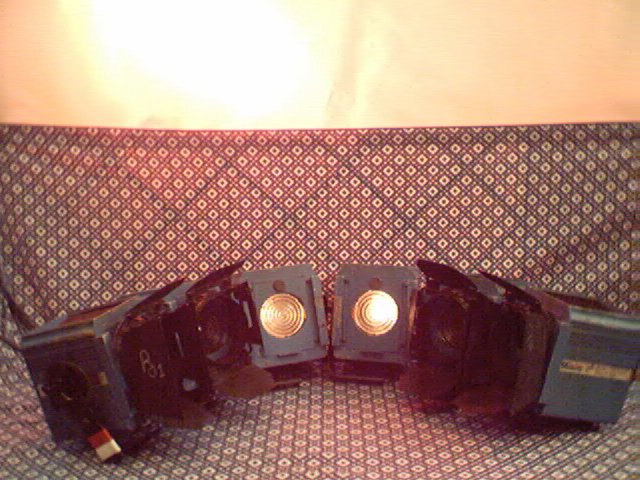

2

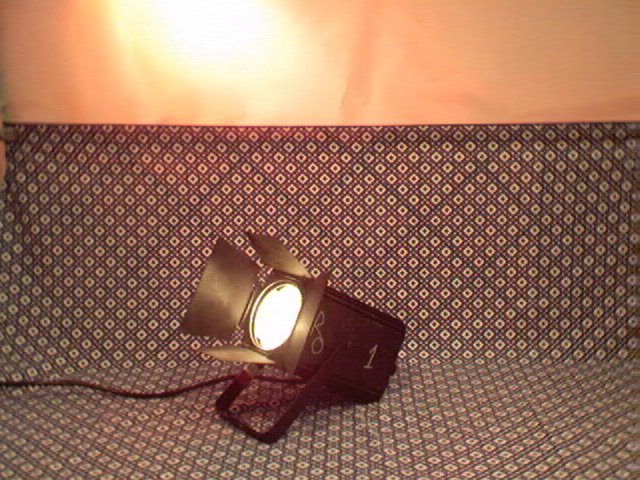

x CCT “Minuette”, 500/650W, Colour Frame and
Barndoors.
1 x
2 x
6 x
1 x
8 x Outdoor Floods, 500W, 4 in Black, 2 in White, and 2 in Black are
paired, with a 16A plug.
Profiles
1 x Selecon “ZS1200 N 8-16”, 1000/1200W.
2
x
1 x
Small
selection of Gobos, for above, and other lanterns.

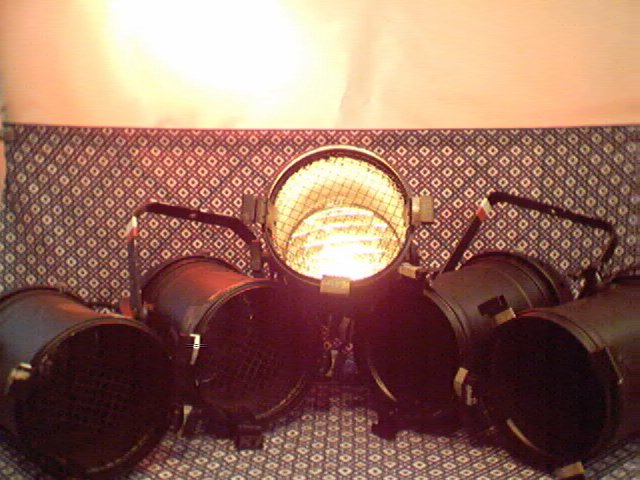

Parcans
5
x “Par64”, 1,000W, with Colour Frames.

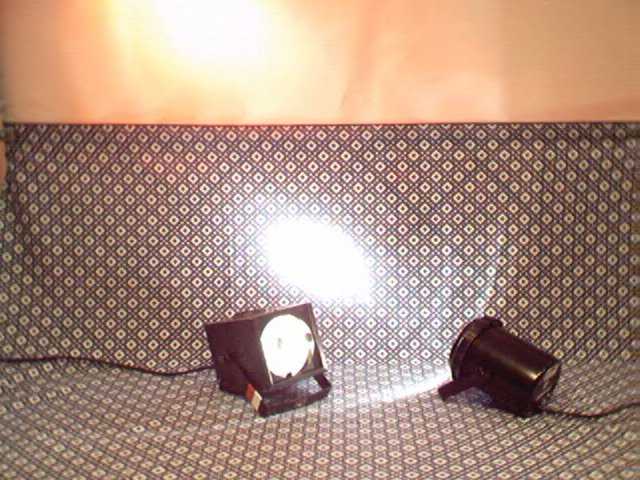

12
x “Par36”, or “Pinspot”.
2
x “Par16”
DMX Lanterns
These come with a 13A plug.
2
x Martin “
4 x Stairville
“

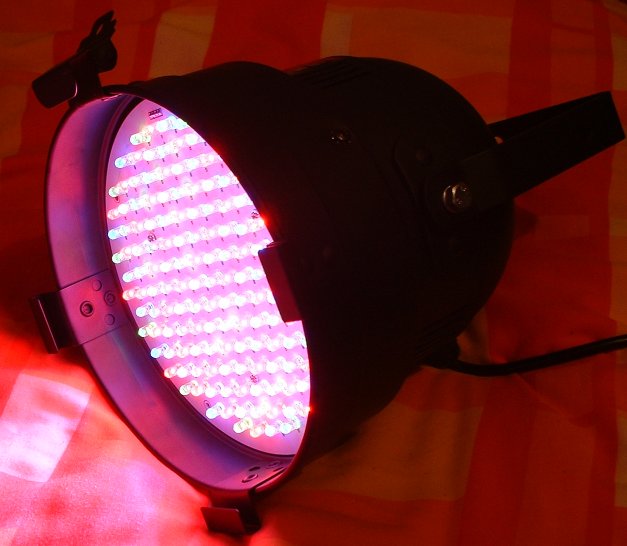

6 x Eurolite
“RGB LED PAR56”,
using LEDs, almost any colour can be created.
Disco Lanterns
These come with a 13A plug.

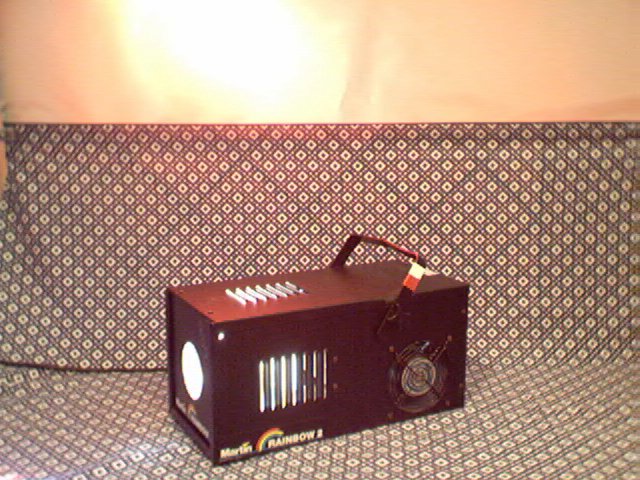

1 x Martin “Rainbow 2”, which produces multicoloured blocks of light,
rotating to music.
1 x Soundlab “Ravedancer”, which produces multicoloured blocks of light, rotating and moving to music.
1 x Geni “Wild Blaze”, which produces multicoloured blocks of light, rotating and moving to music.
1
x Geni “XTC”, which produces multicoloured blocks of light,
rotating and moving to music.

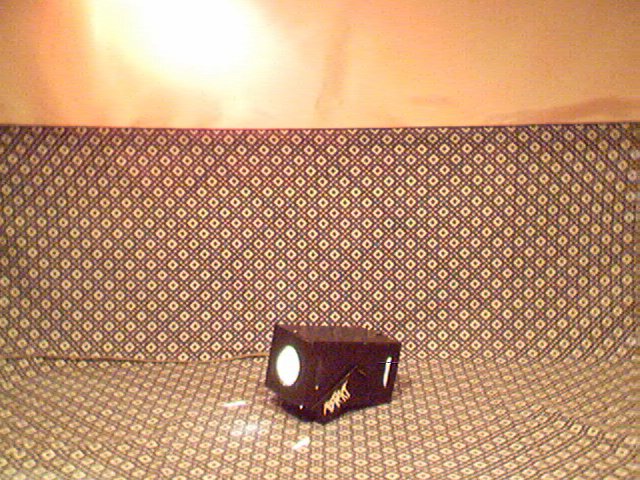

1 x Abstract mirror light, which produces multicoloured blocks of light,
static.
1
x Acme “Disco Inferno”, which produces flame effect, with speed control.

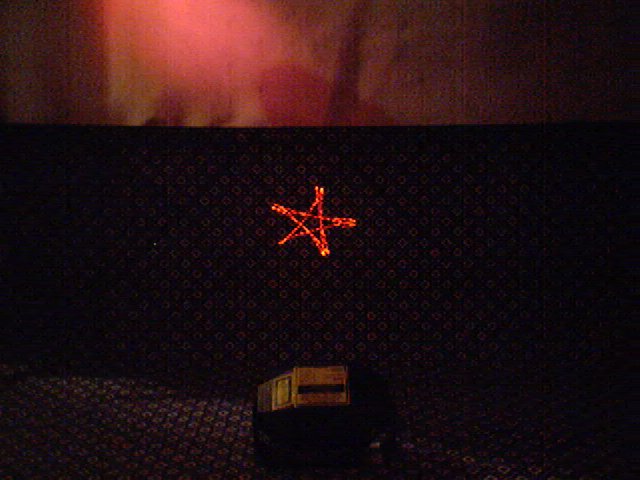

1 x

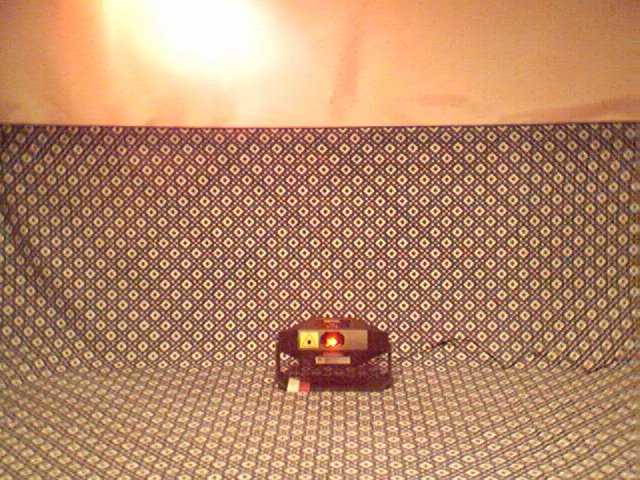

Botex “Laser Crab LS-5”, laser light which
produces 16 patterns that can change with the music.

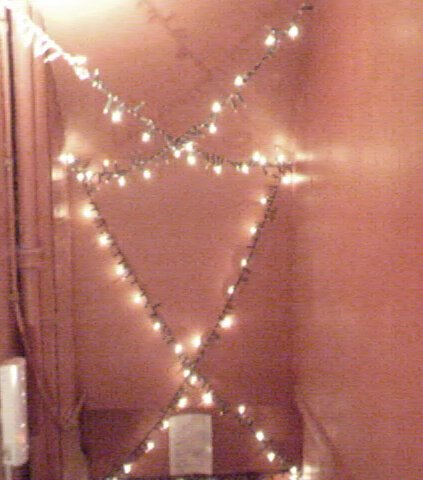

1 x
Rols “Ropelight”,
400 Clear lamps in a string, Disco 8 pin Plug.
1 x
Rols “Lightbox”,
4 Coloured lamps in a box, 2 Disco 8 pin Sockets.

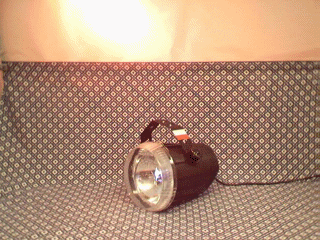

1 x
SoundLabs “Midi Strobe”, PLEASE NOTE THAT
IT IS NOT CONTROLLED BY
1 x 20cm DIA Mirror Ball, with 3 rpm Motor.
1 x 40cm DIA Mirror Ball, with 2 rpm Motor.
Dimmers and
Controllers
Please note that I have fitted a 13A plug on all dimmers and controllers.
These are fitted with a 13A fuse, so the total load on a dimmer pack must not go over 13A or 3,000W.
I can convert some of them to other forms
of plugs, for example a 32A CEEform if required.
Dimmer
& Demux Unit

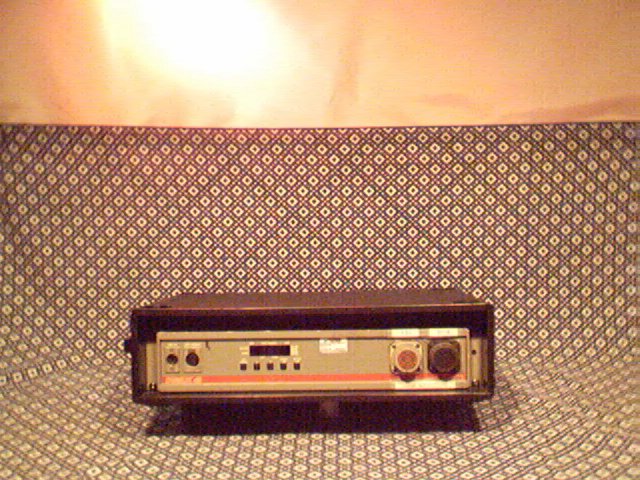

1 x Zero88 “Demux 48”, to control dimmers with one of the DMX
controllers below.

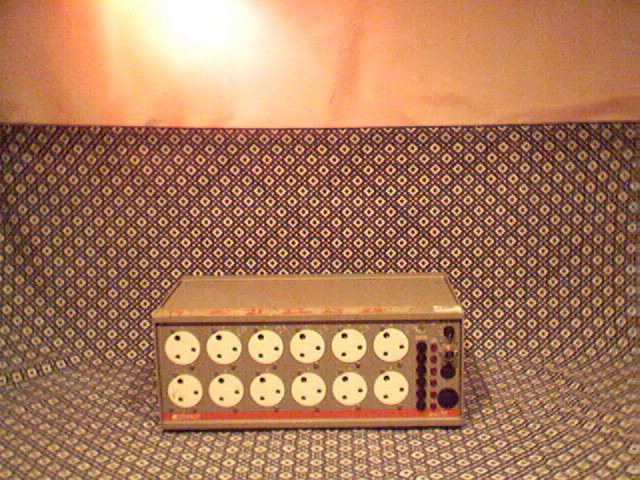

1 x Zero88 “Betapack1”, 6 channels with two sockets each, 15A outputs, 8
pin din control.

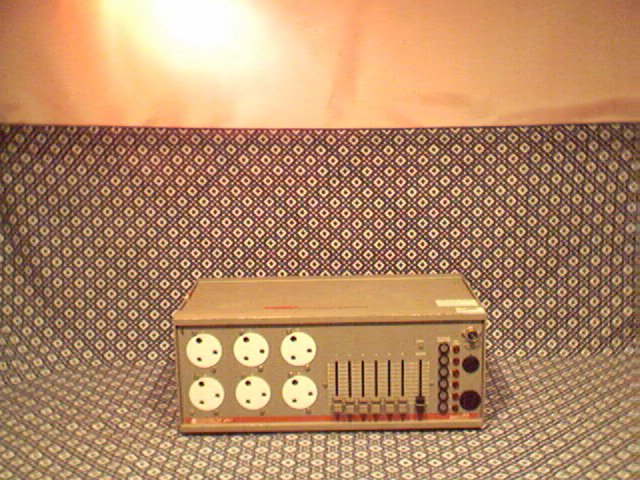

1 x Zero88 “Betapack1+”, 6 channels with local
control, 15A outputs, 8 pin din control.
1 x Zero88 “Betapack2”, 6 channels with two sockets each, 15A outputs, DMX or 8 pin din control.

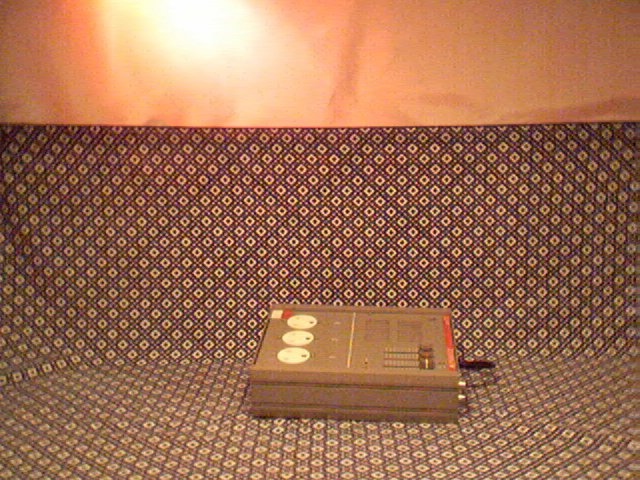

1 x Zero88 “Alphapack”, 3 channels with local
control, 15A outputs, 8 pin din control.
2 x Pulsar “Minipacks”, 3 channels with two IEC
sockets each, 8 pin din Pulsar control.
1 x Mode “SD2500” 1 channel, max load is 2,500W, local control only, 15A
output.
Controllers
1 x LSC “Axiom 24/48”, 24/48 channel Lighting Control Desk, with floppy
disk storage.
1 x NJD “SC-4000i” Disco Controller, 4 channels, Speed and Sound control,
Bulgin Disco 8 pin out.
Lighting Cables, Grelcoes, & Converters
40
x
Various lengths of Temperature Resistant
Sleeve (TRS) 15A cable, from 1.2 to 15.1 metres.
1 x 15m 5 pin DMX cable.
1 x 10m 5 pin DMX cable.
1 x 6m 5 pin DMX cable.
1 x 3m 5 pin DMX cable.
3 x 2m 3 pin DMX cable.
6
x 0.5m 3 pin DMX cable.
1 x pair of DMX 5 to 3 pin converters.
2 x DMX Terminators, with status LED, one has 5 pins, the other has 3
pins.
4 x Various lengths of long TRS 16A cable.
1 x Long length of
Bulgin 8 pin Disco cable.
10 x 15A
Grelcoes, various styles.
3 x 15A
Trelcoes.
2 x 13A to 15A converter.
4 x 15A to 13A converter.
2 x 13A to 16A converter.
2 x 16A to 13A converter.
8 pin din
control cables
2 x 10m extension leads,
these are joined together at the sockets, but are separate leads from there.
2 x long extension leads.
1 x long jumper.
2 x short jumper.
2 x 37pin Socapex (Demux output) looms,
mostly wired for zero88 dimmers, but 12 channels wired for Pulsar dimmers.
1 x 10m 37pin Socapex extension lead.
Microphones
2 x Shure “SM58”.
2 x Samson “S11” (equivalent to “SM58” above).
1
x Realistic “600 Ohm”.
2 x Audio-Technica “Pro 37R”, Unidirectional Condenser Microphone.
1 x
Behringer “ECM800” reference Mircophone for the DSP
8024 below.
1 x Sennheiser “e815” Microphone.
1 x t.Bone “EM 9900” Shotgun Microphone.
2
x Peavey “PVM 480” Cardioid Electret
Micriophone.
Foam windshields are available for all above microphones.
Radio
Microphones
1 x JTS “Mh-950” Handheld Radio Microphone, 841-865MHz.
1 x
Sennheiser “eW101” XLR Transmitter (requires another Mic), 838-870MHz
1 x Trantec “S2000M”, Handheld Radio Microphone, 173.8 MHz.
Direct Inject
Boxe
1 x Behringer “ULTRA-DI
DI20” 2 channel DI box.
3 x Passive Direct Inject
Boxes.
Headphones
1 x Beyer Dynamic “DT100”.
1 x Sennheiser “eH1430
Evolution”.
1 x Sennheiser “HD497”.
1 x
Goodmans “Pro CD 9007”, Stereo Cordless
Headphones, 100m range.
Speakers

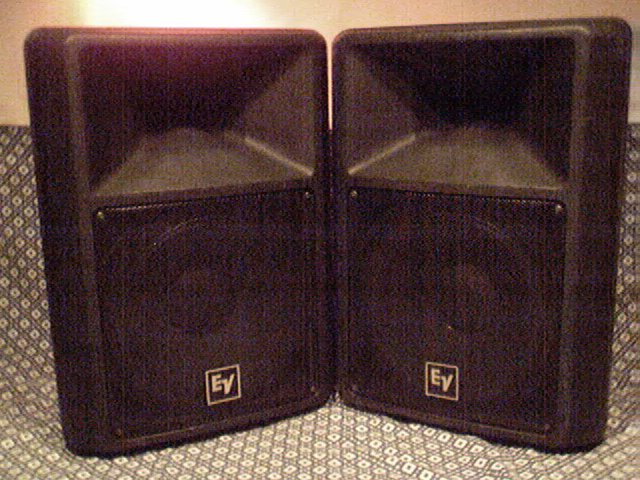

2 x EV “SXA100+” powered speakers, which can be used with
just a mic! They look exactly like the SX-200’s
below.
1 x EV “SBA750” This is a 750W stereo Sub Bass unit,
for use with the SXA100+ speakers in larger venues.
2 x EV “SX-200”, 300W each.
Both pairs of SXA100+ and SX-200 can be flown in their dedicated brackets, which are also available.

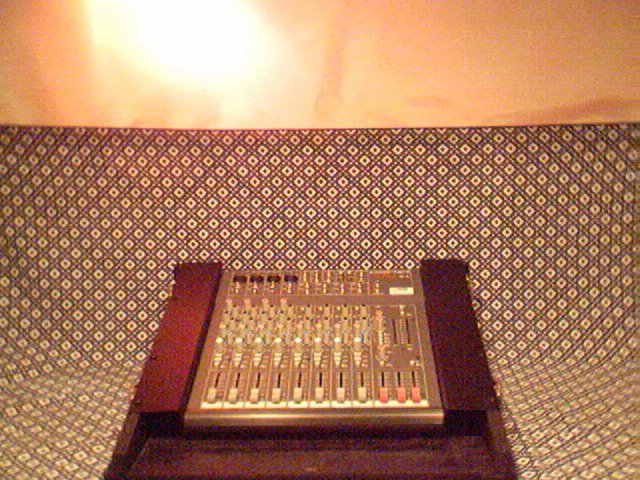

Mixing Desks
1 x Allen and Heath “Mix Wizard 14:4:2”, 10 Mic channels with 2 swept mids, 2 stereo channels, 4 groups, 6 auxes.
1 x Sountracs
“Topaz 12:4”, 12 channel mixing desk, 4 Mono and 4 Stereo channels.
Plackback Rack 1 (New)
1 x Thon “Rack Lite” 5W Rack Light.
1 x Sony “MDS-JE520” Minidisc Deck.
1 x
Marantz “PMD-321” CD Deck.
Unit contains all leads needed to get to and from mixing desk.

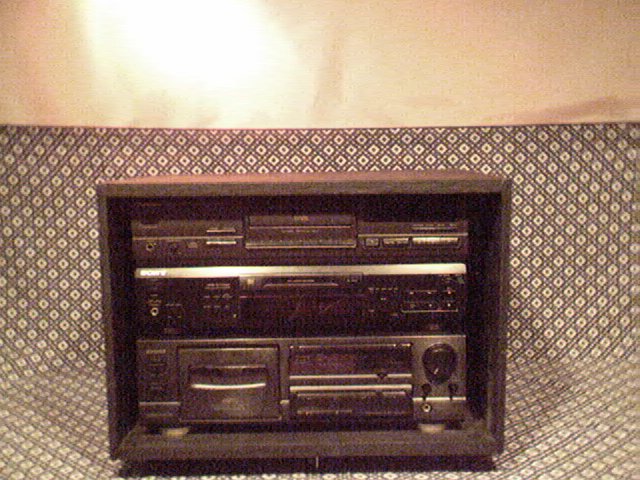

Playback
Rack 2
(*)
1 x Sony “MDS-JE330”
Minidisc Deck.
1 x Sherwood Technics “SL-PG590” CD Deck.
1 x Aiwa “AD-F450” Tape
Deck.
Unit contains all leads
needed to get to mixing desk.

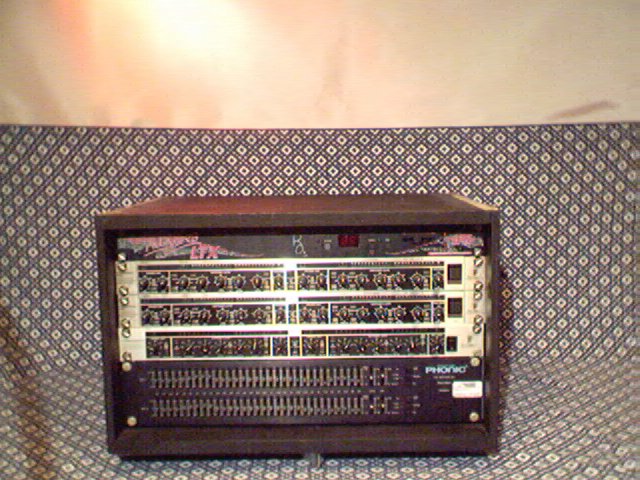

Control
Rack 1
(*)
1 x Thon “Rack Lite” 5W Rack Light.
1 x ART “LTX”, 16 bit
Reverb Unit.
2 x Behringer “Composer
Pro”, Compressor/Limiter/Gate, 2 channels each.
1 x Behringer “Ultragraph
Pro FBQ 3102” 2 channel 31 Band EQ.
Unit contains all leads
needed to get to mixing desk.
Control Rack 2
1 x Behringer “Composer”, Compressor/Limiter/Gate, 2 channels.
1 x Behringer “ULTRAGRAPH DSP8024” 2 channel 31 Band EQ.
Amp
Rack

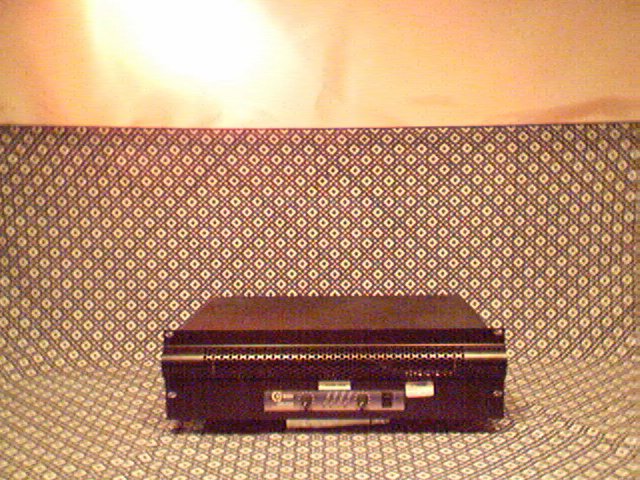

1 x C-Audio “GB-402”, 2 channels Amplifier, 400W per channel.
Hard
Disk / ADAT / Multitrack recorder.
1 x Fostex “D-90”, record and playback upto 8 tracks for up to 3 hours in CD quality audio.
Loose Items
Portables
1 x Sony “Net MD MZ-N710”, Minidisc Recorder, with USB computer link.
1 x Sharp “MD-MT16”, Minidisc Recorder.
1 x Panasonic “SL-S208”, CD Player.
1 x Sony “WM-EX302”, Tape Player.
Radio Tuner
1 x JVC “T-GXIL” Stereo Tuner, FM Stereo/Mono, MW, LW.
Sound Cables
1 x 30m, 16 send / 4 return XLR
Multicore, on
Drum.
1 x 15m Long XLR lead.
6 x 10m
Long XLR lead.
14 x Various other XLR leads.
Various hook up leads.
2 x 12m 5mm2
Speakon-Speakon,
Speaker Lead.
1 x 7m 5mm2
Speakon-Speakon, Speaker
Extension Lead, with coupler.
Induction Loop
1 x Signet "PDA200E" Induction Loop Amplifier with dedicated loop cable. Makes your event DDA compliant!
Keyboard
1 x “MIDISmart”,
37 mini-keys,
1 x Midiman
“MIDISPORT2x2”, 2
DVD Player
1 x Cyber Home “ADL -
528”, DVD player, with 5.1 or Stereo Audio output; Coaxial and Optical Digital
outputs; RGB / Scart
/ Composite Video output. Region 2 DVDs only.
Outdoor Kit
1 x
Rols “Cablecover”
60m, Hides cables in grass! Includes pins to hold it down.
1 x E-ZUP “Dome”, Outdoor shelter, in Blue.
1
x mesh sided tent to house speakers.
Smoke Machines
1 x
Antari “Z-800”, with either normal remote
or timer remote. Control also possible via XLR cables.

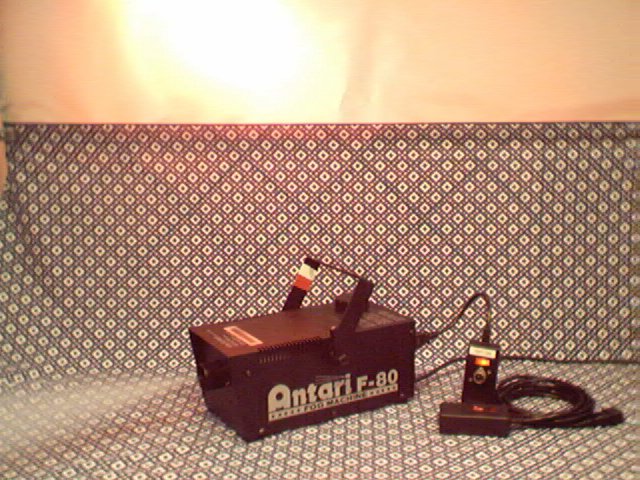

1 x
Antari “F-80”, with 3m remote control.
1 x
Antari “F-80z”, newer model of above in
silver, with 3m remote control.
Stands
2 x
2 x
LightingTec Stand, for Lighting, in
Silver, with “T” bar for 4 lanterns.
1 x
LightingTec Stand, for Lighting, in Black,
with “T” and “L” bars for up to 7 lanterns.
3 x 90cm, 48mm DIA, Scaffolding bars “T-bar”, for Lighting.
2 x 48mm DIA Scaffolding bars and flying brackets,
one is 1m90cm, the other
2m25cm.
4
x Various, for the EV
Speakers.
7
x Microphone, 4 tall (2 Chrome, 3 Matt Black) 2 short (Matt Black), all
with boom arms.
3
x Keyboard, Matt Black
1 x Music, Matt Black.
Communications
2 x Motorola “T5422” Two way PMR radios, 3 mile range, with
charging station.
2 x
Motorola “T5522” Two way PMR radios, 3 mile range, with charging station.
4 x Realistic “TRC-506” Two way headset radios, 49 MHz, 1/4 mile range.
1
x Home-made signaling system, using 1 XLR cable.
PAT Testers
1 x Seaward “Europa”.
1 x Seaward “IT1000”.
1 x Welch
Allyn “Scanteam 3400 CCD” barcode
scanner.
