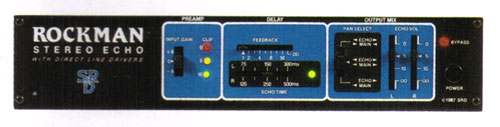

Rockman Stereo Echo
This is perhaps one of the most desirable modules. The Rockman stereo echo is highly sought after and is considered by many to be one of the finest delays you can buy. Like the other modules it's beauty lies in it's simplicity.
The delay can be set to a maximum of 500ms. A curious feature of the unit is that the delay times are not exactly 1/2 of each other. The ratios were set like this so the delay would not step all over the mix.
To create a natural sunding delay there is a 6dB per octave rolloff in the feedback circuit. This means for every repeat the highs get softer and softer. This simlates the way a tape echo works.
|
