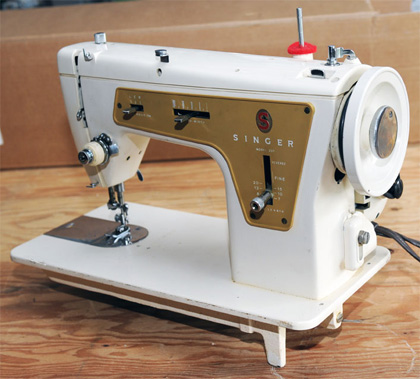

Singer 237 Without Feed-Dog Lowering

The image above shows the Singer 237 without capability to lower the feed dogs. We are grateful To Rose who supplied us a part for this machine so we could make it operational.

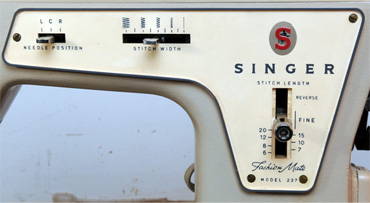

Three Controls on Singer 237

The Singer Fashion Mate Model 237 is a nice machine with little flair. It has built-in zig-zag capability and has a needle centering adjustment, which is helpful when a quilter needs a "scant" 1/4-inch seam allowance.

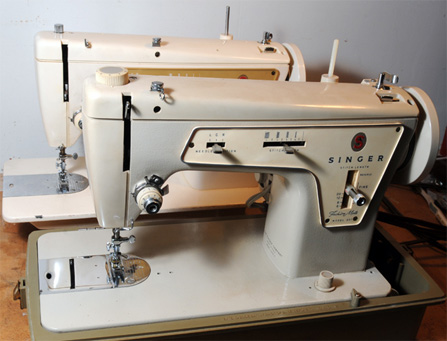

Two Versions of Singer 237

Singer 237 was made in two versions, the latter version having a knob for dropping the feed dogs and a knob for regulating the pressor foot pressure. The front machine is one of these. The image above shows the different pressure foot adjustment as well as the position of the tensioning used for bobbin winding.

There is a slight difference in their color and plastic plate where the controls protrude. Speaking of plastic--the removable end plate and top are plastic but the remainder of the machine is heavy metal.. Serial number of the back machine is MD 002029 and does not have feed dog lowering capability.

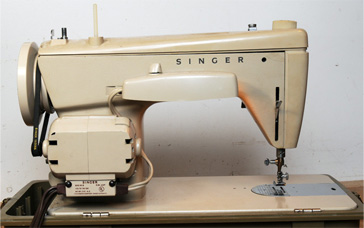

Rear View of Singer 237

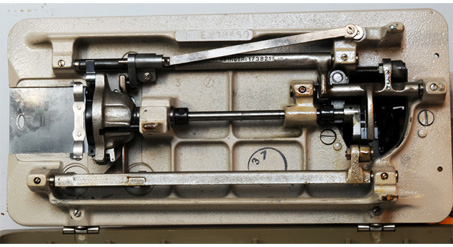

Underside of Singer 237

There are no plastic gears here. There is little that can go wrong with the machine if it is kept lubricated and clean. There are gears on the topside which require grease and relatively difficult to reach.

Satin Stitch

The WeFixIt and VintageSingers Yahoo! groups hold the 237 in high regard, that is, high regard compared to its original price. This basic straight stitch and zig-zag machine is reported to do one of the finest satin stitches in its category. The image above shows our attempt to show a satin stitch. After setting the stitch length to Fine, the Zig-Zag lever was moved from wide to narrow in steps. A piece of foundation was used beneath the fabric.
