Film & Ceramic Capacitors

Film and Ceramic Capacitors TO INDEX

click on the pictures to view the enlarge version

To order just send me an email. I will get back to you as soon as possible. All price quoted are in Singapore Dollar. Please contact me for pricing of larger quantity.

Film a variety of quality film capacitors

ERO

WIMA

Philips (BC)

Others - Polystyrene large value

X2 capacitors - great for filtering and suppressing interfaces from switching of appliances like lighting.

SMD X7R ceramic capacitor - for decoupling in power supply in digital circuit

Film

ERO

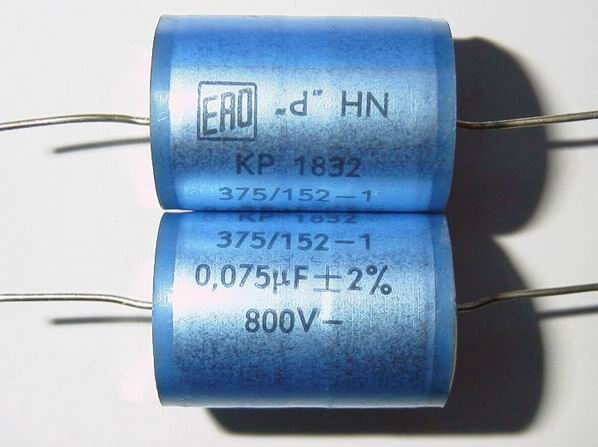

	KP1832 / 0.075uF / 800V / 2% - Polypropylene Film and Foil Capacitors Size (DxL): 21 x 31 mm Note: The leads of this capacitor is about 20mm, longer than the radius of the capacitor. Highly recommended by www.steinmusic.de to replace the 0.1uF coupling cap. Price: $7.50 per piece.

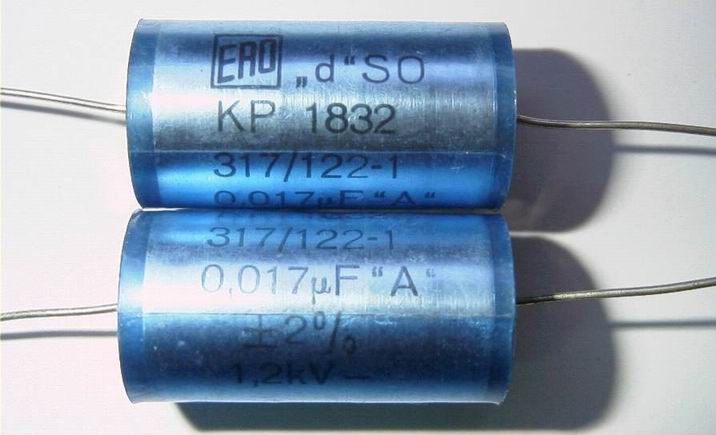

	KP1832 / 17nF / 1200V / 2% or 5%- Polypropylene Film and Foil Capacitors Size (DxL): 17 x 32.5 mm Price: $4.10 per piece.

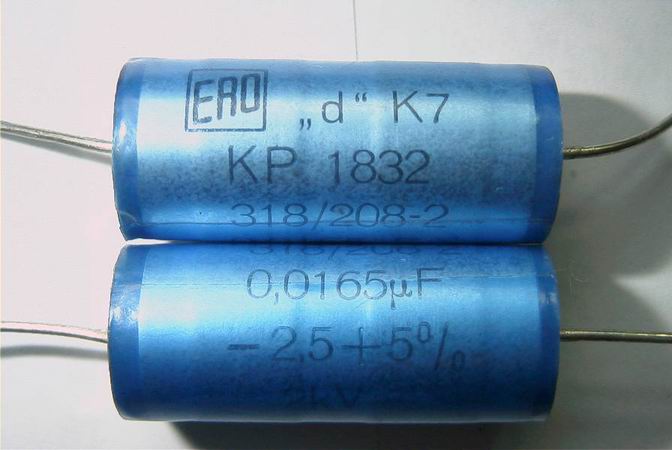

	KP1832 / 16.5nF / 2000V / -2%+5% - Polypropylene Film and Foil Capacitors Size (DxL): 14 x 32.5 mm Price: $4.60 per piece, limited stock.

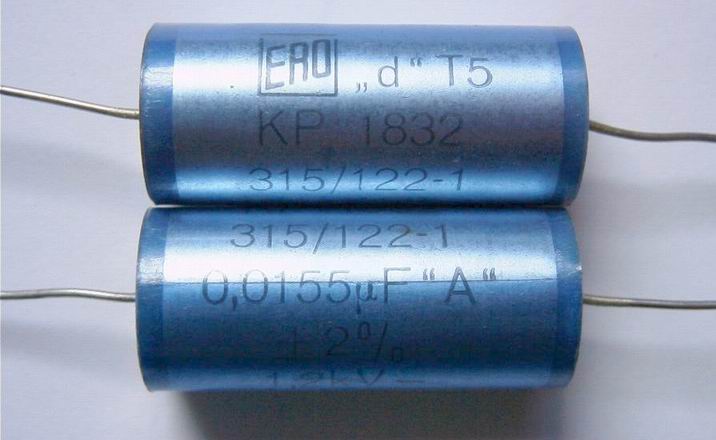

	KP1832 / 15.5nF / 1200V / 2% - Polypropylene Film and Foil Capacitor Size (DxL): 14 x 32.5 mm Price: $4.00 per piece, limited stock.

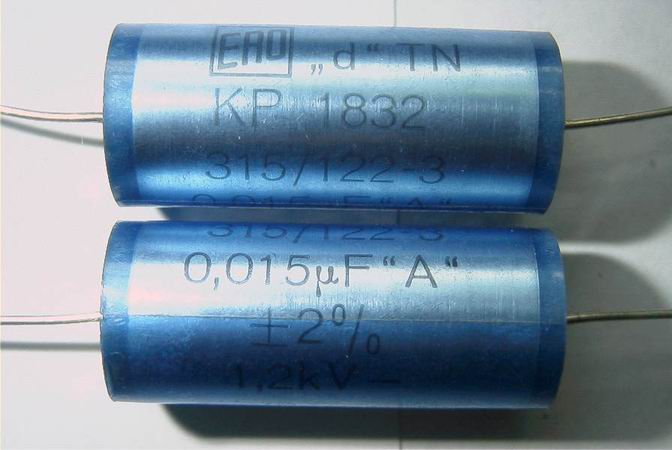

	KP1832 / 15nF / 1200V / 2% - Polypropylene Film and Foil Capacitor Size (DxL): 14 x 32.5 mm Price: $4.00 per piece, limited stock.

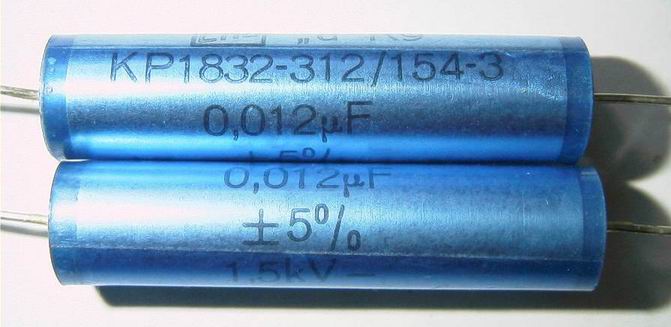

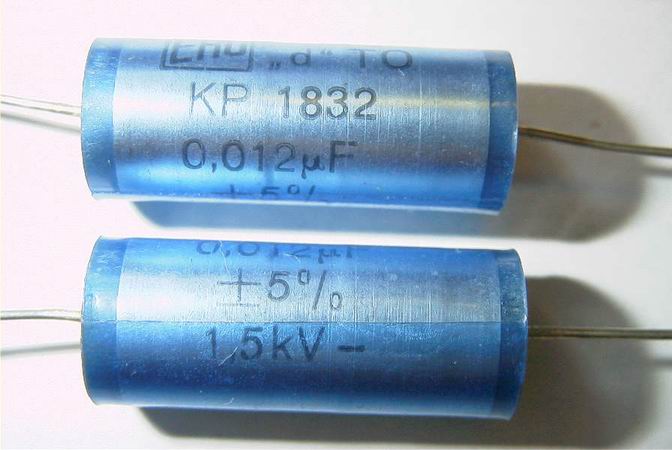

	KP1832 / 12nF / 1200V / 5% - Polypropylene Film and Foil Capacitor Size (DxL): 10 x 42.5 mm and 10 x 27.5 mm (for case dR9) Price: $3.00 per piece.

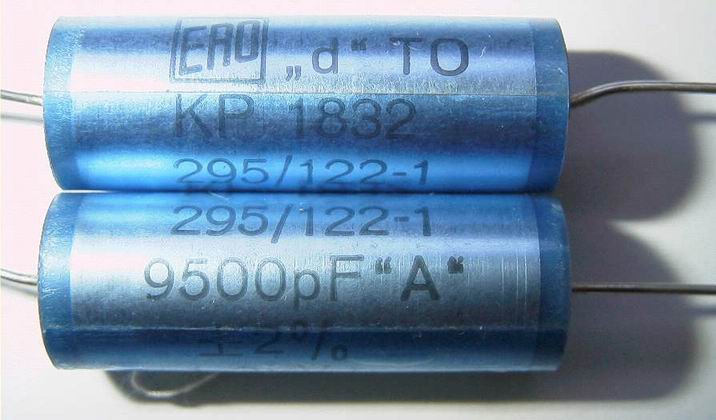

	KP1832 / 9.5nF / 1200V / 2% - Polypropylene Film and Foil Capacitor Size (DxL): 11.5 x 32.5 mm Price: $3.00 per piece, buy 10 pieces and get 1 extra free.

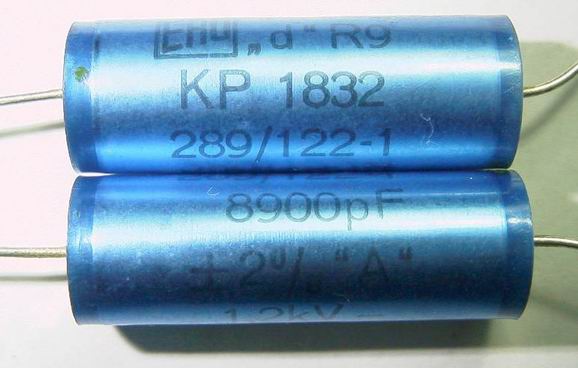

	KP1832 / 8.9nF / 1200V / 2% - Polypropylene Film and Foil Capacitor Size (DxL): 11.5 x 32.5 mm Price: $2.80 per piece.

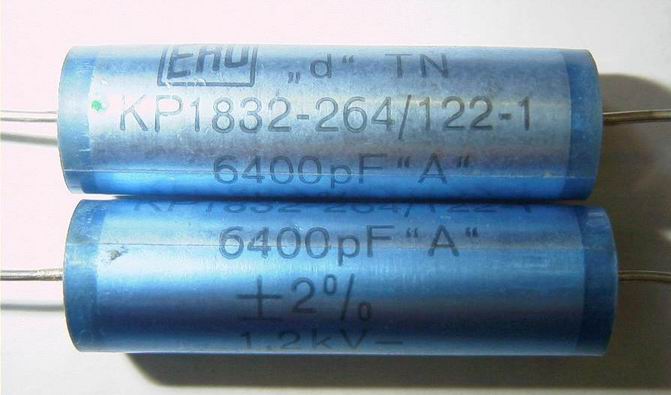

	KP1832 / 6.4nF / 1200V / 2% - Polypropylene Film and Foil Capacitor Size (DxL): 10 x 32.5 mm Price: $3.00 per piece. Very limited stock.

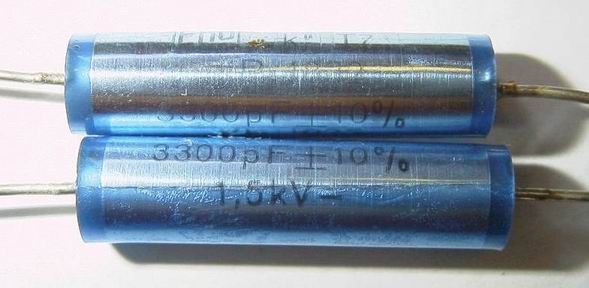

	KP1832 / 3.3nF / 1500V / 10% - Polypropylene Film and Foil Capacitor Size (DxL): 6.5 x 27 mm Price: $2.00 per piece.

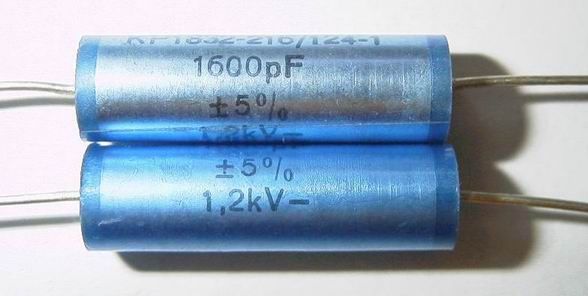

	KP1832 / 1.6nF / 1200V / 5% - Polypropylene Film and Foil Capacitor Size (DxL): 7.5 x 27 mm Price: $2.00 per piece.

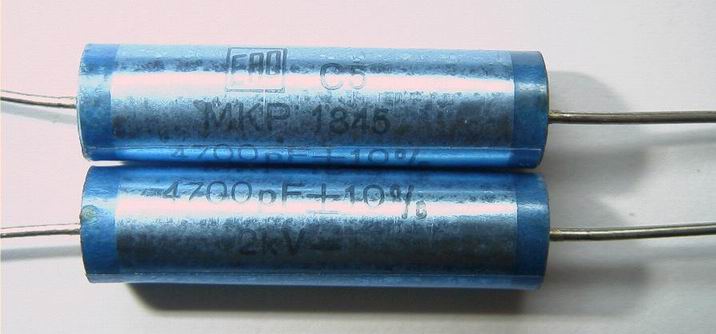

	MKP1845 / 4.7nF / 2000V / 10% - Metallised Polypropylene Film Capacitor Size (DxL): 7 x 32.5 mm Price: $2.60 per piece, limited stock.
	KP1836 / 11.6nF / 2000V / 3% - Polypropylene Film and Foil Capacitor Size (WxHxD): 31 x 22.5 x 12.5 mm Lead spacing: 27.5 mm Price: $3.50 per piece.
	KP1836 / 10.6nF / 2000V / 3% - Polypropylene Film and Foil Capacitor Size (WxHxD): 31 x 19.5 x 10.5 mm Lead spacing: 27.5 mm Price: $3.30 per piece.
	KP1836 / 1nF / 1600V / 3% - Polypropylene Film and Foil Capacitor Size (WxHxD): 18 x 10 x 5 mm Lead spacing: 23 mm Price: $1.00 per piece.

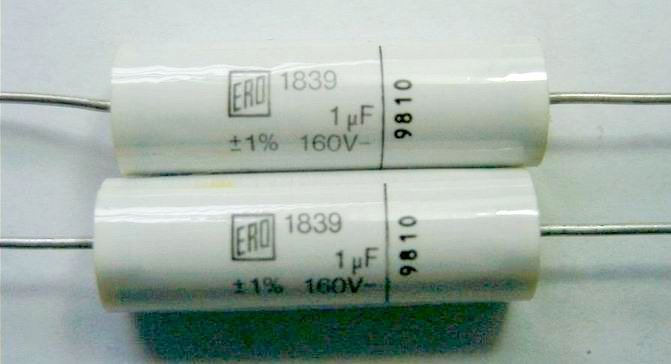

	MKP1839 / 1uF / 160V / 1% - Metallised Polypropylene Film Capacitor Size (DxL): 8 x 25 mm Price: $3.50 per piece.

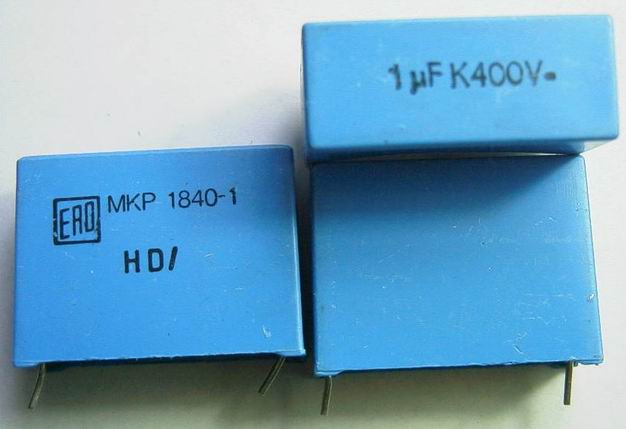

	MKP1840 / 1uF / 400V / 5% - Metallised Polypropylene Film Capacitor Size (WxHxD): 31 x 22.5 x 12.5 mm Lead spacing: 27.5 mm Price: $3.50 per piece.

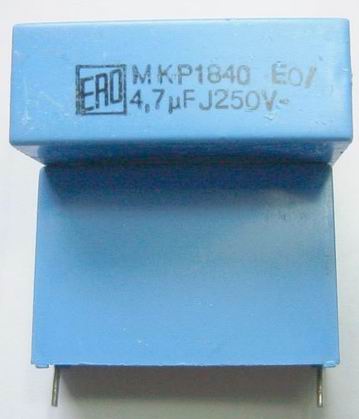

	MKP1840 / 4.7uF / 250V / 5% - Metallised Polypropylene Film Capacitor Size (WxHxD): 41 x 27.5 x 15 mm Lead spacing: 37.5 mm Price: $6.50 per piece. Very limited stock.
	MKP1841 / 14.1nF / 1600V / 3.5% - Metallised Polypropylene Film Capacitor Size (WxHxD): 26 x 15 x 7 mm Lead spacing: 22.5 mm Price: $1.50 per piece.
	MKP1841 / 12nF / 630V / 5% - Metallised Polypropylene Film Capacitor Size (WxHxD): 12.5 x 10.5 x 6 mm Lead spacing: 10 mm Price: $1.00 per piece.
	MKP1841 / 6.8nF / 1600V / 3% - Metallised Polypropylene Film Capacitor Size (WxHxD): 24 x 14 x 6 mm Lead spacing: 22 mm Price: $1.50 per piece.
	MKP1841 / 1.3nF / 2000V / 3% - Metallised Polypropylene Film Capacitor Size (WxHxD): 24 x 14 x 6 mm Lead spacing: 22 mm Price: $1.50 per piece.

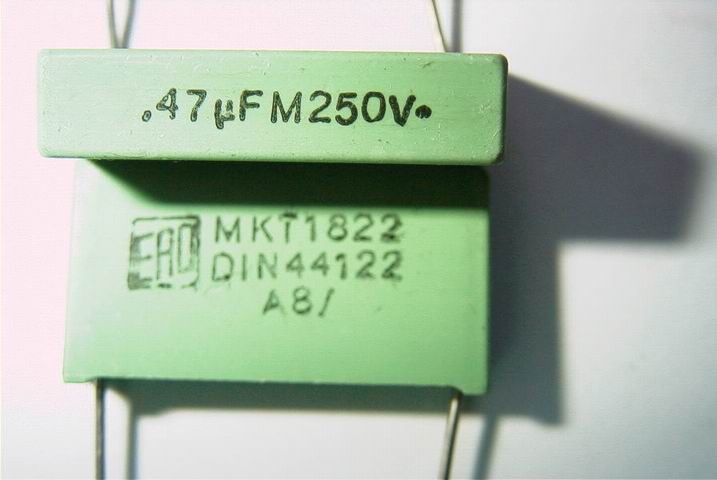

	MKT1822 / 0.47uF / 250V - Metallised Polyester Film Capacitor Size (WxHxD): 26 x 14 x 6 mm Lead spacing: 23 mm Price: $0.8 per piece.

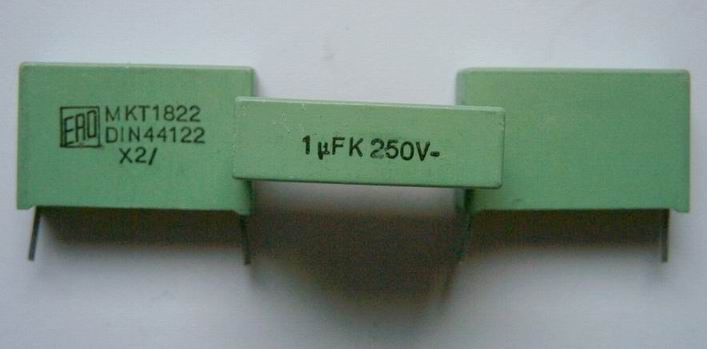

	MKT1822 / 1uF / 250V - Metallised Polyester Film Capacitor Size (WxHxD): 26 x 16 x 8 Lead spacing: 23 mm Price: $1.20 per piece, buy 10 pieces and get 1 extra free.

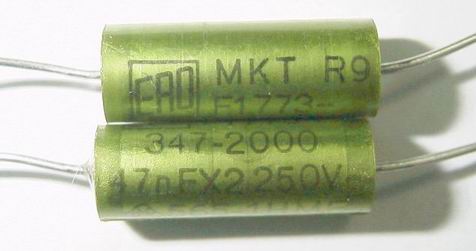

	MKT RN17773 / 0.047uF / 250Vac - Metallised Polyester Film X2 Capacitor Size (DxL): 8 x 25 mm Price: $3.50 per piece. Same function as the Rifa X2 cap.

back to the top

Wima (www.wima.de)

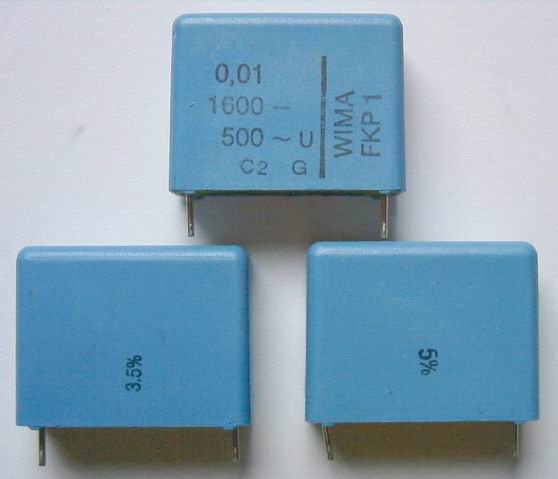

FKP1 / 10nF / 1600Vdc/ 500Vac / 3.5% or 5% - Polypropylene Film and Foil Capacitors

Size (WxHxD): 26 x 20 x 10 mm Lead spacing: 22.5 mm

Price: $2.20 per piece, buy 10 pieces and get 1 extra free.

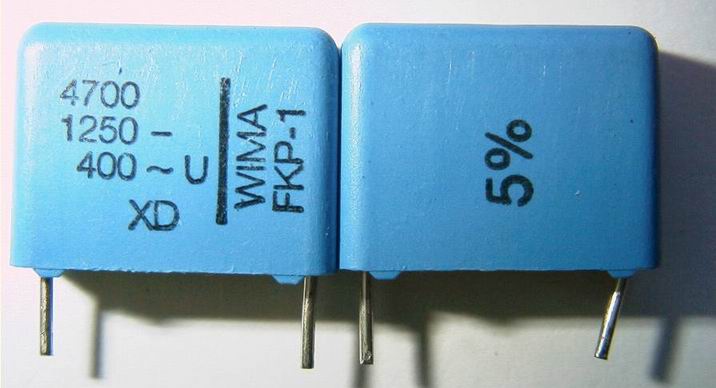

FKP1 / 4.7nF / 1250V / 450Vac / 5% - Polypropylene Film and Foil Capacitors

Size (WxHxD): 17.5 x 12 x 6.5 mm Lead spacing: 15 mm

Price: $1.50 per piece, buy 8 pieces and get 1 extra free.

MKP10 / 0.18uF / 160V / 5% - Metallised Polypropylene Film Capacitor

Size (WxHxD): 18 x 13.5 x 7.5 mm Lead spacing: 15 mm

Price: $1.80 per piece.

MKP10 / 0.22uF / 160V / 5% - Metallised Polypropylene Film Capacitor

Size (WxHxD): 18 x 13.5 x 7.5 mm Lead spacing: 15 mm

Price: $2.00 per piece.

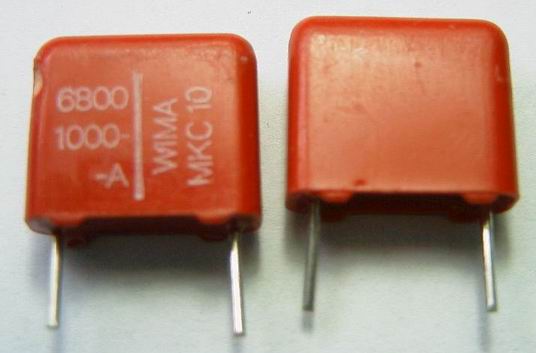

MKC10 / 6.8nF / 1000V / 5% - Metallised Polycarbonate Film Capacitor

Size (WxHxD): 13 x 11 x 5 mm Lead spacing: 10 mm

Price: $0.80 per piece.

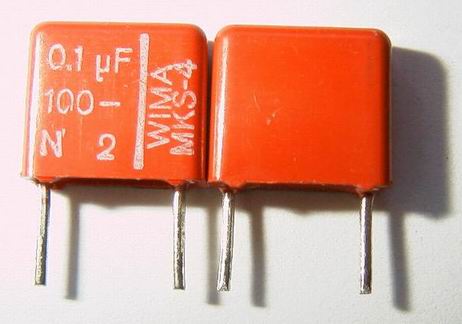

MKS4 / 0.1uF / 100V - Metallised Polyester Film Capacitor

Size (WxHxD): 10 x 8.5 x 3.5 mm Lead spacing: 7.5 mm

Price: $0.40 per piece, buy 10 pieces and get 1 extra free.

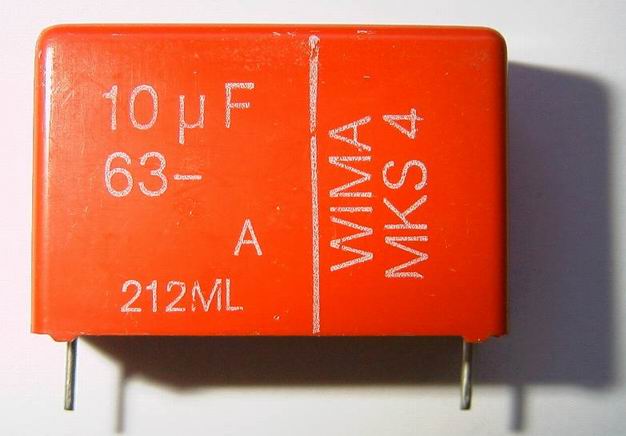

MKS4 / 10uF / 63V - Metallised Polyester Film Capacitor

Size (WxHxD): 31.5 x 20 x 11 mm Lead spacing: 27.5 mm

Price: $4.00 per piece.

back to the top

Philips (BC)

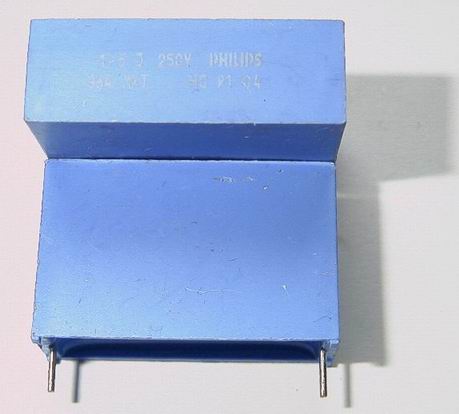

364 series 1.5uF 100V - Metallised Polyester Film Capacitor

Size (WxHxD): 30.5 x 19 x 10.5 mm Lead spacing: 23

Price: $1.00 per piece.

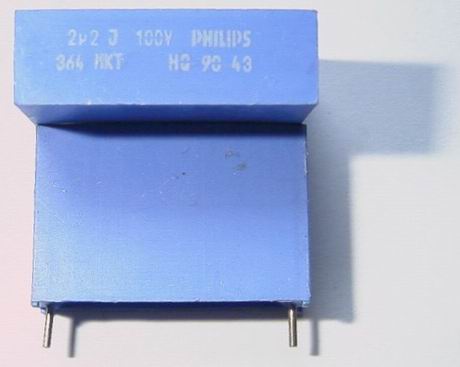

364 series 2.2uF 100V - Metallised Polyester Film Capacitor

Size (WxHxD): 25.5 x 16.5 x 8 mm Lead spacing: 28 mm

Price: $1.00 per piece.

back to the top

Others

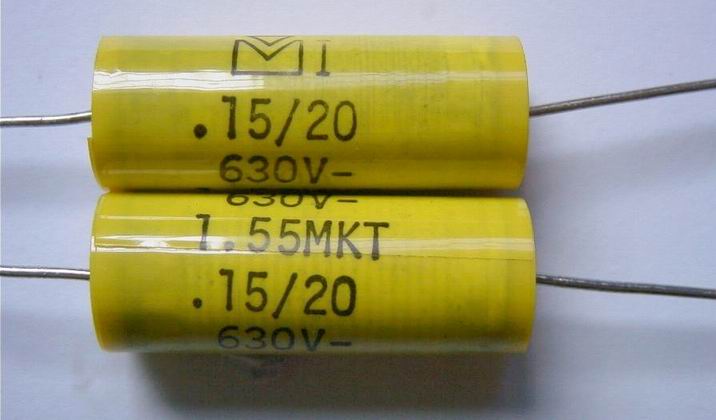

	0.15uF 630V - Metallised Polyester Film Capacitor Price: $0.80 per piece.
	1nF 600V or 160V - Polystyrene Film and Foil Capacitor Price: $0.50 per piece for the 600V and $0.40 per piece for 160V.

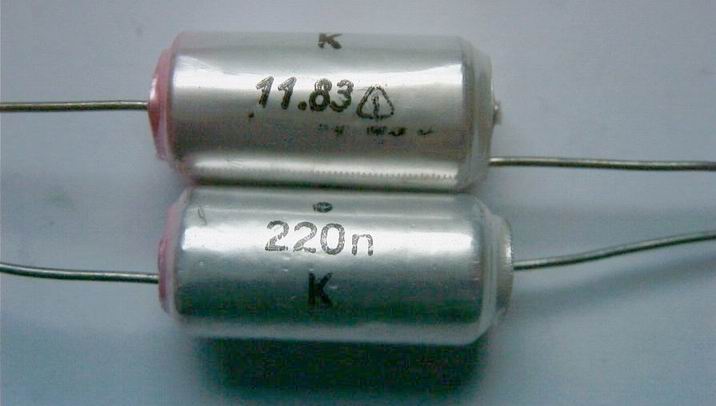

	Siemens 0.22uF 63V - Polystyrene Film and Foil Capacitor Price: $2.00 per piece.

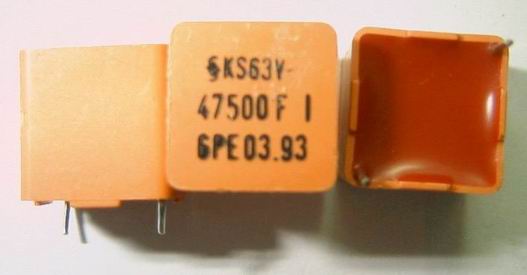

	Siemens 47.5nF 63V 1% - Polystyrene Film and Foil Capacitor Price: $1.50 per piece.

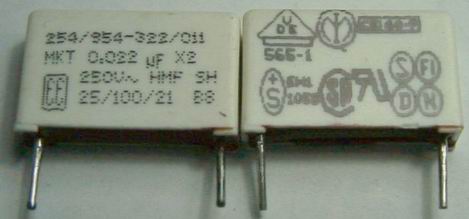

	EE X2 capacitor / 0.022uF / 250Vac Price: $0.80 per piece. Same function as the Rifa X2 cap.

back to the top

Rifa

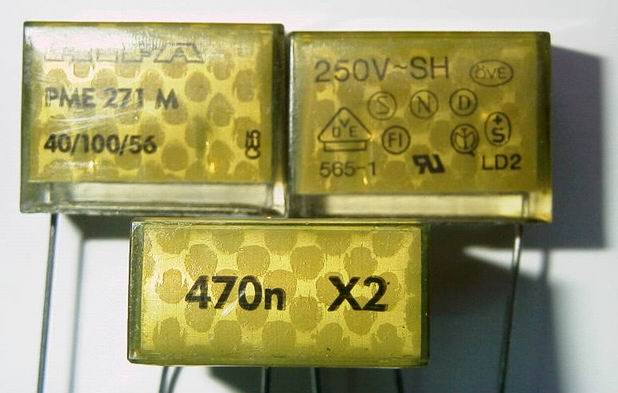

PME271M 0.47uF 250Vac - Metallised Paper X2 Capacitor.

"The highest possible safety regarding active and passive flammability. Excellent self-healing properties."

Size (WxHxD): 29.5 x 21.5 x 10.5 mm Lead spacing: 26 mm Datasheet / Application Note.

Application:

Line filter/suppression. If any of appliances (HiFi) are affected by switching of other appliances, like the sparks of the lightings starter while switching on, having one of this X2 capacitor across the starter greatly reduces the interferences. Great for diy quiet line filter which will reduce the floor noise, and you will hear more detail and a darker background from your audio system. Check out the installation guide.

Price: $2.00 per piece, buy 10 pieces and get 1 extra free. Please contact me for larger quantity.

RS's price $2.63 part number 210-544. Farnell's price $3+

PME271M 0.1uF 250Vac - Metallised Paper X2 Capacitor - Prrice : $1 per piece.

back to the top

Ceramics

AVX X7R SMD (Datasheet)

Application: Decoupling in Digital Circuit, CD players and DACs. Work best for paralleling Sanyo Os-con cap.

0.1uF 50V Case: 1206

Manufacturer Part Number: 12065C104KAT2A

Price: Lot of 15 pieces for $2.50. Buy 8 lots get one lot free. Please contact me for pricing of larger quantity.

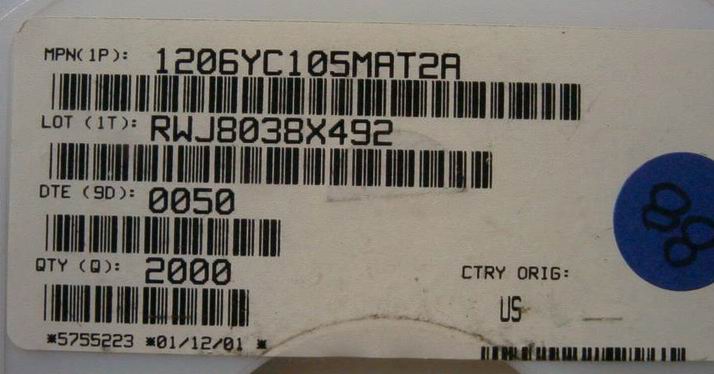

1uF 16V Case: 1206

Manufacturer Part Number: 1206YC105MAT2A

Price: Lot of 10 pieces for $3.00. Buy 10 lots get one lot free. Please contact me for pricing of larger quantity.

back to the top
