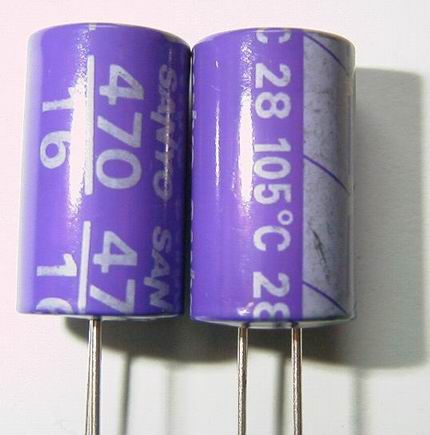

SA / 470uF / 16V (Data sheet)

Size (DxL): 12.5 x 22 mm               Lead spacing: 5 mm

Price: $5.50 per piece, buy 10 pieces and get 1 extra free. Please contact me for larger quantity.

Farnell price: $10.14 per piece. Farnell order code: 661144.

Application: Very good in power supply of digital circuit. Can be further improve by paralleling with SMD ceramics cap.

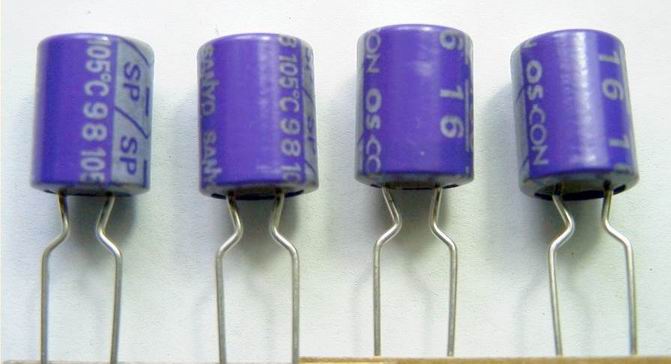

Size (DxL): 8 x 10.5 mm               Lead spacing: 3.5 mm

Price: $5.00 per piece, buy 10 pieces and get 1 extra free.
Please contact me for larger quantity.

Application:

The SP Series are perfect for designing around MPUs for computer equipment, audio etc. Very good in power supply of digital circuit. Can be further improve by paralleling with SMD ceramics cap.

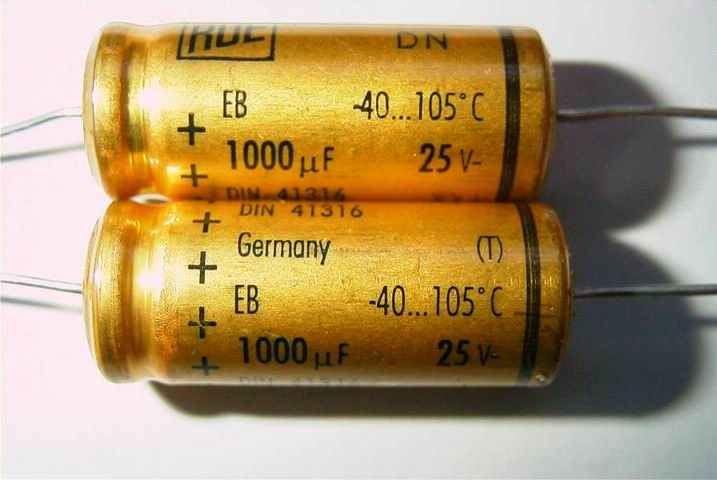

EB / 1000uF / 25V

Size (DxL): 12 x 30 mm

Price: $1.00 per piece

EG / 2200uF / 25V

Size (DxL): 16 x 39 mm

Price: $1.80 per piece, buy 10 pieces and get 1 extra free.

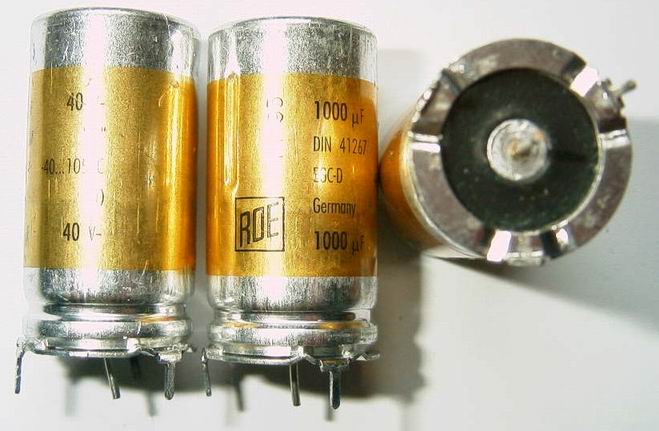

ECGD / 1000uF / 40V

Size (DxL): 21 x 40 mm

Price: $2.00 per piece, buy 10 pieces and get 1 extra free.

Note: 4 -pin connection

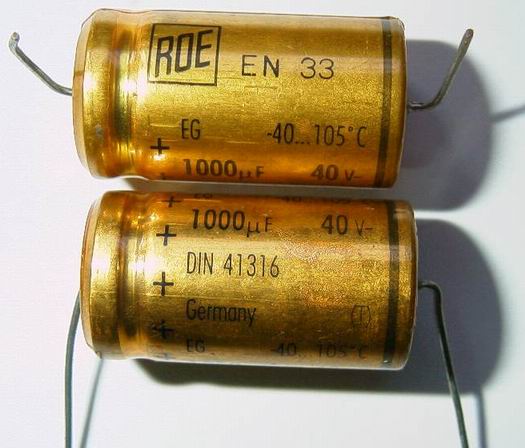

EG / 1000uF / 40V

Size (DxL): 16 x 39 mm

Price: $1.80 per piece

Note: lead length is about 3 cm

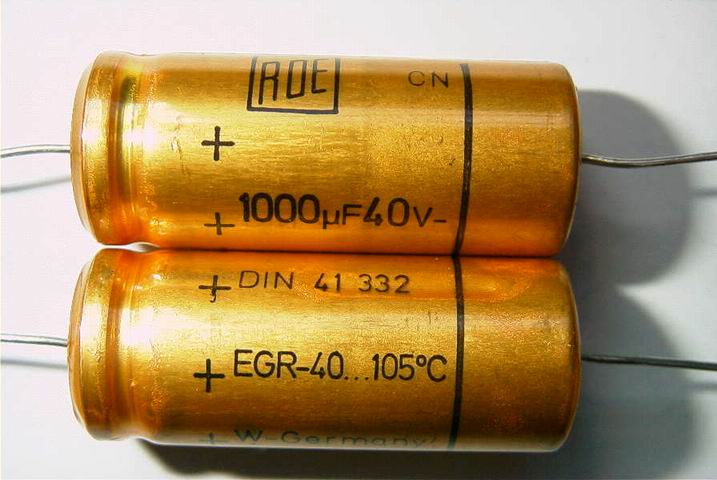

ERG / 1000uF / 40V

Size (DxL): 16 x 39 mm

Price: $1.80 per piece, buy 10 pieces and get 1 extra free.

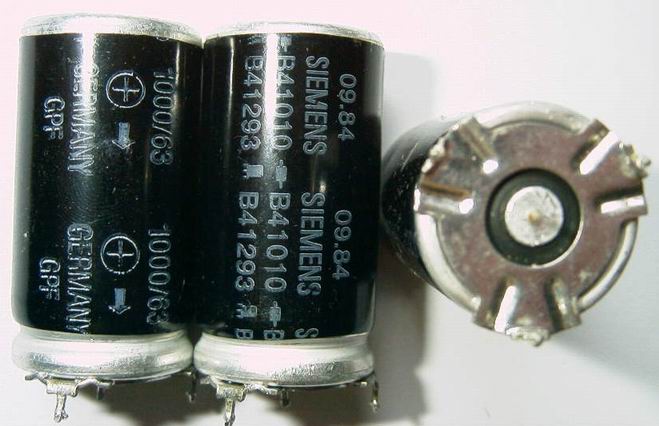

B41010 / 1000uF / 63V

Size (DxL): 21 x 40.5 mm

Price: $0.80 per piece.

Note:

Lead with solder marking

4 -pin connection

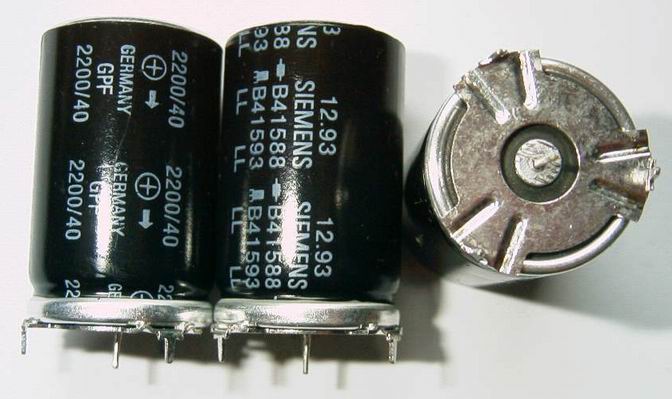

B41588 / 2200uF / 40V

Size (DxL): 25 x 40.5 mm

Price: $2.3 per piece, buy 10 pieces and get 1 extra free

Note: 4 -pin connection

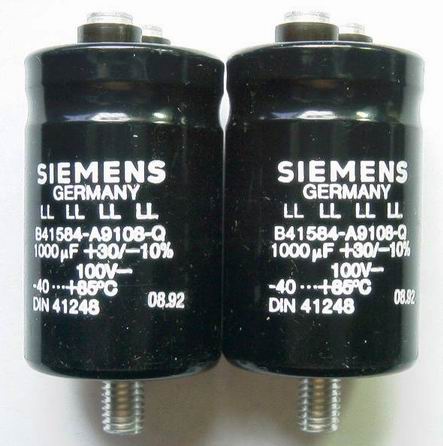

B41564 / 1000uF / 100V

Size (DxL): 35 x 56 mm  - excluding the screw terminals and the mounting stud.

Screw termination, stud mounting.

Price: $5 per piece, limited quantity.

I acquired this capacitors with the intention to construct the Pass Labs Aleph P or L single ended mosfet preamp. The service manual/circuit of these two pre-amps can be obtained from www.passdiy.com.

I am thinking of drill a few hole on a piece of arytic or metal plate, secure this capacitors with nuts through the holes. The rest of the circuit can then be hard-wire ( point to point soldering) around the capacitors. No circuit board is required, very simple as well.

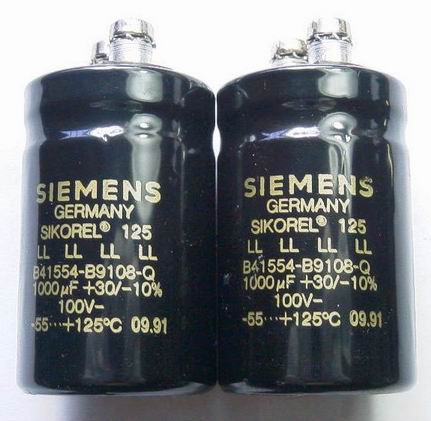

Size (DxL): 35 x 56 mm   - excluding the screw terminals

Screw termination.

Price: $8 per piece, limited quantity.

Again these caps are great for the Aleph Pre-amp. The quality of Sikorel is better than the B41564. However, I would need mounting hardware to implement the hardwire construction.

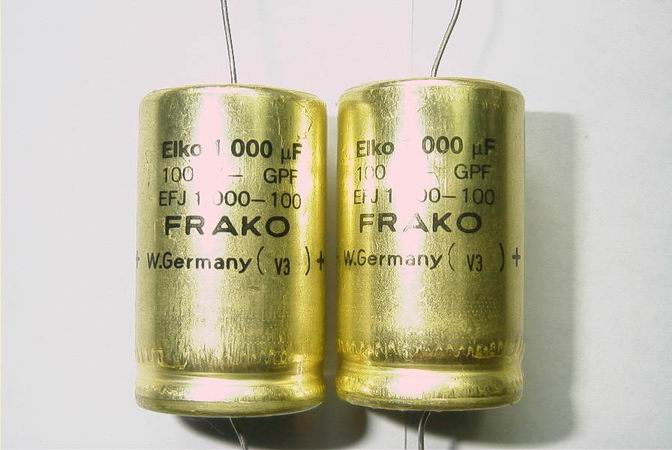

Size (DxL): 25 x 40.5 mm

Axial

Price: $3 per piece, limited quantity.

Again these caps are great for the Aleph Pre-amp. These are axial caps are are mounted horizontally, thus the profile of the preamp can be slimmer.

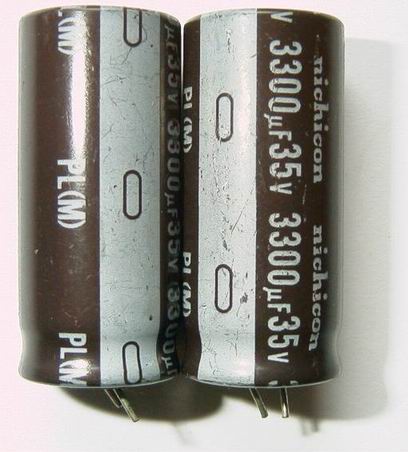

PL / 3300uF / 35V  - low ESR, for switched power supply.

Size (DxL): 18 x 40.5

Price: $1.2 per piece.

 very few pieces

Farnell price: $5

Note: short leads

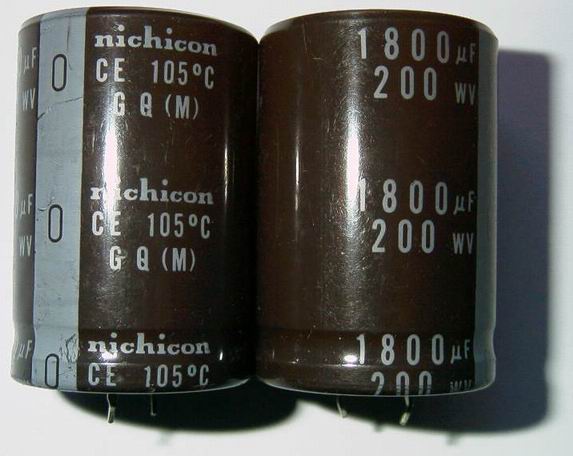

GQ / 1800uF / 200V

Size (DxL): 35 x 51.5

Price: $4 per piece.

Very few pieces.

I was thinking using these caps in the power supply aleph pre-amp, after the rectifier and before the voltage regulator,

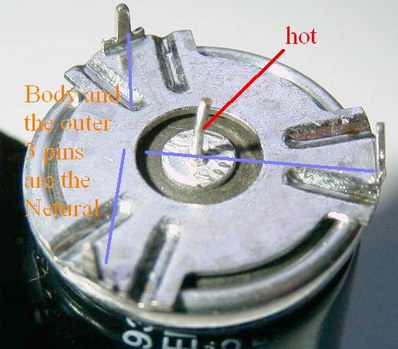

The centre is hot.
The whole casing and the outer 3 pins are the netural.
