CD Publisher
CD Publisher Autoloader
Duplicator
Configurations Specifications
|

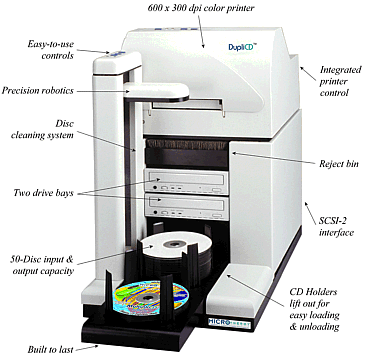

The Desktop CD Publisher is a complete CD Duplicating, Verifying and Printing subsystem for professional title development and data distribution. The 8X duplication capabilities provide hands-off, lights-out duplication of up to 50-discs per run. During duplication the 8X verifier insures the quality of the recording against the master data. The autoloader feeds the blank CD-R media into the each recorder and then into the Thermal Ink-Jet Color Printer. Printing your logo and text at 1200x1200dpi completes the process of creating a professional looking CD at a fraction of the cost of using outside services. An Ionized Disc Cleaning mechanism insures the media to be free of dust and other materials that may interfere with the duplication process. The CD Publisher comes in a variety of configurations with from one to four drives and with or without a color printer. Please see our catalog for more information. |
CONFIGURATIONS |
|
SPECIFICATIONS |
| Write Drive Configuration: | Panasonic 8x/20x CD-R Drive Plextor 8x/20x CD-R Drive |
| Read | First recorder or On-The-Fly writing technology |
| Recorder MTBF: | >50,000 hours POH (25% duty cycle) |
| Internal Controller: | Proprietary controller |
| Power Source: | 115V/230V switchable 50~60Hz |
| Weight: | 90 lbs. loaded |
| Dimensions: | 16.5"H 14.5"W 19.5" D |
| Power Consumption: | 200W |
|
||||
| Warranty |
| One year parts and labor. |
