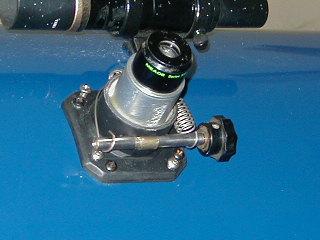

It took a couple of weeks of looking at different designs on the web to come up with an easy to build focuser. It acually took about 4 hours to make this focuser and I did not have to buy anything, this was made from scrap materials, with common tools. |
|||||||||||||||||||||||||||||||||||||||||||||||
Fiberglass tubes | |||||||||||||||||||||||||||||||||||||||||||||||
This design can be adapted hundreds of ways, The parts in this focuser are as follows. (1)-2-7/8" square of pvc (cut from the side of a pvc pipe) (1)- 1-1/4"L x1-1/2Id. pvc piece (1)- 1-1/4"Id,1-1/2 od x2"L pipe (or some pipe you can fit your eyepiece in and still fit loose in the 2"pipe). (1)piece 5/16"x1" automotive breakline. (1)piece 5/16"x1-1/4" auto breakline. (1) 1/4"x3-1/4 brass rod (1) piece 1/4 Id x1/2"L hose (1) spring (mine is a 4" carbourator return spring. (2) 3/4"x1-1/4"pieces of teflon,(I am pretty sure felt would work).. (1) 1/4"setscrew (1) Knob (4) #8 x1/2" self tapping screws (points ground off) for base alignment. (4) #8 x3/4" self taping scerws to hold focuser on. |
|||||||||||||||||||||||||||||||||||||||||||||||
I filed a flatspot on the eyepiece reciever tube to keep it from turning and to keep from focusing too far and having the assembly fall out. | |||||||||||||||||||||||||||||||||||||||||||||||

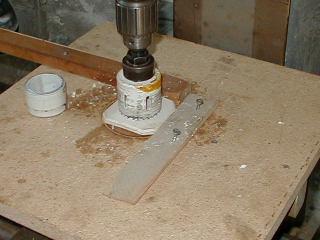

The base for the focuser is cut from the sides of a piece of 4" pvc pipe. It was heated in an oven till it got flexable, then hot pressed to my tube to give it the right shape. I then ground off the corners and tapered the edges with a bench grinder. A 2" hole was drilled into the base and the 1-1/2 id x 1-1/4L piece of pvc pipe was glued in with epoxy. I thicken my epoxy with flour to make it almost like a filler. I carfully heat the epoxy to get faster curing times. |
|||||||||||||||||||||||||||||||||||||||||||||||
The roller hole was made by drilling a 1/2" hole, then squaring it with a file. The shaft slot was made with a file. The shaft is a 1/4" brass rod with a piece of hose glued on it, it uses steel breakline for bushings and a spring to hold everything. The black screws hold down the focuser and the stainless screws are for ajustment |
|||||||||||||||||||||||||||||||||||||||||||||||
Teflon pads are glued to the inside of the assembly | |||||||||||||||||||||||||||||||||||||||||||||||
The stainless screws are screwed into the base and the holes for the hold down screws are oversized to alow for alignment from imperfect gluing operations. | |||||||||||||||||||||||||||||||||||||||||||||||
