Fiber glass 16"tube

Ken lowther and Bill Pruit came over to make  a 10" tube,  Ken made a detailed page on how to make your own fiberglass tubes. Click here

Build your own scope. Check out the ATM page Click here

Home page

Check out Finishing Fiberglass

The 14.5 internet scope

If you require information on building a tube you can contact me at [email protected]

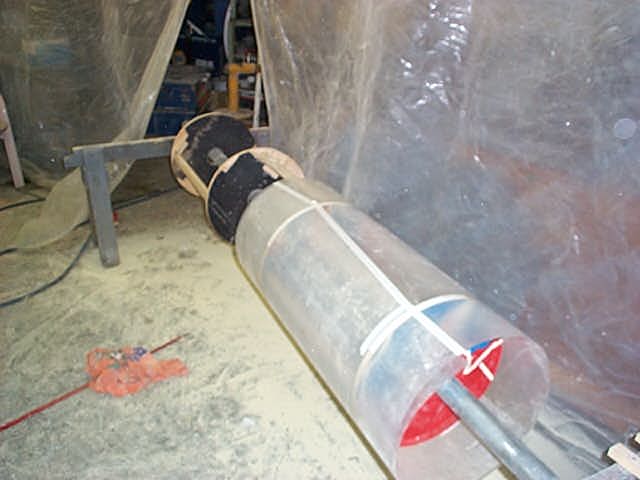

This is the wood and pipe spinable mold and the first layer of polyproplene sheeting. The second layer is taped with mylar tape.

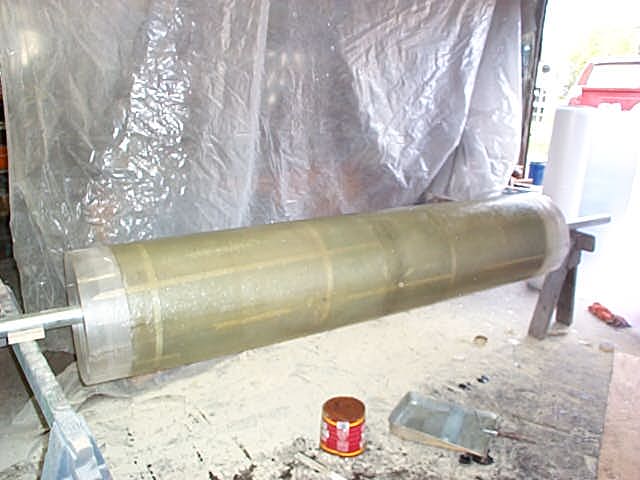

Three layers of 1.5 oz fiberglass mat are applied using polyester resin, before  and after each layer of glass. The surface is then rolled smooth as possable. Once the resin is cured in 1-3 hours you have a fiberglass tube.

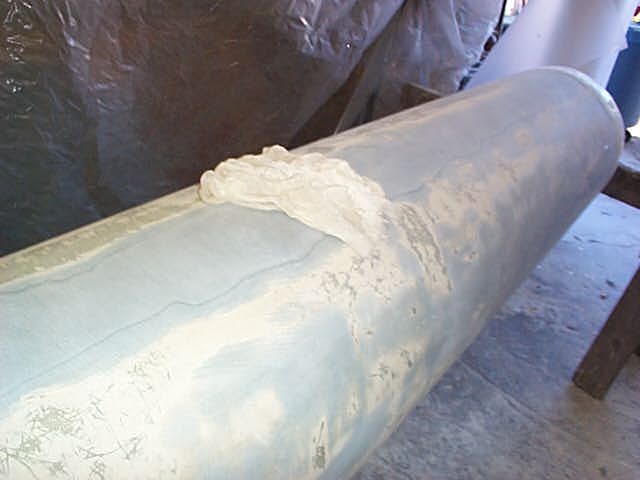

The tube is then filled with automotive type body filler, and tacked to remove the dust, before priming

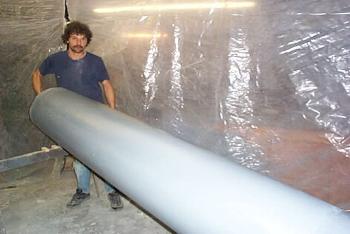

This is the first heavy prime with urathane sealing primer
