VETTA AMP MODELS

VETTA EFFECT MODELS

VETTA CABINET MODELS

STOMPBOXES - DISTORTION

based on...

1x8

STOMPBOXES - MODULATION

STOMPBOXES - DELAY

A.I.R. II Mic Options

STOMPBOXES - DYNAMICS

(A.I.R. II only affects the direct out signals)

POST EFFECTS - REVERB

POST EFFECTS - TREMOLO

POST EFFECTS - EQ

Graphic EQ -

(4-Bands @ 80Hz, 200Hz, 800Hz, 3kHz)

4-Band  EQ - (High/Low Shelving EQ +

two bands of fully parametric EQ)

POST EFFECTS - MODULATION

POST EFFECTS - PITCH SHIFT

POST EFFECTS - DELAY

 NOISE GATE - (pre-everything)

POST COMPRESSOR

EFFECTS LOOP

DOUBLE TRACKER

Since the Vetta features the ability to use two totally independent amp models at the same time, the Double Tracker provides you with the ability to "simulate" the effect of two separate guitarists playing back the same part simultaneously (through each separate amp model)...but with the inherent timing, pitch, and dynamic differences that each player would have. The effect can be more than subtle, and definitely helps increase the depth/size of your tone.

The Vetta gives you three re-routable internal STOMPBOXES 1, 2 & 3 which can be assigned to be any of the numerous effects listed here. Any stompbox can feed AMP1, AMP2, or BOTH.

Vetta A.I.R. II

The Vetta has A.I.R. II, this is nothing like the POD A.I.R. (which was more or less a volume control for a few milliseconds of miked-room ambience). The A.I.R. II on the Vetta is actual virtual modeled microphones.

These "ONLY" affect the direct outputs and have no affect on the signal that is going to the Vetta's speakers...anyone can verify this themselves by playing thru the Vetta Combo and scrolling thru the different virtual mics...you will not hear any tone change coming out the Vetta's speakers...which would make sense, since you typically mike-up a cabinet to record it, so obviously Line6 has already included the virtual-mics for you., which is really cool!

Expression Pedals

As far as the assignment of expression pedals, you can use the FBX Pedalboards two pedals...or use an external midi foot controller that supports two "assignable" expression pedals, (such as the Ground Control), any MIDI CC 1 message recieved at Vetta's Midi In port will adjust the PEDAL 1 assignment, and any MIDI CC 2 message will adjust the PEDAL 2 assignment.

You are limited in what can be assigned to be controlled:

The LEFT PEDAL can "only" be assigned to:
WAH or Pedal 1, assigned as Pedal 1, you can then route it to one of the following destination:

Stompbox 1 Mix/Level
Stompbox 2 Mix/Level
Stompbox 3 Mix/Level
Tremolo 1 Depth
Tremolo 2 Depth
Loop Mix
Pitch Shift Mix
Post Mod Mix
Post Delay Mix
Reverb Mix
Post Mod Speed
Post Delay Time

The RIGHT Pedal can 'only" be assigned to:
Volume or Pedal 2, assigned as Pedal 2, you can then route it to one of the same destinations I've listed up above for Pedal 1.

Stompbox Routing

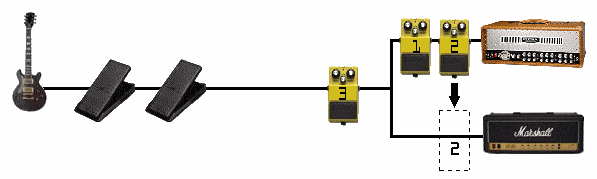

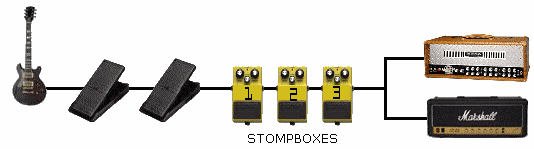

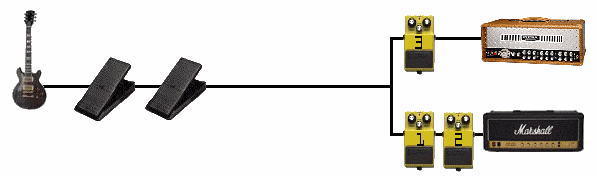

The Vetta offers three stompboxes which can be assigned to "any" of the STOMPBOX EFFECTS listed above. They can all be different, or if you so desire, you can assign each stompbox to be the same effect, such as a having three Tube Screamers, but each with different settings. Below is a diagram to show you just how many different ways you can route them. And remember, they can be placed in any particular order, not just 1>2>3, and saved differently for each patch you create. For Line 6 programmed sounds, normally stompbox 1 will be a distortion effect, stompbox 2 a modulation effect, and stompbox 3 a delay effect.
