2005 Mustang Barionel is @ BRG Racing for Upgrading J(New Project)
Part list includes: Livernois Ford Racing 4.6 Block with Forge internal; 18548-Moroso 96-09 4.6/5.4L Wet Sump 7 Qt Capacity Oil Pan (Black) and a Performance Windage Tray; Street/Race oil pump is a must for stock and modified GT engines to protect your investment. Pumps have been rigorously tested racecars turning 8000+RPM and making 1500+HP, and this kit includes: Street/Racing oil pump, high flow pick-up tube with integrated crank scraper to eliminate oil from clinging to crank at high RPMs, CNC o-ringed body for leak free seal, and cryogenically treated gears.; SHM Stage 4 Race Cylinder Heads rated at 1200HP; Comp Cam Stage 3 Blower Grind, Moser 9” Complete Rear End w/ 35 Splines and 4:10 gears; D&D complete Transmission package: new TR-6060 6 Speed Transmission and all the parts needed for installation in an 05-10 Mustang GT. The TR-6060 is the next generation T-56 rated at 700 lb-ft torque with heavy duty 26T input and 31T output shafts; Steeda drive kit 11-13 and 15-17psi for Ford Whipple supercharger; Ford Racing Throttle Body; LP-Bosch72 Bosch 72lb EV14 High Impedance Fuel Injectors (Set of 8); Fore Precision Works 05-09 Mustang GT High Flow Fuel Rail Kit; MSD-82438 MSD 05-09 Mustang GT Blaster H.O. Coil On Plug Kit; High performance water pump; PA200 Amp Alternator HO with high performance power cable; 160% Thermostat; AFCO High Performance Radiator; Fluidyne High performance heat exchanger; tow piece soft billet pulleys; SLP line lock Brake-Control package; SCT Big Air-2600 90mm MAF Meter *Supports 400rwhp - 625rwhp with Centrifugal Blower Applications *Supports 400rwhp - 700rwhp with Roots Blower Applications.

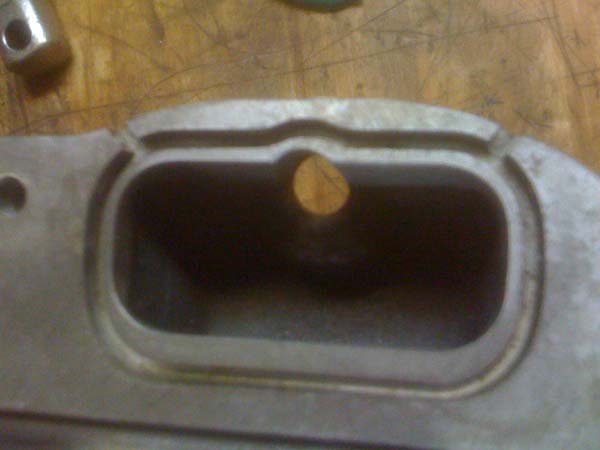

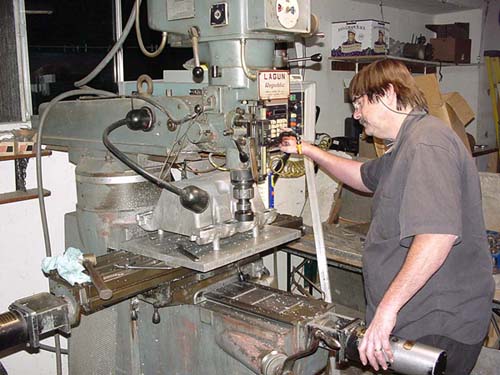

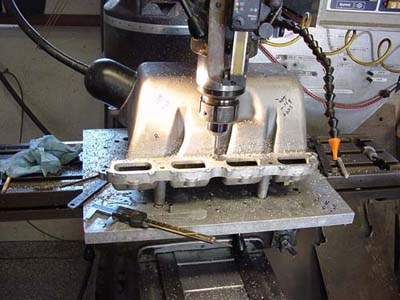

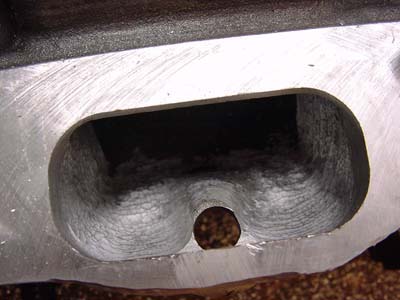

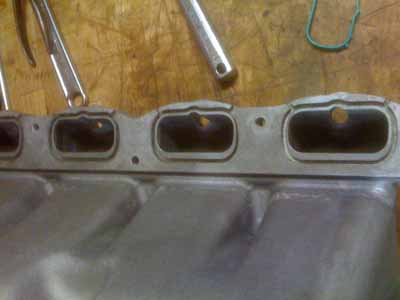

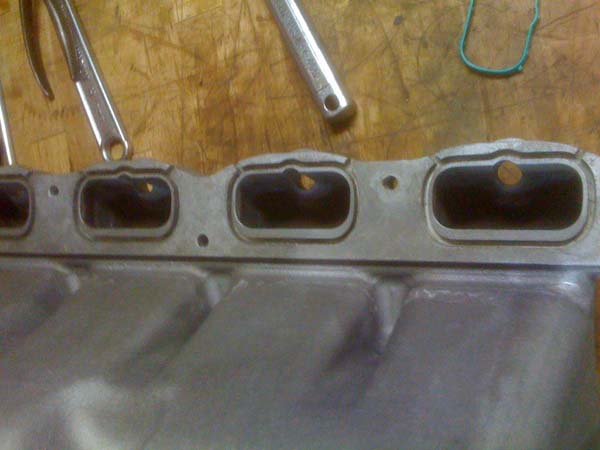

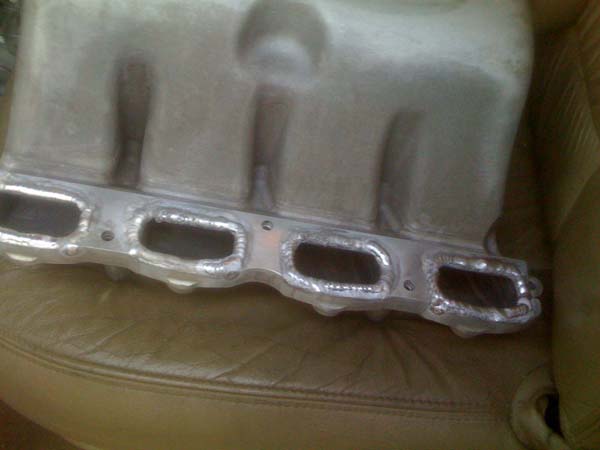

Take a look at the original Whipple Manifold ports to see KC's modified work. Starting on the left side used with the Factory Cylinder Heads, and on the right KC took the old manifold, opened the ports up for big air to match the newly purchased race Cylinder Head; the difference is the manifold ports larger compare to the first graphic and perfectly fit.
Graphic
BRG Racing also have their own Dyno tuning service, so look out for the new numbers once we are done with this project.
