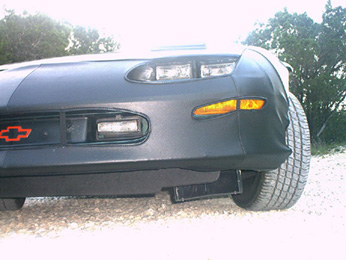

Here's the installed scoop underneath the bumper(which is no longer there).

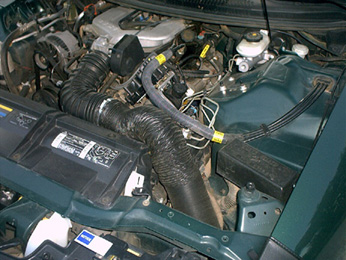

Here's a view of the ducting that comes up from the box containing the K&N filter and connects to the throttle body(also removed).
