Click on an image to see a larger one:

1.)         2.)         3.)

4.)         5.)         6.)

7.)         8.)         9.)

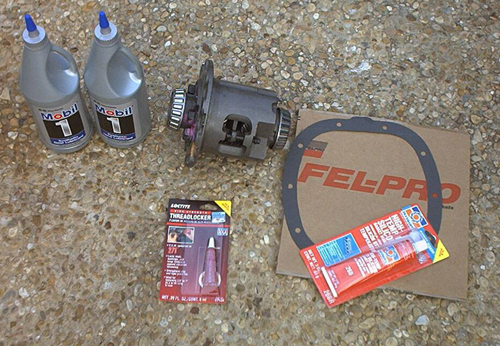

1.) A picture of all the parts and supplies I used in the install. (the posi-unit, a fel-pro housing gasket, red lock tight for the ring gear bolts, RTV for the gasket, and two quarts of Mobile 1: 75W-90 synthetic oil for the unit.)

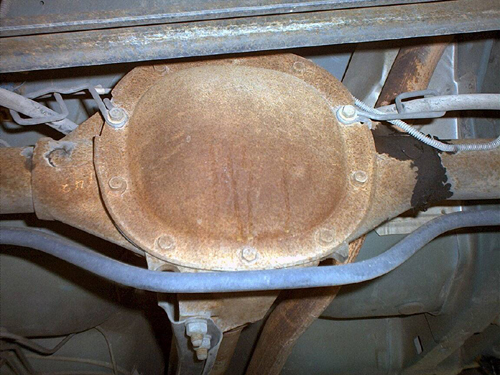

2.) A before picture

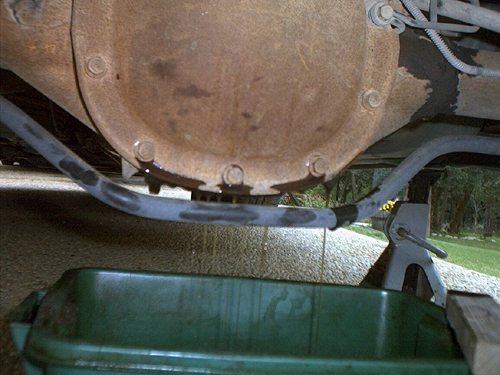

3.) Loosened the bolts and draining fluid

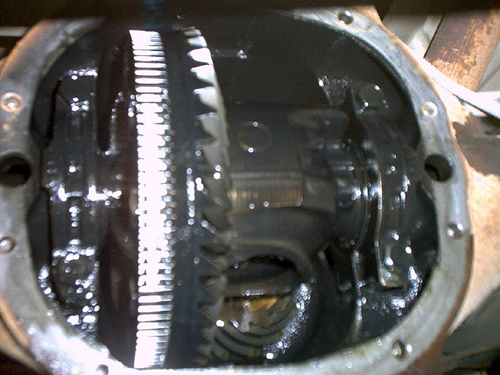

4.) Picture of old differential about to be taken out.

5.) Removed old differential.

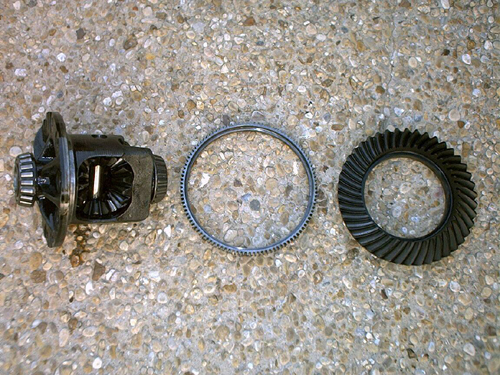

6.) Removed ring gear and reluctor gear(used for speed sensing) from old differential.

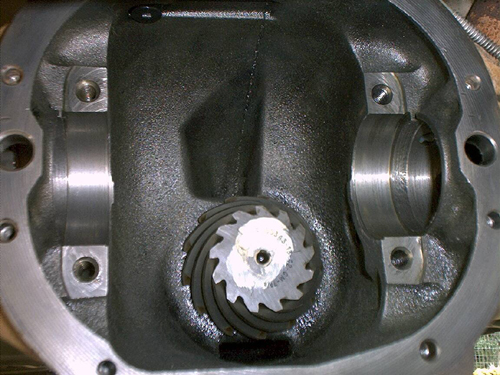

7.) Cleaned housing of old oil and any other contaminates.

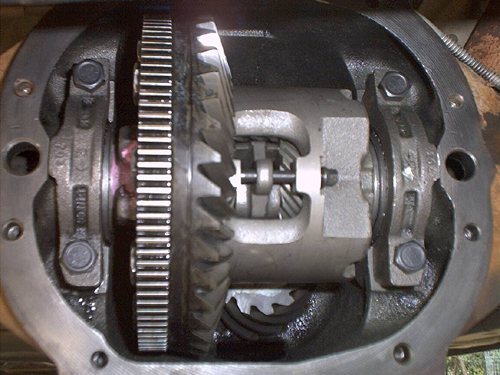

8.) New posi-unit installed with ring gear and reluctor gear bolted and pressed on.
