JDM2001

Programmer PIC16F84,12C50x and EEPROM 24Cxx
Schematic form http://www.jdm.homepage.dk/newpic.htm
No requied power supply
Old version JDM84

PCB (Bottom,overlay)
PCB composite
Schematic JDM 2001( Add LED monitor Vcc, Clock, Vpp)


JDM2001 ����ö������ͫ���ѧ��� PIC12C5XX, 12C67X, 24CXX, 16C55X, 16C61, 16C62X, 16C71, 16C71X, 16C8X, 16F8X and ISO-CARD's with ASF. �������ö���������������ա������� adapter.
( connect 10 pin)

Part List
( 5V1 = 5.1V , 1K2 = 1.2K)


2 - 1K2	 	Resistor 1/8W or 1/4W 5%
1 - 4K7		Resistor 1/8W or 1/4W 5%
1 - 2k2		Resistor 1/8W or 1/4W 5%
1 - 10k		Resistor 1/8W or 1/4W 5%
3 - LED		RED,GREEN,YELLOW
1 - 5V1		Zener diode 1/2W or 1W
1 - 8v2		Zener diode 1/2W or 1W
4 - 1N4148 	SIGNAL DIODE
1 - 22uF/16V 	Electrolytic
1 - 100uF/25V	Electrolytic
1 - 18 pin 		IC socket or (ZIF Socket 18 Pin or 20 pin)
2 - BC547		Transister or similar (NPN type)
1 - Telephone socket RJ11 6P4C (6 position 4 contact)
1 - DB9 female + cover
1 - Jumper
1 - Pin Header 13 Pin


Program PonyProg ����ö Download ���� http://www.lancos.com/

	PonyProg	http://www.lancos.com
	PIP02 Ver.1.26 ( JDM84)

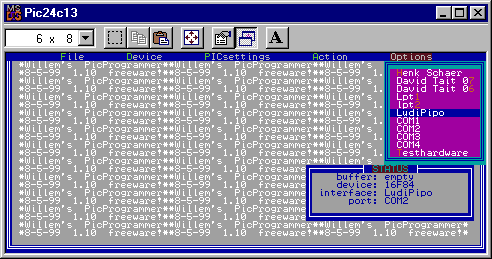

	PIC24C V1.3 Setup
	PPIC (PIC16F87x,PIC16F84) (75KB) DOS
	ic-prog V1.04	http://www.ic-prog.com or http://www.ic-prog.net
