Midwest Source Horse and Livestock Waterers

Welcome to Midwest Source, Your Everything Source in Barns, Hardware, Supplies and Equipment for Equine, Cattle and Livestock.

Livestock and Horse Water Systems

When you invest in a Miraco water systems for your livestock or horses, you’re getting equipment that is extremely durable, and supplies fresh, clean water for all kinds of livestock – dairy and beef cattle, horses, sheep, llamas, alpacas, goats, deer, elk, bison and more.

Miraco perfected energy-free watering systems and were the first to manufacture automatic livestock waterers from poly materials. During the past 25 years, millions of dollars have been saved in energy bills and millions of dollars in value have been added to livestock operations around the world.

Purchasing the right type of Miraco Waterer to fit your needs are in investment in equipment that will perform reliably for many years, and save you in the long run.

Email or call Dick Lockhart with Midwest Source at 1-859-356-3869 to discuss your horse and livestock automatic waterer needs. See the large selection of waterer systems available below -- to fit your every need, and ask about other Miraco products such as pet waterers and heat tubes.

Waterers

EQUI Fount 1100 model waterer 1100 model

100% Poly construction - Urethane foam insulation
One piece construction
Smooth surfaces
Cool clean water available at all times
Easy to clean out (no need to disassemble to clean)
Easy hookups
Reliable valve system, easy adjustment
Water hookup from above or below
Optional insulated tube for hookup to underground water line
Optional heaters (heater never touches water)

Colors

Waterers

Lil spring 2800/2801 model waterer 2800/2801 model

Heat	Optional 110 volt 250 watt submersible heater
Gallons	4
Dimensions	20"W x 16"L x 19" drinking height
Valve	Automatic Plastic
Weight	40 pounds
Colors

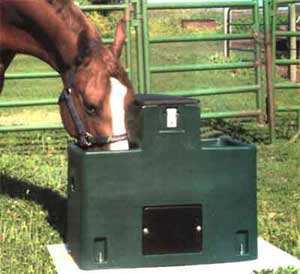

Lil spring 2900/2901 model waterer 2900/2901 model
Space Saver - Automatic Waterer

Exclusive 5 year warranty
Large removable dome for quick and easy access to valve area
Spring load clips allow entry to valve area - no wrenches required
3" drains - one on each end
Installs easily on most existing concrete pads
One-piece body polyethylene construction
No Sharp Edges
Tough high-impact resistant "Rockite" material
Stands up to livestock abuse
Resistant to corrosion
2" to 3" urethane foam insulation
Molded base unit anchors (stainless steel bolts included)
Sloped bottom for easy cleaning
Sealed bottoms
Great replacement of old rusted metal units
Use in fence line
Use in small areas

Heat	Optional 110 volt 250 watt submersible heater
Gallons	6
Dimensions	30.5" W x 16.5" L x 19" drinking height
Valve	Miraco automatic plastic
Install	200 psi hose with shut off, valve included
Weight	48 pounds
Colors

Lil spring 3001 model waterer 3001 model

Heat	Optional 250 watt submersible heater
Gallons	5
Dimensions	24" W x 22" L x 16" drinking height
Valve	Automatic plastic
Weight	38 pounds

Lil spring 3002 model waterer 3002 model
Extension

Raises Lil' Spring drinking height from original 16" to 28". Ideal for installation in paddocks or stalls. Makes the water more visible and prevents livestock from putting their feet in the water bowl.

Lil spring 3100 model waterer 3100 model

Heat	Optional 250 watt submersible heater
Gallons	8
Dimensions	22" W x 36" L x 27" H - 22" drinking height
Warranty	Exclusive 5 year warranty

Lil spring 3200 model waterer 3200 model

Heat	Optional 250 watt submersible heater
Gallons	25
Dimensions	48" W x 22" L x 24" drinking height
Valve	Miraco Automatic Plastic
Weight	80 pounds

Waterers

BIGspring_6000 model waterer 6000 model
Constant Flow or Optional Electric Heating

Capacity	250 head beef; 100 head dairy
Gallons	60
Dimensions	90" length x 33" wide
Drinking Height	24"

BIGspring_6100 model waterer 6100 model
For Free Stall Installation

Capacity	100 head dairy
Gallons	60
Size	80" length x 36" wide
Drinking Height	24"

BIGspring_6200 model waterer 6200 model
For Free Stall Installation

Capacity	80 head dairy
Gallons	60
Size	84" length x 22" wide
Drinking Height	22"

BIGspring_6300 model waterer 6300 model
For Free Stall Installation

Capacity	300 head beef; 125 head dairy
Gallons	110
Size	144" length x 22" wide
Drinking Height	22"

BIGspring_6300 model waterer 6400 model
For Free Stall Installation

Capacity	200 head beef; 125 head dairy
Gallons	85
Size	120" length x 22" wide
Drinking Height	22"

Waterers

MiraFount 3330 model waterer 3330 model

Capacity	50 head beef; 25 head dairy
Gallons	15
Dimensions	26" x 28" x 14"
Specifications	One 8.75" opening / 9" ball closure
Weight	49 pounds

MiraFount 3465 model waterer 3465 model

Capacity	100 head beef; 40 head dairy
Gallons	20
Dimensions	24" x 36" x 18"
Specifications	Two 9.25" openings / 10" ball closures
Weight	71 pounds

MiraFount 3390 model waterer 3390 model

The MiraFount 3390 features easy easy to remove end panels to help get new cattle started fast. Or, remove the end panels when you need more capacity for a few extra head.

Capacity	150 head beef; 60 head dairy
Gallons	44
Dimensions	43" x 29" x 20"
Specifications	Two 10" openings / 10.75" ball closures convertible
Weight	119 pounds

MiraFount 3345-S model waterer 3345-S model

Capacity	250 head beef; 90 head dairy
Gallons	70
Dimensions	32.5" x 57.5" x 19"
Specifications	Four 9.5" openings / 10.75" ball closures convertible
Weight	152 pounds

MiraFount 3370-S model waterer 3370-S model

The MiraFount 3370-S features easy to remove end panels to help get new cattle started fast; or remove the end panels when you need more capacity for a few extra head.

Capacity	350 head beef; 120 head dairy
Gallons	100
Dimensions	45.5" x 57.5" x 20"
Specifications	Six 9.5" openings / 10.75" ball closures
Weight	196 pounds

MiraFount 3410 model waterer 3410 model

Capacity	100 head market hogs; 50 head sows
Gallons	6
Dimensions	19" x 34" x 16"
Specifications	Two lift-up lids / 10" openings
Weight	52 pounds

MiraFount 3410-4 model waterer 3410-4 model

Capacity	200 head market hogs; 100 head sows
Gallons	15
Dimensions	36.5" x 34" x 16"
Specifications	Four lift-up lids / 10" openings
Weight	88 pounds
