Specifications |
|
Size: |
6.31"W x 3.0"H x 11.19"L |
|
Temperature Range: |
-20 to +55C |
|
DME Trasnmitter Power: |
50W minimum (100W typical) |
|
DME Range: |
0-200 nm |
|
NAV Frequency Range: |
200 channels, 108.00 to
117.95 with 50kHz spacing |
|
NAV Selectivity : |
6db at +-16kHz, 65db at
+-40kHz |
|
VOR Accuracy: |
Typically less than +- 1
deg. error |
|
Bearing and Distance
Accuracy (RNAV): |
Meets FAA Advisory
Circular 90-45A accuracy requirements |
|
NAV Audio Output: |
50mw Max. into 500 Ohm
|
|
Weight: |
6.0 lbs. |
|
Advanced
Technology Features |
|

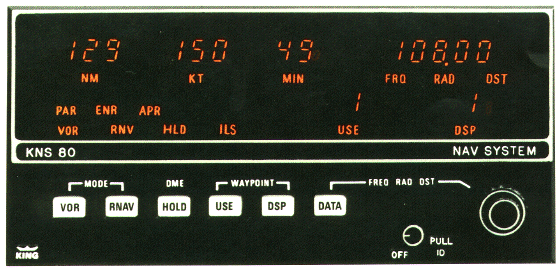

Panel mounted
navigation system consisting of VOR/Localizer receiver, DME
interrogator, RNAV computer, and glideslope receiver [-00/02 unit |
|
Simultaneously displays
distance to station, velocity to station, time to station, and chosen
parameter of one of four waypoints |
|
200-channel VOR/LOC
receiver |
|
200-channel digital DME |
|
VOR/LOC converter |
|
Digital RNAV computer
with capability for preselection and storage of 4 VOR/LOC frequencies
and/or complete RNAV waypoints |
|
40-channel Glideslope
receiver (-00 and -02 unit only) |
|
Will operate on any
voltage from 11 to 33 volts |
|
Large Scale Integrated
(LSI) circuits used which results in complete unit weighing only 6
lbs. with a low power consumption of 25 watts |
|
Automatic dimming
circuit for display compensates for changes in ambient light level |
|
Models available which
DO NOT include glideslope receiver |
|
Models available with
standard, diffused or shiny lens |
|
Commonly used with
KI-206 VOR/GS indicator but can be used with KNI-510/510/B/520/525 or
KPI-550A/551A/552/553 Navigation indicators |
|
THIS UNIT IS NOT FM
IMMUNE FOR USE IN EUROPE |
