Installation instructions for the Ford Motorsport M-2300-K

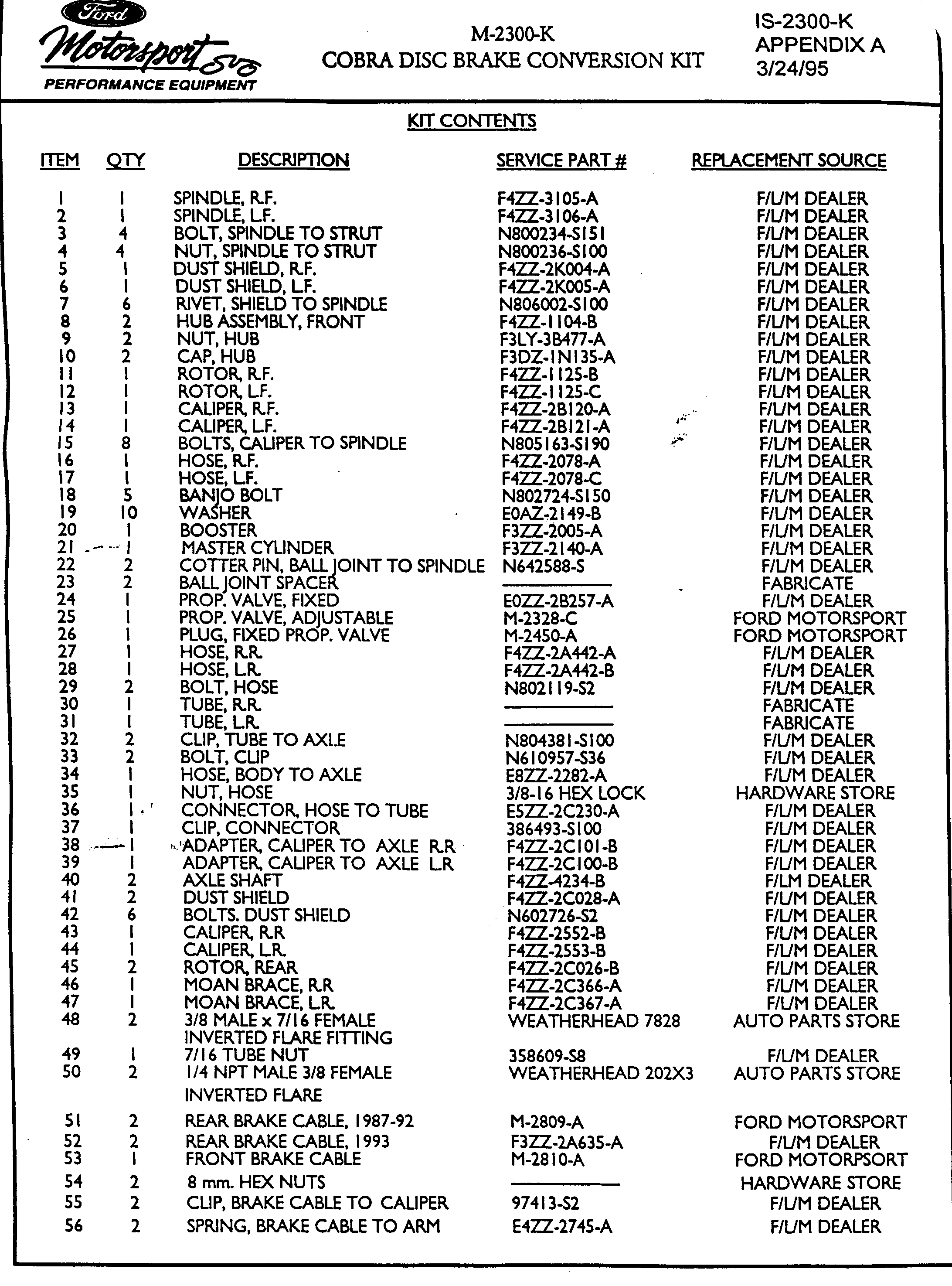

Cobra Brake kit. Page 4 includes a complete parts list for the conversion. Nearly all have Ford service numbers which means they're available at the parts counter. Just so ya know, the pictures on this are big. I haven't had a chance to resize them.Page
1 Page
2 Page
3 Page
4 Page
5 Page
6 Page
7 Page
8
-
