| LinePro 135 Multi-Purpose Transmission Maintenance Vehicle |

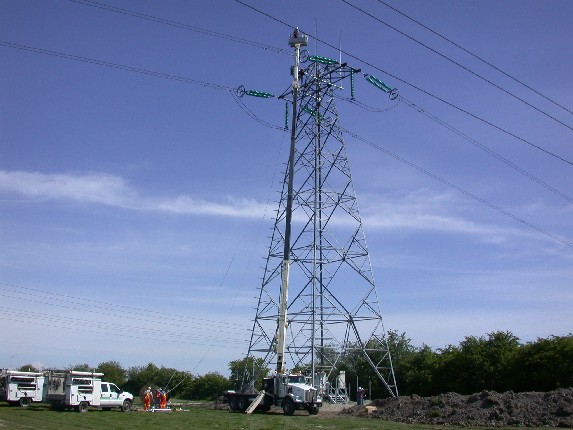

| LinePro building cell site on top of 500kV DC tower at 110' The LinePro Series aerial devices allow barehand maintenance of energized 500kV transmission lines up to 135' high. By adapting an insulated personnel jib onto a heavy duty National Crane, the LinePro Series aerial crane trucks are versatile, reliable high-performance and cost-effective. Unique Features: - T800 Kenworth Chassis - 28 T National Crane - "Swing-Under" jib stow - 30 deg. jib articulation - Sealed fiberglass boom - Radio Remote Controls - Hydraulic-leveling two man platform - 135' vertical reach, 65' side reach Advantages: - Multi-purpose capability increases utilization - Increases safety and productivity of PLT's over conventional methods - Fast response to emergency calls - High reach and maneuverability - Fast deployment with "Swing-Under" - Fully proportional fine metering Applications: - Maintenance on transmission lines - Build cell sites on transmission towers - Reach tall vegatation for tree work - Complete trouble repairs (set poles) LinePro Series aerial devices are customizable. From 6x6 conversions to options like pole tongs and conductor lifting jibs, we can build it to fit your needs. |
 |

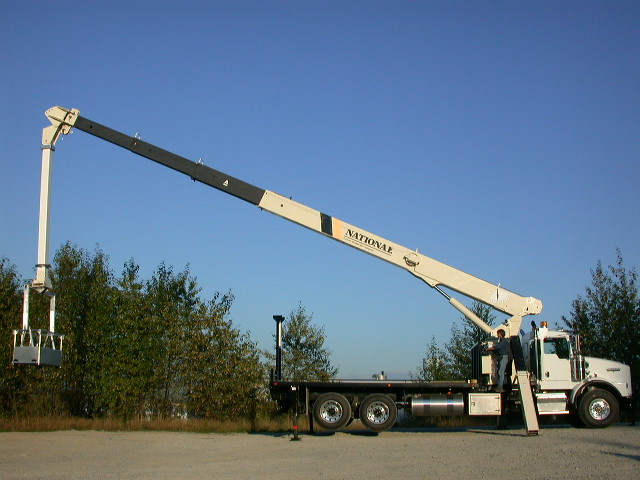

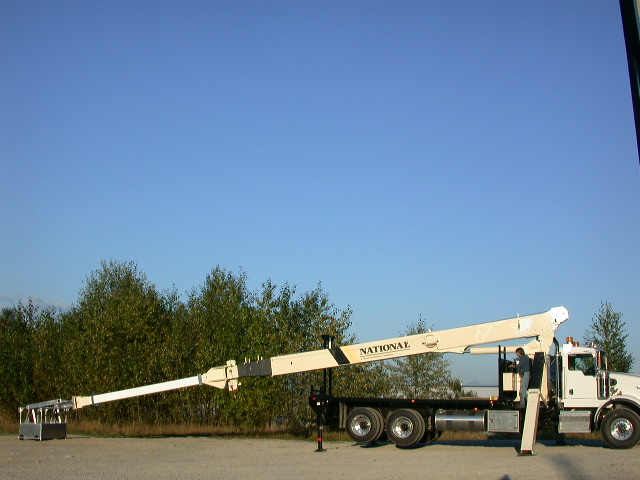

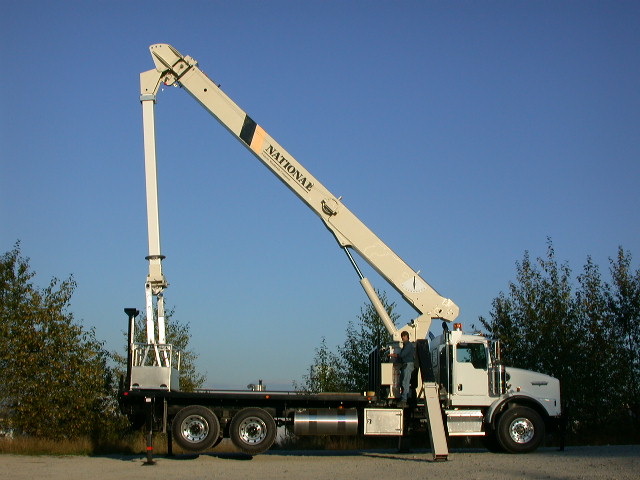

| New! "Swing-Under" Stow Saves Time on Setup! |
 |
 |
 |
 |
 |
 |
| Now available on LinePro Series! By stowing the jib and platform under the crane, setup of the vehicle for line work is much faster than any other jib-storing method. This allows for quick transition between general crane material lifting duties to live line work. |
