Network Topology
A
network topology refers to:
The
layout of the computers and devices in a communications network.
The
configuration of a network that consists of cables, computers and other
peripherals.
Physical
topology:
A
network refers to the configuration of cables, computers and other peripherals.
They
are actually interconnected with wires and cables
Logical
topology:
A
network refers to the architecture, which is the new way in which the network appears
to the devices that use it.
Devices
appear connected to the users. (Blueprint)
Computer
Network Terms:
Node |
Any device that is
connected to a network. |
Client |
A node that requests
and uses resources available from other nodes. |
Server |
A nodes that share
resources with other nodes. |
Host |
Any computer that
provides services and connection to other computers on a network. |
Switch |
A central node that
coordinate the flow of data by sending messages directly between sender and
receiver nodes. |
Hub |
The device that
provides a common central connection for nodes on network. |
Network Interface Cards
(NIC) |
Expansion cards located
within the system unit that connect a computer a network. A communication device
that enables a computer or device to access a wired network (via cable). |
Packets |
Small pieces into which
message are divided. |
Topology |
Bus
Network |
Star
Network |
Ring
Network |
|
![]() |
|
![]() |
Explanation |

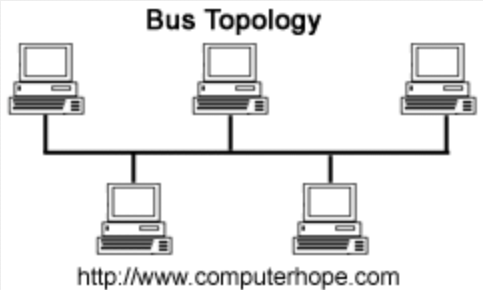

A bus network consists
of a single central cable (backbone/trunk), to which all computers and other
devices connect (node). The bus is the physical
cable that connects the computers and other devices. The bus in a bus
network transmit data, instructions, and information in both direction as a
series of signal. Those signals are sent
as electrical pulses that travel along the length of the cable. Each devices is
connected to the single bus cable through T-Connector. A terminator is
required at each end of the bus cable to prevent the signal from bouncing
back and forth on the bus cable. |

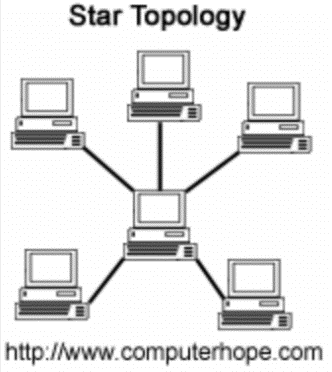

All the computers and
other devices on the network connect to a central device (hub/switch), thus
forming a star. Two types of devices
that provide a common central connection point to all the other devices on
the network are a hub and switch. The device that
provides a common central connection point for other devices on a network. All data that transfers
from one device to another passes through the hub and switch. The hub takes a signal
that comes from any device and passes it along to all other devices in the
network. |
On a ring network, a
cable forms a closed loop (ring) with all computers and devices are arranged
along the ring. Data transmitted on a
ring network travels from device to device around the entire ring, in one
direction (clockwise or counter
clockwise) Token passing is one
method for sending data around a ring. Each device takes a
turn sending and receiving information through the use of a token. The token along with
any data is sent from the first device to the second device which extracts
the data addressed to it and adds any data it wishes to send. Then second device
passes the token and data to third device etc. until it comes back around to
the first device again. Only the device with
the token is allowed to send data. All other devices must wait for the token
to come to them. |
Advantages |
Network can easily be
extended, by adding new node to the backbone. Failure of a node,
doesn’t affect the entire network. No disruptions to the
network when connecting and removing nodes. Require less cable. Bus network are inexpensive and easy to install. |
Easy to expand the
network. You only add node to the hub. Failure of a node,
doesn’t affect the entire network. No disruptions to the
network when connecting and removing nodes. Easy to install and
wire. |
Require less cable. No data collision exist
between nodes. The transmission of
data is relatively simple as packets travel in one direction only. Cable faults are easily
located, making troubleshooting easier. The uses of token
passing enables all devices in a ring topology to share the network resources
fairly. |
Disadvantages |
If the backbone cable
fails, the entire network stop working. Terminators are
required at both ends of the backbone cable. Network speed decrease
when the number of nodes increase. It is difficult to
identify the problem if the entire network shut down. |
If the hub fails, the
entire network stop working Require more cable. Network speed decrease
when the number of nodes increase. |
If any node fails, the
entire network stop working There will be a limit
on the distance between nodes. Data packets must pass
through every computer therefore, this makes it slower. A ring network can span
a larger distance than a bus network, but it is more difficult to move. |
