The Past Master Club 3D STUDIO WIZARD R2
advanced computer training for engineers Author: Klaas Van Fleet


3D STUDIO VIZ R2 TRAINING CURRICULUM
Animating a 2 Cylinder Motor


  1. SPEEDING UP THE ROTATION OF THE PUMP (cont'd)
      gear4

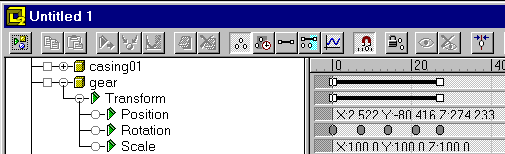

    1. Place your cursor at the end of either solid line behind Gear, where it turns into a
      two part cursor, and carefully drag the end (100) to time 25, shown below. gear2
    2. Highlight the last 4 dots behind Rotation transform using CTRL key pressed and mouse.
    3. With Shift key pressed and mouse drag first highlighted dot carefully to the right just past
      the 5th dot and release.

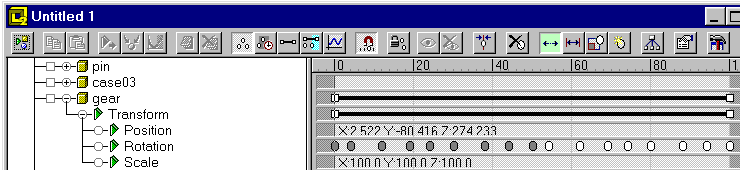

    4. Repeat the above procedure highlighting and moving 8 dots to the right, shown below.
      The Gear is now done. gear17
    5. Repeat the same procedure 5 - 10 for the CamPoint, see below.
      Both could have been done at the same time to save time.
