3D STUDIO VIZ R2 TRAINING CURRICULUM
Animating a 2 Cylinder Motor


  1. SPEEDING UP THE ROTATION OF THE PUMP
    1. Open PUMP.MAX a 3DSTUDIO file created in the previous exercise. trackz
    2. track Click the TrackView icon to open the Track View menu to piston.

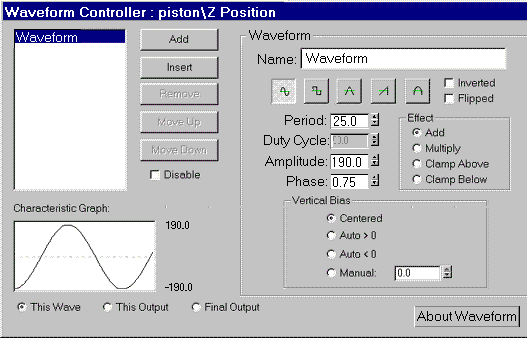

    3. Activate 'ZPosition' with your cursor and right click on its solid line at time 20 to get . waveform
    4. Change the 'Period slider' to 100/4=25 and click OK.
    5. Return to Track View and dotedit Click on the 'Edit Key' icon in the menu.
    6. Locate and activate Rotation Transform for the Gear, below. Use select by name if you need to.
