The Past Master Club 3D STUDIO WIZARD R2
advanced computer training for engineers Author: Klaas Van Fleet


3D STUDIO VIZ R2 TRAINING CURRICULUM
Animating a Pump


  1. FINITE ADJUSTMENTS OF PIN & SHAFT
      front14pump
      NOTE:

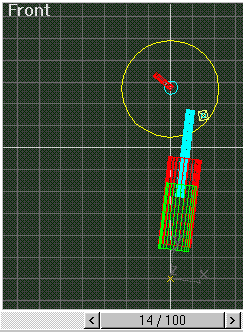

      As can be seen at right (at time 14/100) the Pin and Shaft still require adjustments, which are easily done in the following steps.
      shaft

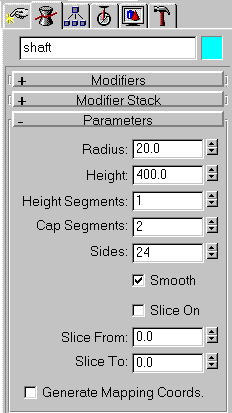

    1. Before continuing on to the next instruction and at time timeslider0 make sure that the Shaft extends past both the Pin and into the Piston by using Move moveselect and Modify modify commands: altering radius and height sliders to suit at right.
