3D STUDIO VIZ R2 TRAINING CURRICULUM
Animating a Pump


  1. ANIMATION USING WAVEFORMS (cont'd)

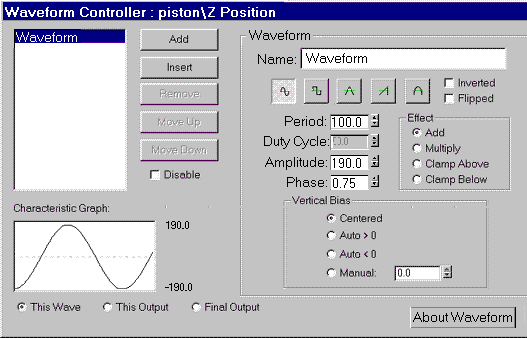

      waveform
    1. Set the Period spinner to 100.0 for total time period.
    2. Set the Amplitude spinner to 190.0 for the offset of the Pin on the Wheel.
    3. Set the Phase spinner to 0.75 for Z to start at -190.
    4. Set 'XPosition' to 'on/off' using the Assign Float Controller in step 5.
    5. Set 'YPosition' to 'on/off' using the Assign Float Controller in step 5.
      NOTE:
      Most of the technical work is now done.
