Early Alacrities have only one single window on either side. The later ones have two windows and are also called Alacrity Mk2. An example of an older Alacrity is Bob Hendry's Elsie Too, (no 171) while my own boat is a Mk2 (no 350).
Here is a scan of the Original sales brochure. Thanks to Ted Walls.
And here is another brochure about both Vivacity and Alacrity. Thanks to Ben Gilchrist.

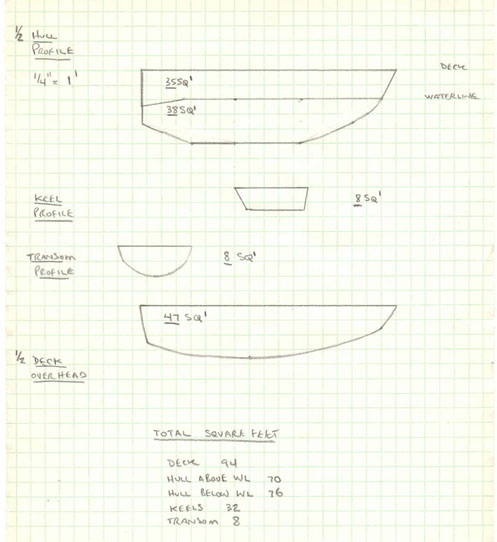

And here are some sketches of the hull's square foot area. (Thanks to Ron Hack).
Alacrity 19 specs
Boat's history
Pictures
Cruise Logs
Tips and Tricks
Articles and Links
Main pag
Lenght overall 18´6'' 5,75m
Length waterline 17' 5,2m
Beam 6'11'' 2,10m
Draft 1'10' 0,55m
(twin keels)
Displacement 1450lbs 650kg
Keel weight 480 lbs (240 lbs each keel)
Distance between keels (outside): 1.23 m
Rig Masthead
Sail area main 9m2
Sail area genoa 8,4m2
Sail area jib 5,2m2

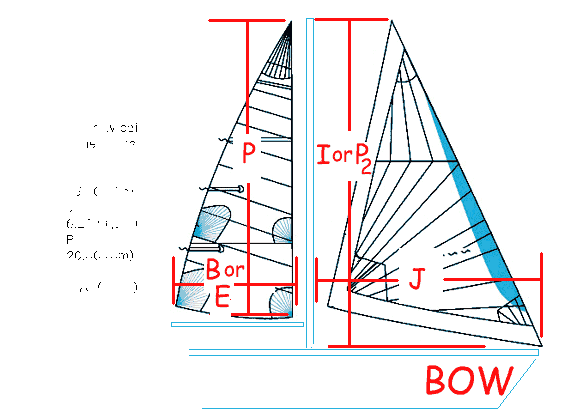

Look here for Sail dimensions

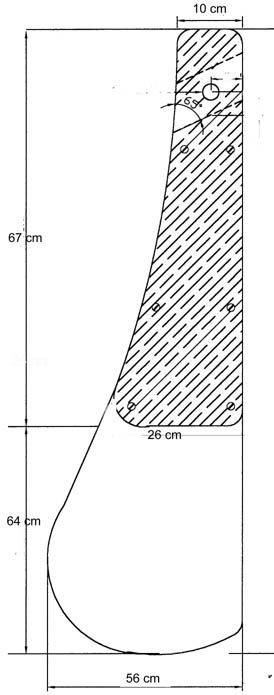

Look here for Rudder dimensions

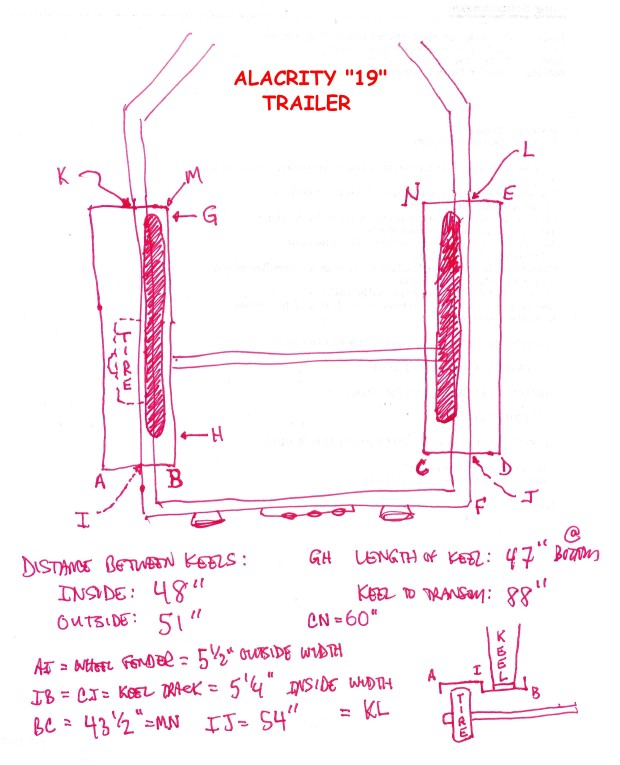

Look here for Trailer dimensions
Mast height 7m (above deck level)
(Look here for more mast dimensions).
Jib sheet 5,6m/8mm
Main sheet 14,1m/8mm
Designer Peter Stephenson
