Throttle Body Assembly Detail
The diameter of the throttle body has been increased from 50.8 mm in the 3.0L to 57.15 to benifit performance.

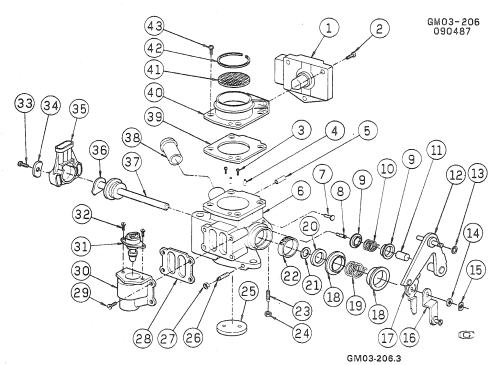

Detail Views

Fuel Injector Assy
Fuel Rail Assy
Throttle Body Assy


.
25535135  Throttle Body Comes as complete assembly
1.   Sensor, Mass Air Flow (Incls 2, 39-43)
2.   Screw
3.   Screw
4.   Pin
5.   Tube, Vac Signal
6.   Body, TBI
7.   Hanger, Spring
8.   Shaft
9.   Sleeve
10. Spring
11. Collar
12. Drive Lever Asm
13. Clip
14. Washer
15. Nut
16. Lever Asm, Trans
17. Lever, Throttle
18. Sleeve
19. Spring
20. Retainer, Bearing
21. Seal, Rubber
22. Bearing
23. Screw, Adjustment		 24.  Nut, Adjustment Screw
25.  Valve, Throttle
26.  Screw, Throttle Adjustment
27.  Nut, Throttle Adj Screw
28.  25532801  Gasket, IAC Housing
29.  Screw
30.  25532802  Housing, IAC
31.  25533222  Motor, IAC
32.  Screw
33.  Screw
34.  Plate
35.  25535420  Sensor, Throttle Position
36.  Lever, Throttle Sensor
37.  Shaft, Throttle Lever
38.  Tube, PCV
39.  Insulator, Air Flow Sensor Body
40.  Body, Air Flow Sensor
41.  25532797  Honeycomb, Throttle Body
42.  25532798  Ring, Honeycomb Retaining
43.  Screw
