Fuel Injector Assy
Fuel Rail Assy
Throttle Body Assy
Injector Specs
Max Flow Rate
2 grams per sec.
Pulse Duration
1.7 - 10 microseconds
|
|
|
|
|
|
|
|
|
|
||||||||
|
||||||||

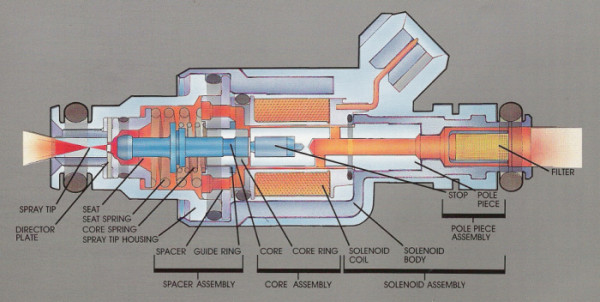

| Fuel Injector Assembly Detail | ||||||||
|
||||||||
| Detail Views Fuel Injector Assy Fuel Rail Assy Throttle Body Assy |
||||||||
|
||||||||
Injector Specs Max Flow Rate 2 grams per sec. Pulse Duration 1.7 - 10 microseconds |
||||||||
| Multec fuel injectors are used to meet the fuel requirements of the 3300. They are located at each intake port, and provide precise fuel metering. Fuel is delivered to the injectors by an extruded aluminum rail, and metered into the intake port of each cylinder once every engine revolution. Multec Injectors offer faster response time, and less sensitivity to fuel quality than the injectors on the 3.0L. | ||||||||
|
||||||||
