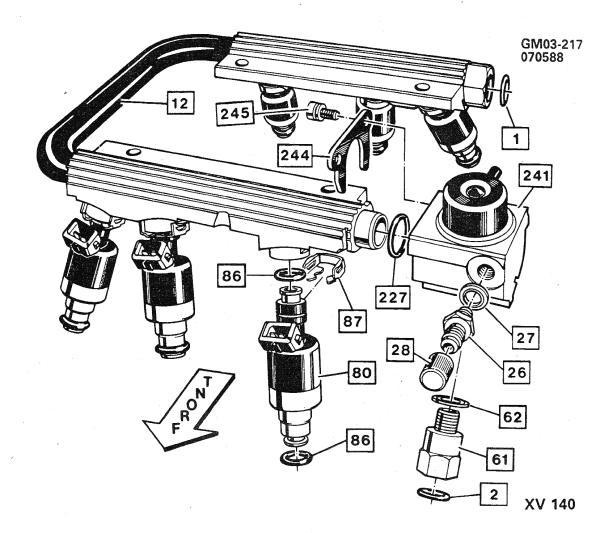

Fuel Rail Assembly Detail
Fuel is delivered by an extruded aluminum rail and metered into the intake port of each cylinder once every engine revolution.  A regulator on the rail maintains a constant pressure depending on the demands of the engine.
Detail Views

Fuel Injector Assy
Fuel Rail Assy
Throttle Body Assy


Pressure Regulator Specs


Regulated Pressure
36 - 43 p.s.i.
1.      Seal, Fuel Inlet Line O-Ring (N.S.)
2.      Seal, Fuel Return Line O-Ring (N.S.)
12.    17112122  Rail Kit, F/Inj Frt and Rear (Incls Item 227)
26.    17069769  Connection Kit, Fuel Press (Incls Item 27)
27.    Seal, Fuel Pressure Connection (Part of Item 26)
28.    Cap, Fuel Pressure Connection
61.    17112118  Nut Kit, Fuel Return (Incls Item 62)
62.    Gasket, Fuel Fitting (Incld in Item 61)
80.    17069769  Injector, Fuel W/Clip (Incls Item 87)
86.    17111266  O Ring Kit, Injector Nozzle (Contains 2 Seals)
87.    17111800  Clip Kit, Inj (Contains 5 clips)
227.  Seal, Rail to Regulator Base (Part of Item 12 & 241)
241.  17112117  Regulator Kit, Fuel Pressure (Incls Item 227)
244.  Retainer, Reg (Part of Item 245)
245.  17112119  Screw Kit, Assortment F/Inj (Incls Item 244)
