--- a Simple Collection of Project Schematics ---
     This page loads slowly

for developmental details goto the specific pages for each schematic (click)

***



1.  Pre-Amp
2.  Roofing-Triad Differential Filter
3.  Active-Log_limiter
4.  Quad-MFB audio filter , variable f()
5.  Double-Notched Differential-Phase Filter
6.  Sharp Q20 MFB variable Filter
6.  Audio out 0.5 W class-B



   Each module presented can be constructed on a proto-board

    and used as a stand-alone circuit.
Intra-State impedances are well matched
Standard  Signal  Input/Output  is 1 V audio



for developmental details goto the specific pages for each schematic (click)





******************************************************************************************************************





 Summary:
This is a Research Project about  Phase-Filters for Narrow Channel CW reception,



   This is a Study about Differential Phase-Filters and includes these topical sections :
    Roofing Triad Filter    &
   Active Log-Limiter    &    MultiFeedBack Filters    &   Differential Phase Filters   &   Audio Amp.

       ***
       *** Designed for Easy Construction and Easy tuning and Superior CW audio filtering.
       *** Constructed and used daily for Amateur Radio CW (morse code) Operations on the Radio Bands.
       *** The AFX CW audio filtering has near Digital Signal Processing quality as presented to the Ear.
      *** The vintage  LM324 OpAmp was chosen because the project frequency response and gain requirements are within bounds.

       *** Note that OpAmp null and balance trim-pots are not shown, and common by-pass caps not shown.
       *** (1) for simplification
       *** (2) circuit designs are self-balancing and produce symetrical waveforms.


  _

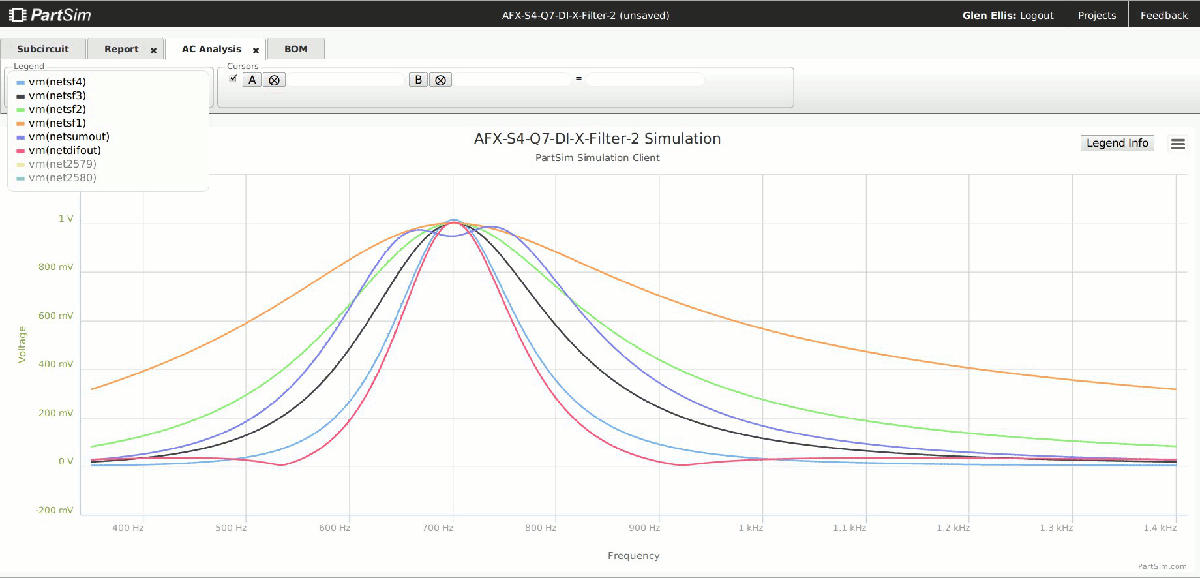

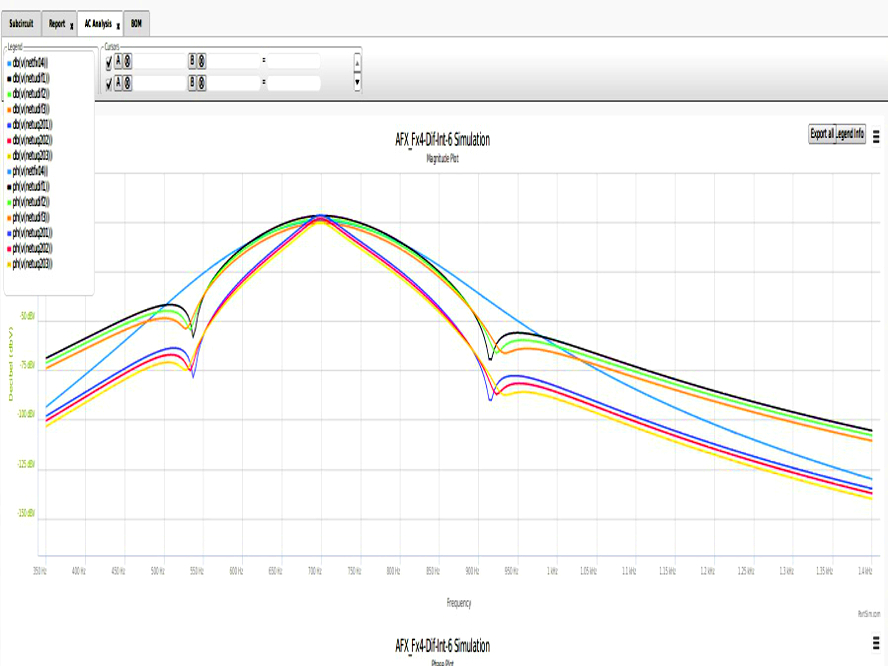

Left is a Magnitude Plot of a typical  Dual-Notch Circuit.                           Right is a Bode Plot of a typical PassBand group.










******************************************************************************************************
This is the basic equation for the Multiple-FeedBack active filter which is used dominantly.
Advantages are simple f(0) variation, which allows easy alignment of filters.
R(2) is the only component that needs adjustment for a +/- 20% change.
    [Q will change only as the square-root of the delta-f(). ]


##################################################

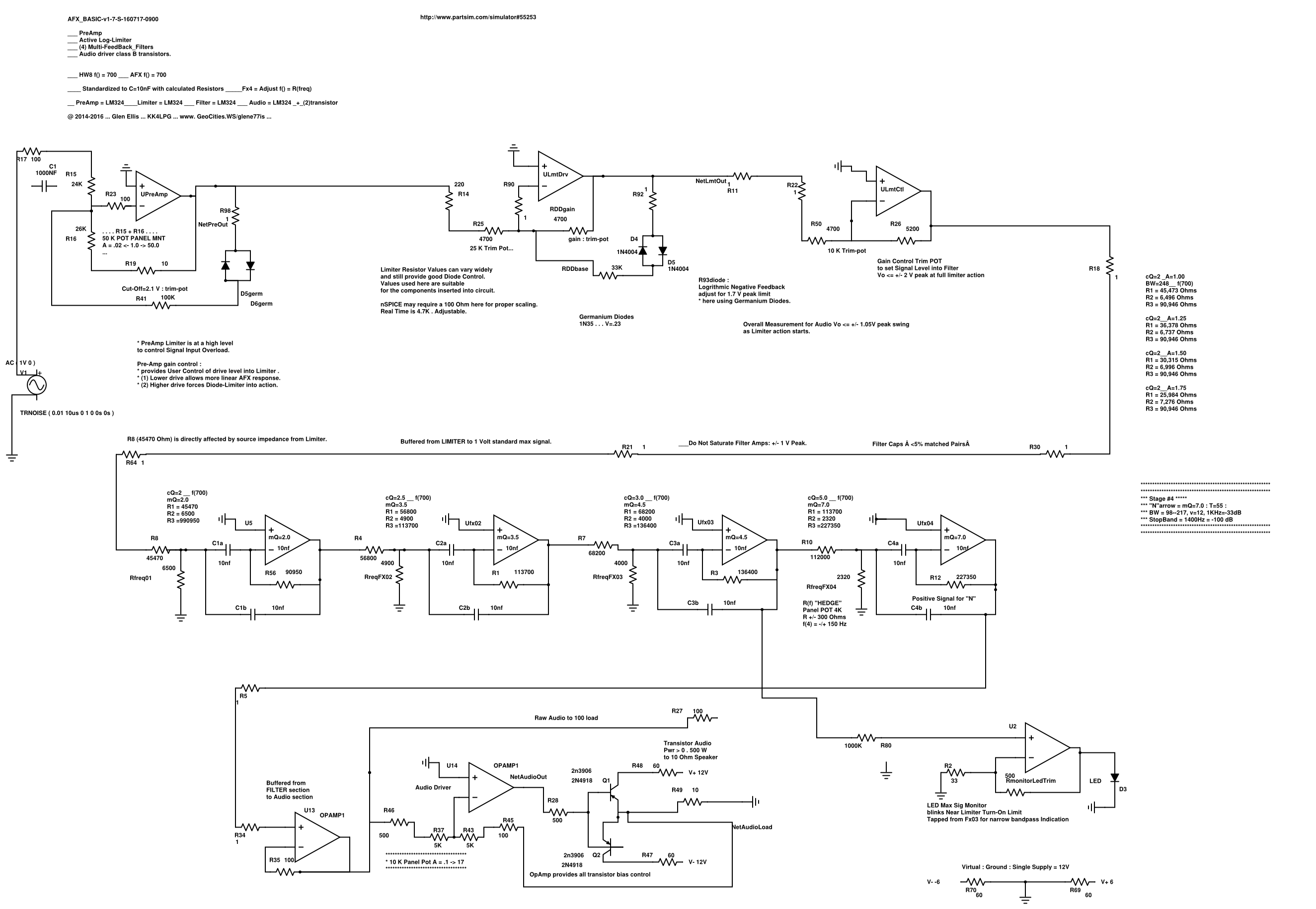

   the   AFX  B.A.S.I.C.  Schematic
(first version)





****************************************************************************************************************************
 the

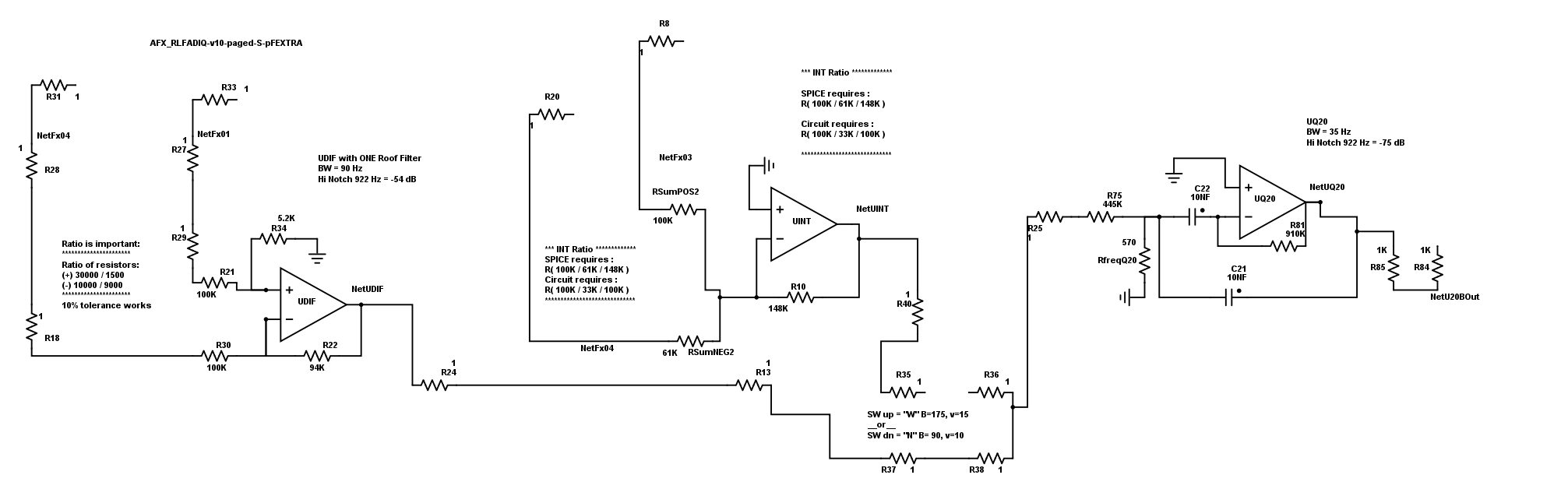

 AFX'V'   Single Roof Filter   Schematic
with Narrow Dual-Notch and Wide-Integrated Stages
Early version


===========================================================================

 the    AFX'V'  with  Variable f() PassBand   Schematic  (Best of Class)
with Manual controlled Variable f(0)
Three Roof Filters
(advanced version)







***************************************************************************************************************************

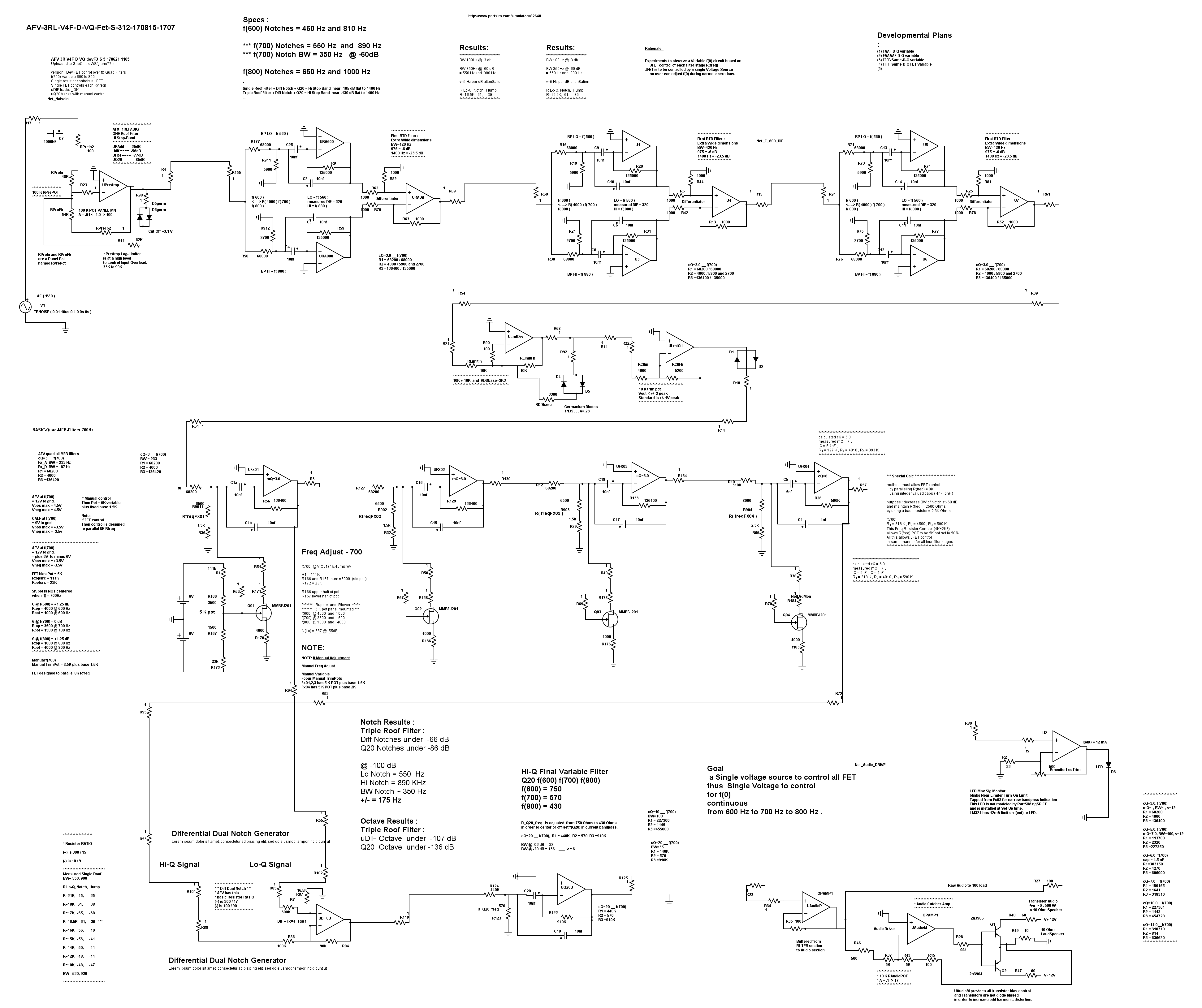

 the    AFX'V'  with Variable f() PassBand     (Best of Class)
with jFET controlled Variable f(0) and Three Roof Filters
(advanced version)


**************************************************************************************************************************

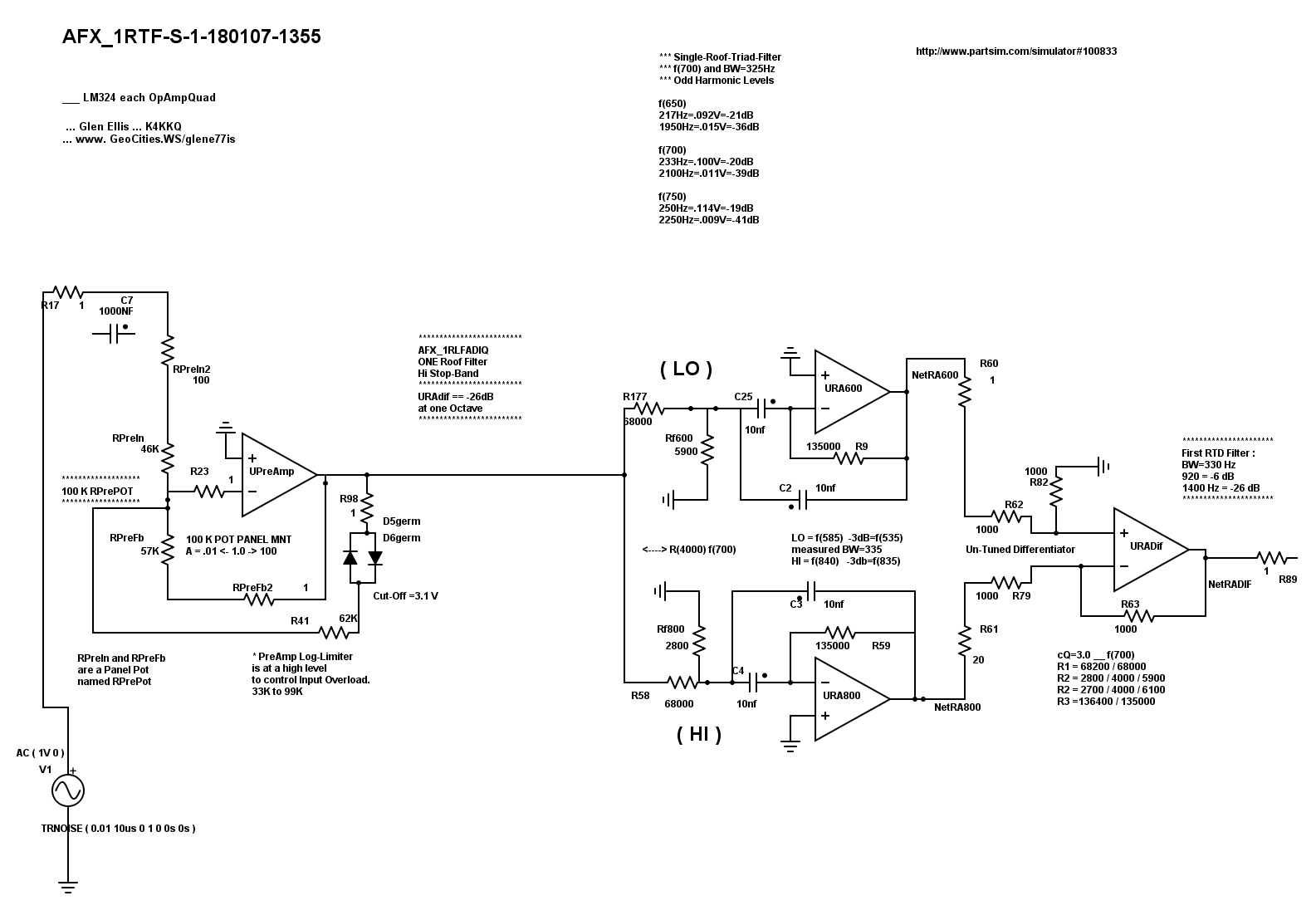

the   AFX  Roofing-Triad-Filter

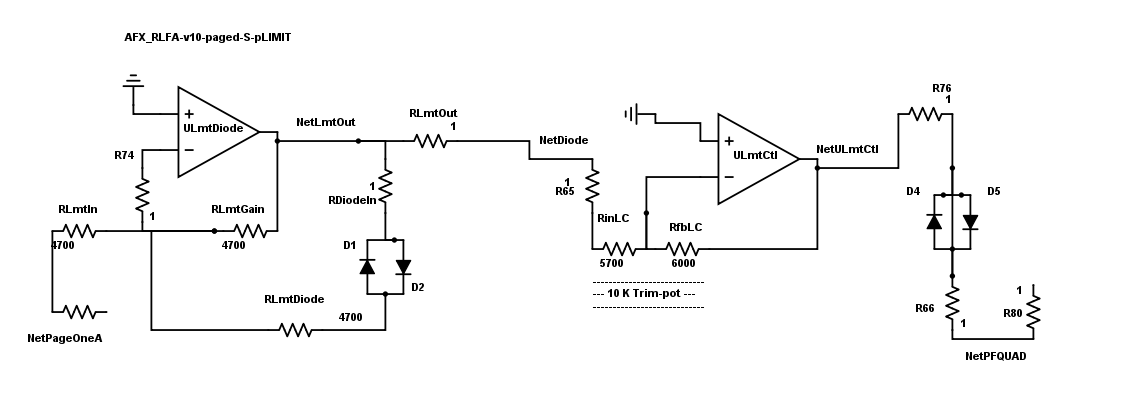

the   AFX  Active Limiter

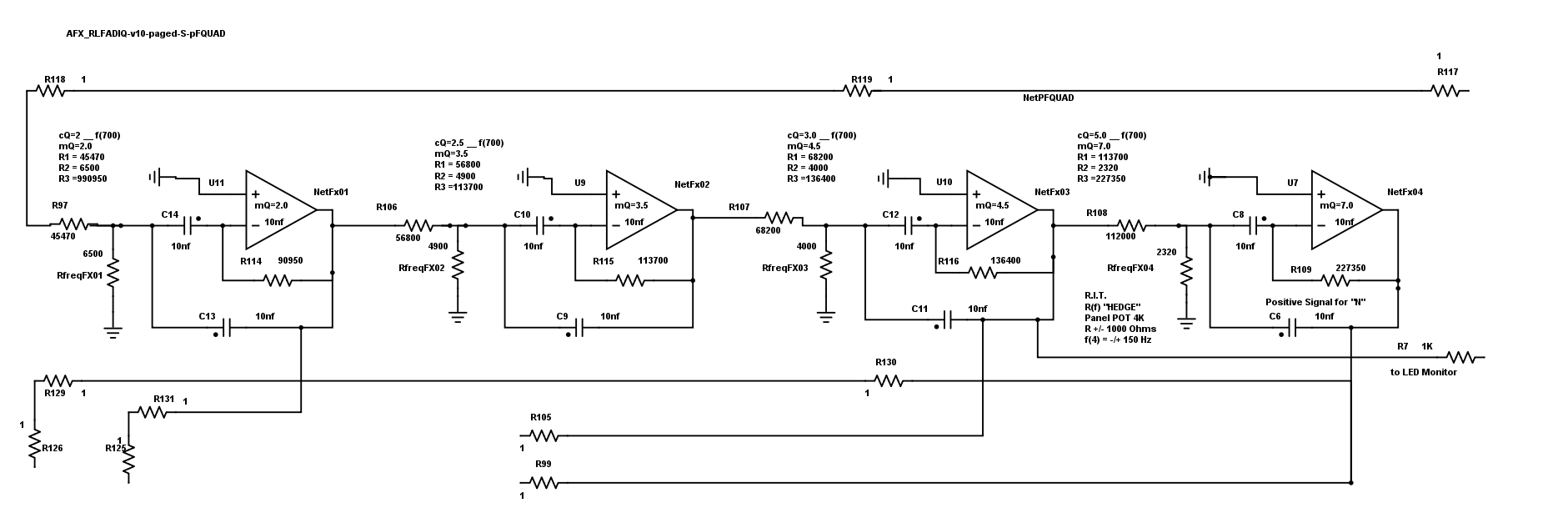

the  AFX  Quad-MFB Filter details
Multi-FeedBack Active Filter Standard
(early basic version)

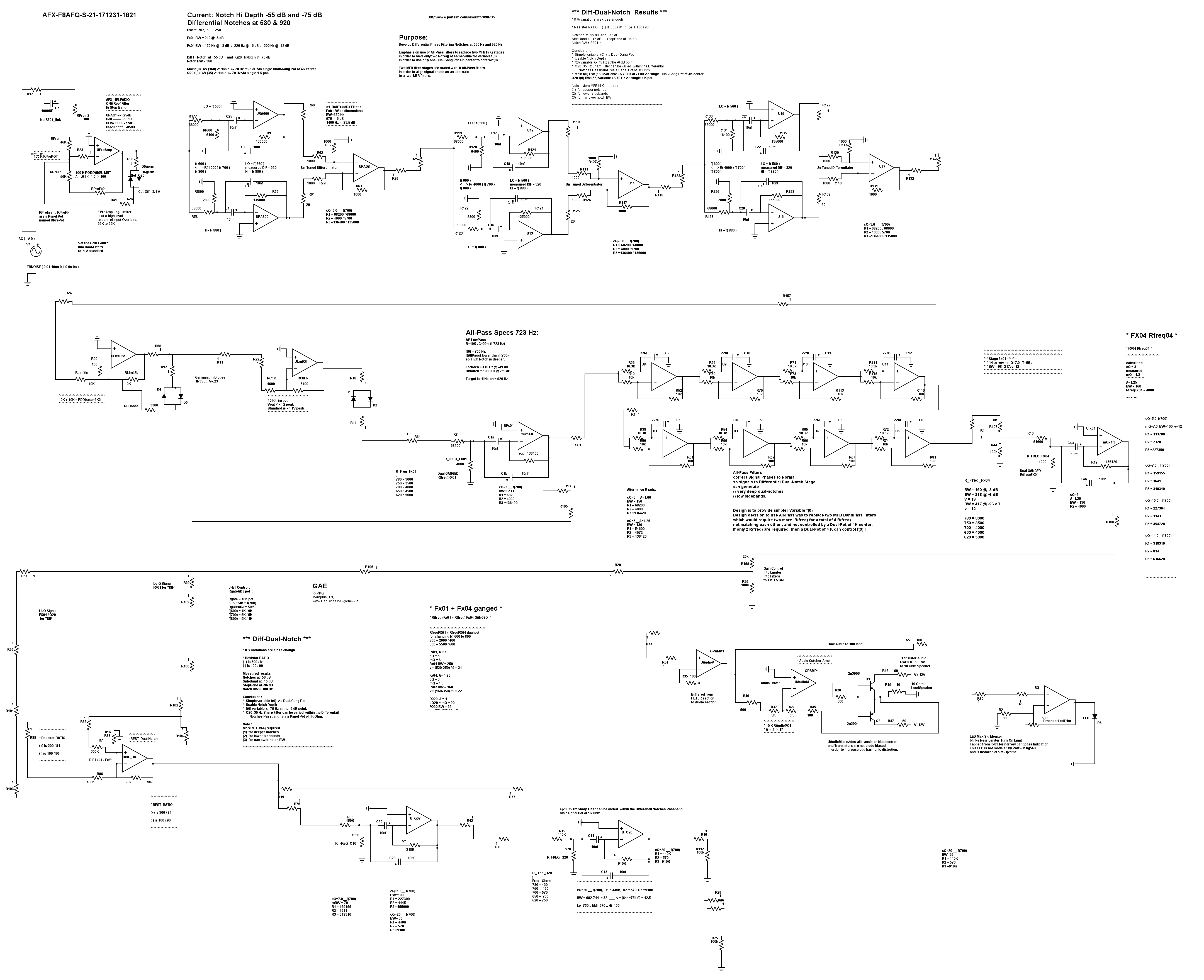

the   AFX  Differential-Phase Filter  and Q20 Sharp filter

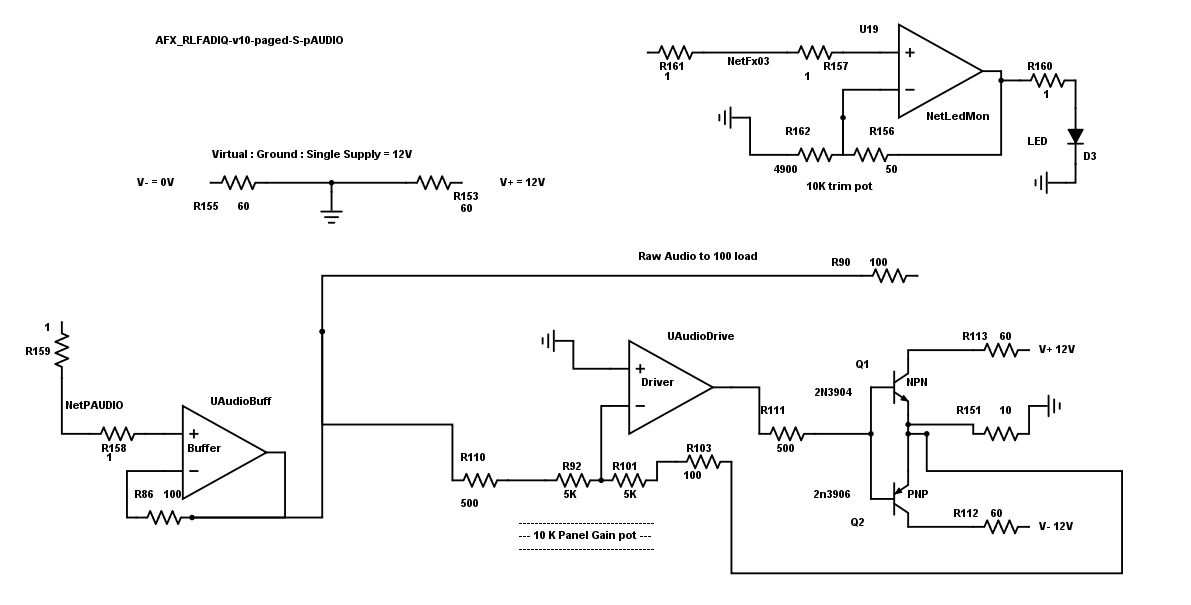

The AFX Audio Driver
(with forced 3rd harmonic distortion)








  ******* Manual Tuning  via Four 5K panel mounted pots.
    ******* designed to control all four Filter f(0), manually, for initial set-up.

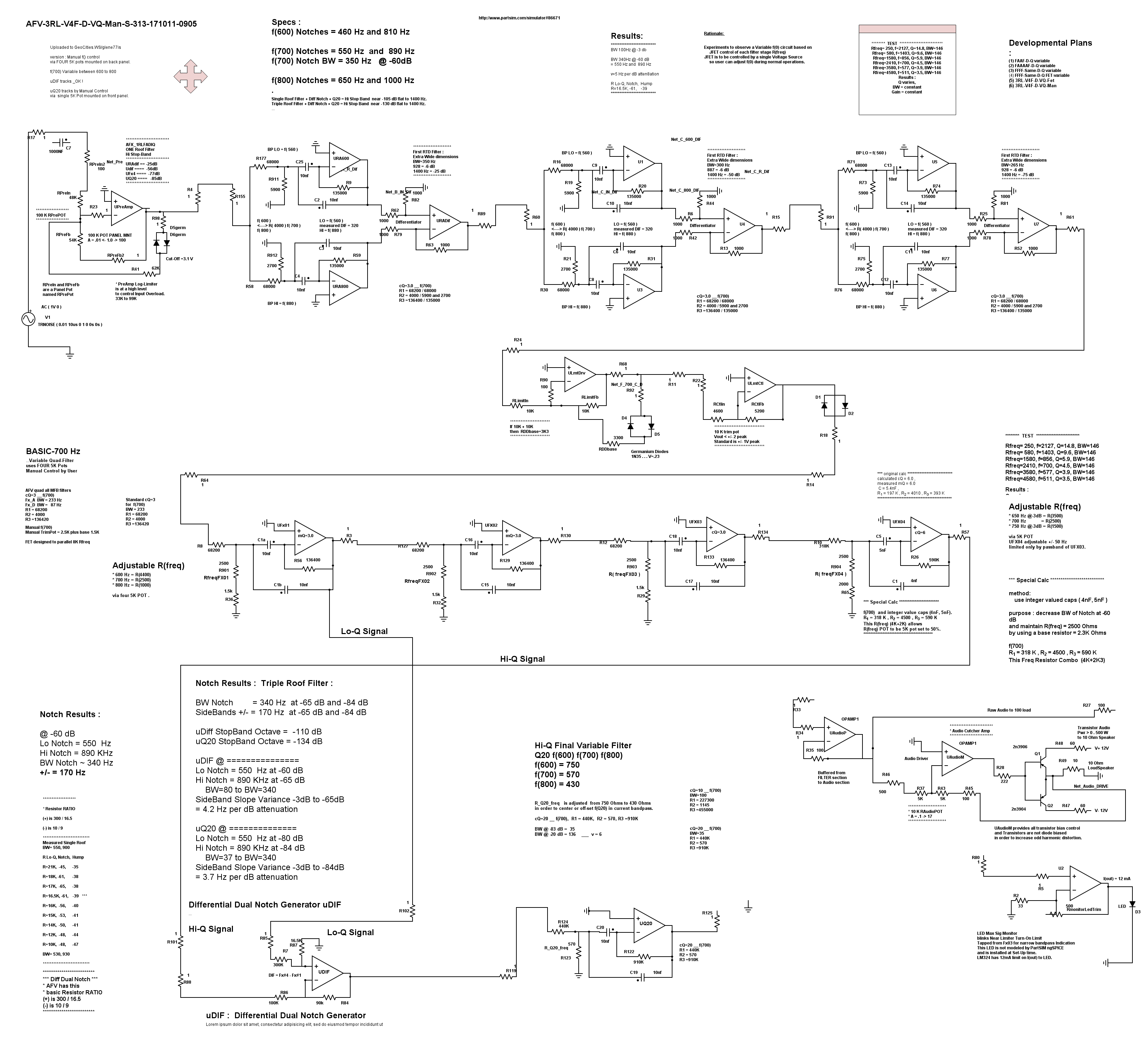

*** AFV_3RL-v2F-vQ-v1-S  design :

***  (1) with Three Roof Filters
***  (2) with only Two MFB filter stages ( not sufficient for dual notch )
***  (3) with R(freq) controlled by a Two-Gang Pot
***








Schematic shows

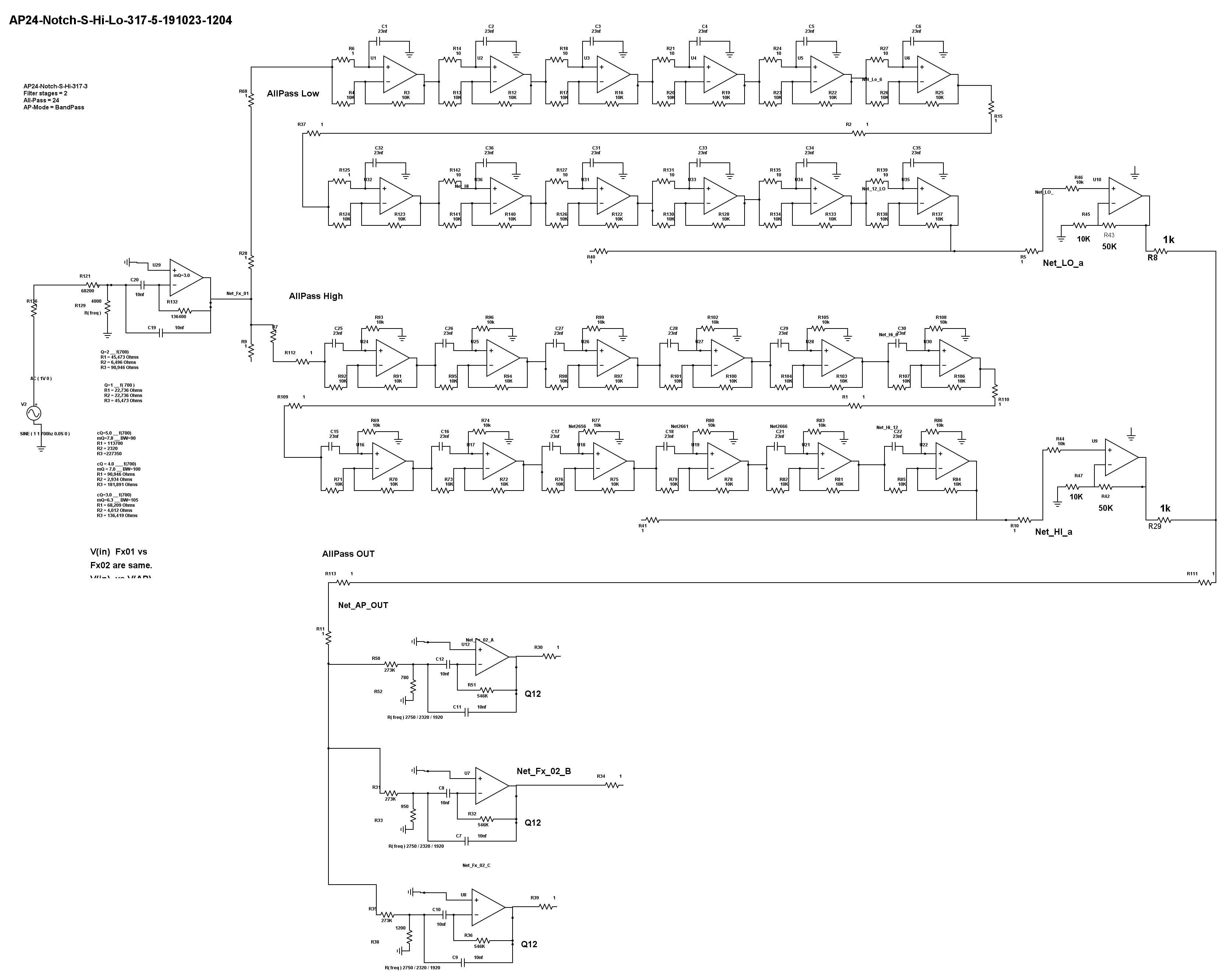

24 All-Pass filters
used to
replace two MFB Active PassBand Filters

*** results are Very Good




Schematic shows
8 All-Pass filters
used to replace two MFB Active PassBand Filters

*** results are Usable, OK.
*** Compared to the "AFV-3RL-V4F-D-VQ" version
(1) BW @ -3dB is wider ; 160 Hz vs 80 Hz.
(2) Dual Notch BW is wider ; 380 Hz vs 330 Hz.
(3) Variability of f(0) is much narrower ; +/- 50 Hz  vs +/- 100 Hz
