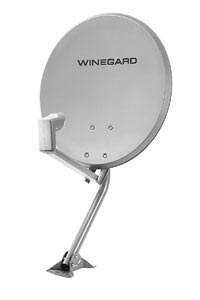

 Winegard 75CM Dish
|
|
|
| Mechanical |
| Effective aperture |
76 cm (29.9 in.)
|
| Antenna height |
87 cm (34.3 in.)
|
| Antenna width |
80 cm (31.5 in.)
|
| Galvanized steel |
20 ga.
|
| Weight, antenna only |
4.18 Kg. (9.8 lbs.)
|
| F/D |
.59
|
| Offset angle |
24°
|
| Focal distance |
44.6 cm (17.56 in.)
|
| Surface accuracy |
.016 - .020 in. ave.
|
| Elevation range |
10° to 90°
|
| Mounting options |
Universal
|
| Electrical |
| Frequency range |
10.95-12.75 GHz
|
|
Gain at mid-band |
|
11.2
|
12.1
|
12.6
|
|
37.6 dBi
|
38.3 dBi
|
38.7 dBi
|
| Aperture efficiency |
73%
|
| Cross polarization (on axis) |
-21 dB |
| Beamwidth at -3 dB |
2.4°* |
| Beamwidth at-10 dB |
4.0°* |
| Environmental |
| Wind loading |
|
| - Operational |
80.5 Km/hr. (50 mph.) |
| - Survival |
161 Km/hr. (100 mph.) |
| Atmosphere |
10 yrs. |
| Feed support models |
|
|
DS-2076 - w/Universal feed support
(clamp size 23, 25, 35, 40, 50 mm)
|
| |
|
