Bluetooth USB Dongles
Our Bluetooth Supplier
www.bluetoothdongle.com

INTEROPERABILITY

Interoperability is the soul of Bluetooth technology. Devices that pass the Bluetooth qualification may communicate with each other without issues of compatibility. WS Wireless Bluetooth USB Dongle can work with mobile phones, PDAs, headsets, printers, and many other Bluetooth-enabled devices.


RELIABILITY




Bluetooth implements FHSS (Frequency Hopping Spread Spectrum) technology, which provides a highly reliable radio link in 10-meter range. Embedded ceramic chip antenna provides high-quality radio signal and less influence from environmental deviation.


SECURITY



128-bit encryption and Link Manager authentication means Bluetooth devices are identified by the unique 48-bit BDA (Bluetooth Device Address) and PIN, and pairing must be accomplished before any connection made. So user can exchange information securely.


SIMPLICITY

WS Wireless Bluetooth USB Dongle is USB 1.1 Plug-and-Play compatible. Just plug the Dongle into USB port of your notebook or desktop PC, Windows will find the necessary driver and install it. The process is point-and-click simple.

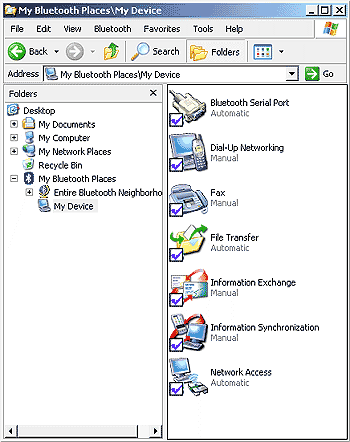

My
Bluetooth Places

This is where all the fun begins. Double clicking the new icon brings up the 'My Bluetooth Places' window. Within this menu you can change configuration settings, as well as browse the local Bluetooth network displaying available services, similar to 'My Network Places' in Windows XP. You can enable and disable services which your system allows connection to under 'My Device Properties'. There are a number of services which you can serve from your system.

Bluetooth Serial Port. Establishes a Bluetooth wireless connection between two devices. The connection may be used by application as though a physical serial cable connected the devices.

Dial-Up Networking. Bluetooth client can dial-up to Internet by using a modem that is physically connected to the Bluetooth server.

Fax. Bluetooth client can send a fax wirelessly by using a Fax machine that is physically connected to the Bluetooth server.

File Transfer. When File Transfer service is established between two Bluetooth devices, you can easily browse, drag/drop, open print, cut/copy, paste, delete, or rename files/folders in local and remote directories.

Information Exchange. This service allows two Bluetooth-enables devices exchange personal information manager data such as business cards, calendar items, email messages and notes.

Information Synchronization. This server allows two Bluetooth-enabled devices to synchronize Personal Information Manager data with each other.

Network Access. Established a wireless connection between the client and a server that is physically connected to the Local Area Network (LAN). If the client has permission from the server, the wireless connection can be used as if the client were hardwired to the LAN.

WS Wireless Bluetooth Dongle Specification

1. Feature

Bluetooth TM  v1.1 compliant, Support USB/ UART/ PCM interface,

4 dBm Class 2; 10 meter working distance, Support Device Firmware Upgrade,

Modulation: GFSK, Bluetooth Protocol layers support up to HCI,

Connect Mode: Active, Hold, Sniff, Park, Data Rate: 723 kbps (Max).

2.Hardware Description

Chipset

CSR Bluetooth Chipset BC02

Dimension

64 x 16.5 x 6 mm

Weight

7g

Flash Memory

4MB

Receiver Sensitivity

-80dBm (Single slot BER = 0.1%)

Frequency Range

2402 ~ 2480MHz, in 2.4GHz license

Carrier Frequency Drift

±25KHz (Single slot packet)

Power



Power Supply

5.0VDC USB bus-powered

Operation Voltage

1.8V for core logic, 1.8V for RF, 3.3V for I/O

Power Consumption

(T=25°)

Peak current in ACL data transfer 720Kbps = 55mA

Peak current in SCO HV1 connection = 60mA

Stand by current = 100μA

Radio Output Power

0dBm (Bluetooth Spec. 1.1 class 2 device)

Antenna



Antenna Type

High-performance solid-state LTCC chip DRA(Dielectric Resonance Antenna)

Impedance

50 ohm

Gain

0 ~ 2 dBi

VSWR

2 max

Polarization

Linear

Azimuth Beamwidth

Omni-directional

USB Connector

Type A

3.Software Description



Software

WIDCOMM

Support for Windows 98, 98SE, ME, 2000, and XP

4. Supported Profiles

Generic Access Profile

Serial Port Profile



LAN Access Profile

Dial-up Networking Profile



Service discovery app profile

File Transfer Profile



Object push profile

Synchronization profile



Headset profile
