Disassembling video camera

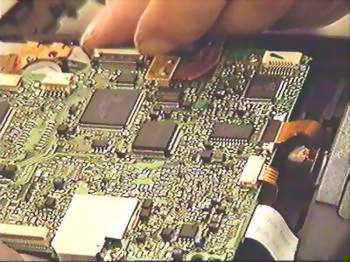

| 1 | Panasonic RX11video camera .... Start to remove cover, screws and plastic tightener .... | 2 | After removing camera cover, start to disconnect all connectors from mother board... Pay more attention when you are doing this task, tape connectors are very delicate and can by easy to damage it .... |
|
|
|
||
|
3 |

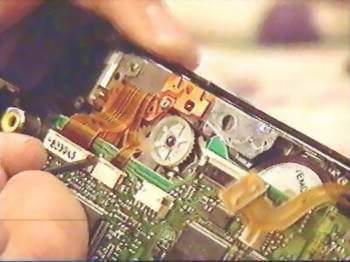

Use one suitable small watch screwdriver for loosing plastic head connector... Remember !!!! be gentle.... |
4 |

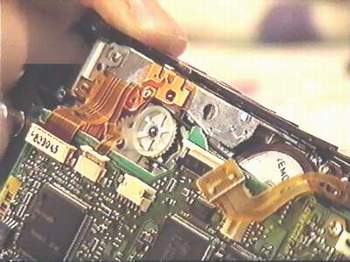

Now, you can remove easy plastic head connector... |
|
|
|
||
|
5 |

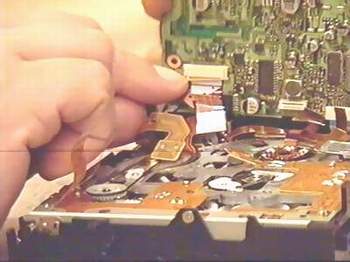

After disconnecting all connection, remove mother board.... |
6 |

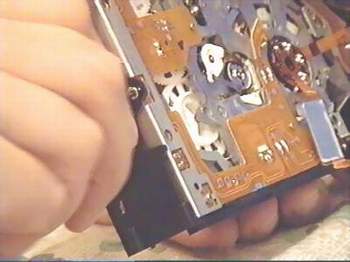

Remove all screw which are fixing recording system mechanism on the chassis.... |
|
|
|
||
|
