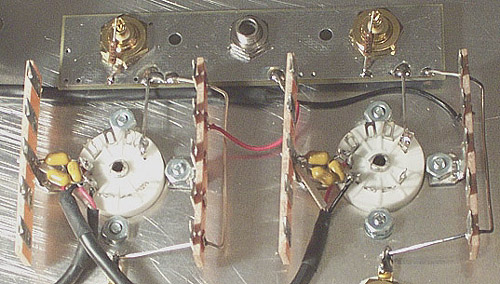

The following picture shows you the ground wiring from the RCA input jack grounding tabs going to terminal 14, 45 , 31, 35, ground plane R, I, respectively. Also shown here are the two 47K5 Dale resistors from the RCA input center poles to the ground plane (as seen below): |
|
|
|
 |
|
|
|

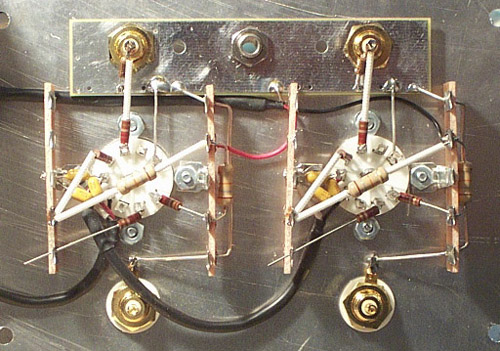

The next following pictures show you the grid and plate stopper resistors from RCA input jack center tabs to tube pin socket#7: |
|
|
|
 |
|
|
|
 |
|
|
|

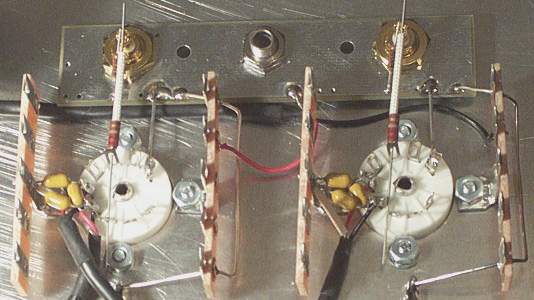

(Refer to page 32, 33): the picture also shows the 18K resistors connecting from the 34 to terminal 27, 44 to terminal 37, , 42 to 44, 32 to 34,respectively (the latter 2 resistors are hidden on the right side of the terminal strip). |
|
|
|
|
|
|
|
|
|
|
|
