Drawing details:

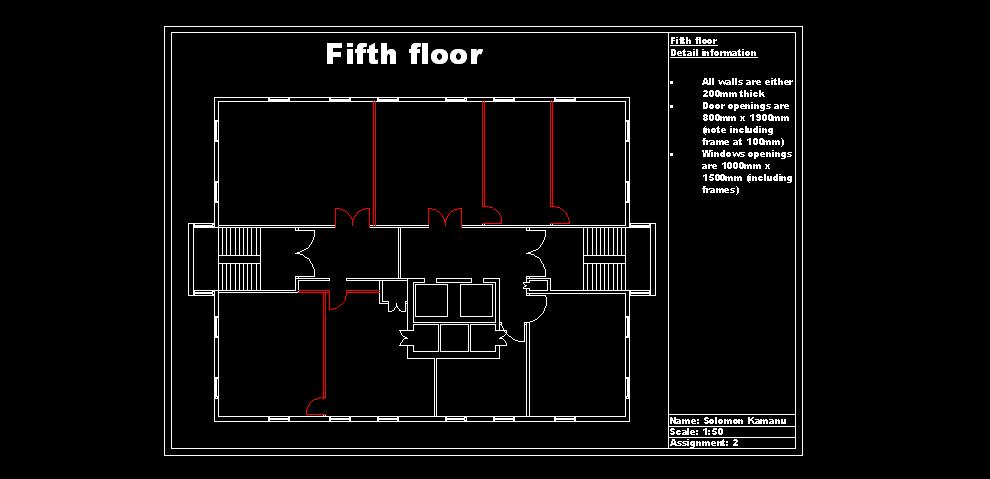

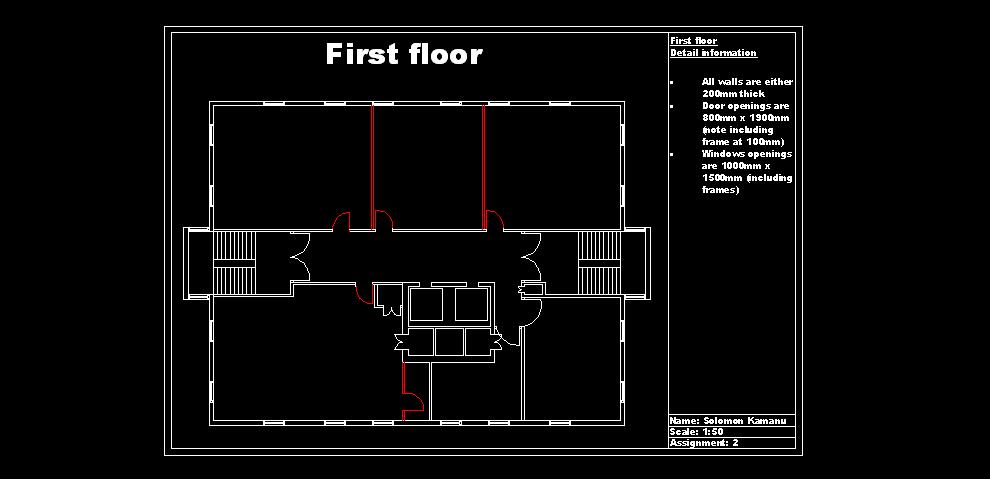

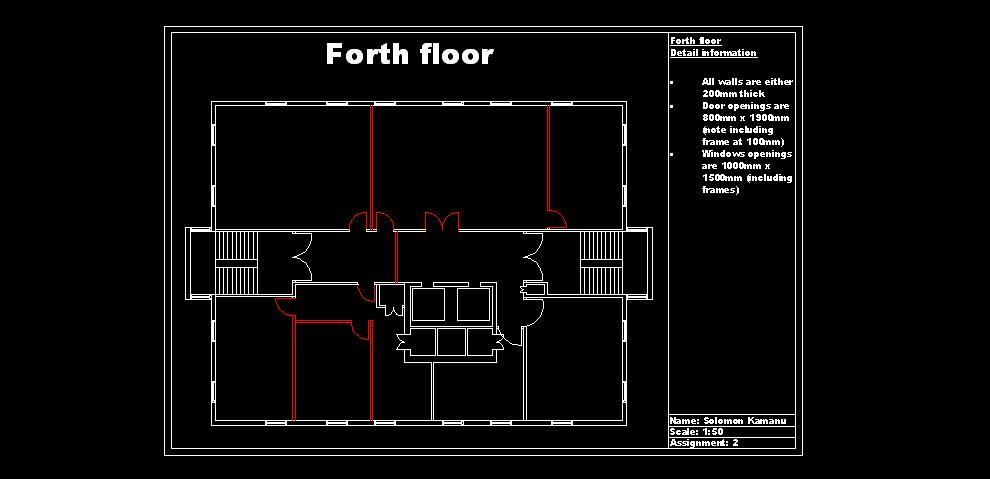

Element 1 was a practical drawing exercise, where I had to create the plans for a seven storer building. We were given two sessions (6 hours) to do the drawings which were on a set of A3 papers. Dimensions were not included so we had to use a scale rule at scale 1:100. All the drawings I completed are shown below.
