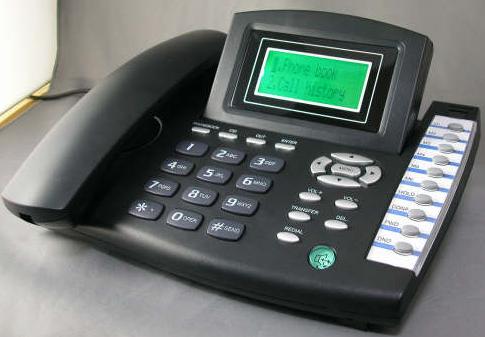

DGP301 - IP Phone (Robust • Solid)
DGP301-O - IP Phone with FXO Port

 Key Features

DGP301

¡P Customizable Display View Angle - Adjustable  LCD Panel

¡P Support SIPv2 - Industry Standard

¡P Excellent Voice Quality - Support   G.711a/u,   G.723, G.726,

  G.729A/B

¡P Speakerphone with Volume Adjustment Keys

¡P Zero Configuration - Auto Provisioning Support

¡P Three-Way Conference support

¡P Power-Over-Ethernet (POE) Support (Optional)

¡P Using same phone for both VoIP and Landline (DGP301-O)

 Function Specification

 Network Protocol
 * SIP v1(RFC2543), v2(RFC3261)
 * IP/TCP/UDP/RTP/RTCP ¡@* IP/ICMP/ARP/RARP/SNTP
 * TFTP Client/DHCP Client/PPPoE Client
 * NAT/DHCP Server ¡@¡@¡@* Telnet/HTTP Server
 * DNS Client/DDNS/VLAN
 Voice Quality
 * VAD/CNG//LEC ¡@¡@* Packet Loss Compensation ¡@
 * Adaptive Jitter Buffer
 Codec
 * G.711/G.723.1/G.726/G.729A/G.729B
 DTMF Function
 * In-Band DTMF ¡@* RFC 2833 DTMF ¡@¡@* SIP Info
 Phone Function
 * Volume Adjustment¡@¡@* Speed dial key
 * Phone book ¡@¡@¡@¡@¡@* Flash
 IP Assignment
 * Static IP/ DHCP/PPPoE
 NAT Traversal ¡@¡@¡@
 * Web Browser¡@¡@¡@¡@
 QoS
 * ToS field
 Firmware Upgrade
 * TFTP/Console/HTTP
 Auto-Provisioning
 * FTP/TFTP/HTTP
 Dial Plan
 Other Features
 * Hotline support
 * Alarm support
 * Embedded  Open Source IP PBX Support
 * IP PBX Support

DGP301

 Physical Specification

Network Port

1 WAN Port, 1 LAN Port

Dimension:

320 (L) x 200 (W) x 100 (D) mm

Net Weight/Gross Weight

150g / 200g

Power Input

5V DC 1.0A

Operating Temperature

5 C - 45 C

Storage Temperature

-25 C - 85 C

 Package Content

  • Input 100-240V (50/60Hz) Power Supply, Output DC 9V/500mA

  • Network Cable

  • CD-ROM with Electronic User Manual
