· Provides 1 Analog Phone Port and 1 FXO Port

(1 FXS + 1 FXO)

· One Phone for both VOIP and Landline callings

· Support Call Forward from VOIP to your mobile

· Support Toll Pass with Auto-Answer Support

· Support One LAN port and One WAN port

· Support G.711a/u, G.723, G.726, G.729A and G.729B

· Support 3 SIP accounts (Can be used at the same time)

· Built-in Router Function and Support ADSL Modem and

Internet Sharing

Basic overview

ATA-X86SO Voice Over IP Adapter allows you to get telephone service through your high-speed Internet connection via a VoIP service provider. It provides two standard independently numbered phone jacks that deliver voice and fax service over your cable or DSL Internet connection, so you can enjoy clear-sounding voice service while simultaneously navigating the Web. When you use your high-speed Internet connection to make phone calls, you will lower your monthly phone bills and add services and features not available with traditional phone service

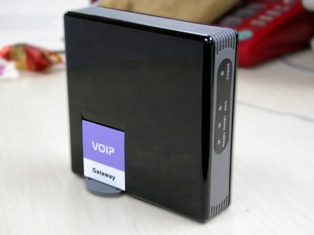

Front Panels Back Panel

ATA-X86SO

Function Specification

Network Protocol
* SIP v1(RFC2543), v2(RFC3261)
* IP/TCP/UDP/RTP/RTCP 　* IP/ICMP/ARP/RARP/SNTP
* TFTP Client/DHCP Client/PPPoE Client
* NAT/DHCP Server 　　　* Telnet/HTTP Server
* DNS Client/DDNS/VLAN
Voice Quality
* VAD/CNG//LEC 　　* Packet Loss Compensation 　
* Adaptive Jitter Buffer
Codec
* G.711/G.723.1/G.726/G.729A/G.729B
DTMF Function
* In-Band DTMF 　* RFC 2833 DTMF 　　* SIP Info
Phone Function
* Volume Adjustment　　* Speed dial key
* Phone book 　　　　　* Flash
IP Assignment
* Static IP/ DHCP/PPPoE
NAT Traversal 　　　
* Web Browser　　　　
QoS
* ToS field
Firmware Upgrade
* TFTP/Console/HTTP
Auto-Provisioning
* FTP/TFTP/HTTP
Dial Plan
Other Features
* Hotline support
* Alarm support
* Embedded Open Source IP PBX Support
* IP PBX Support
