YOKE CONSTRUCTION

(Go to the yoke information page)

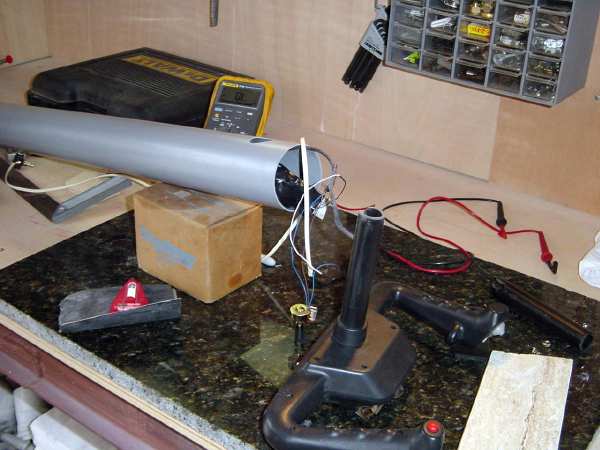

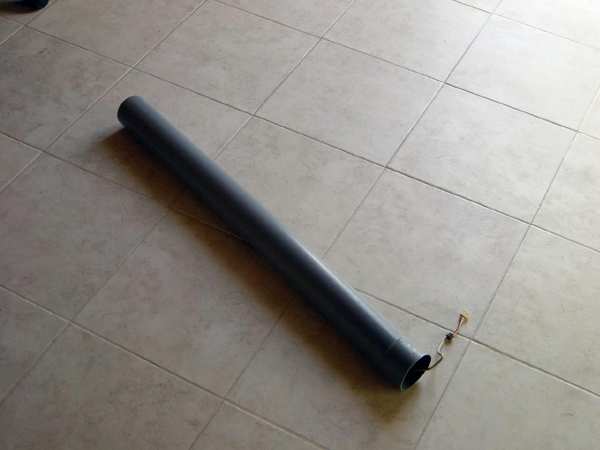

Water drainage tube wih 70mm diameter used for the main column

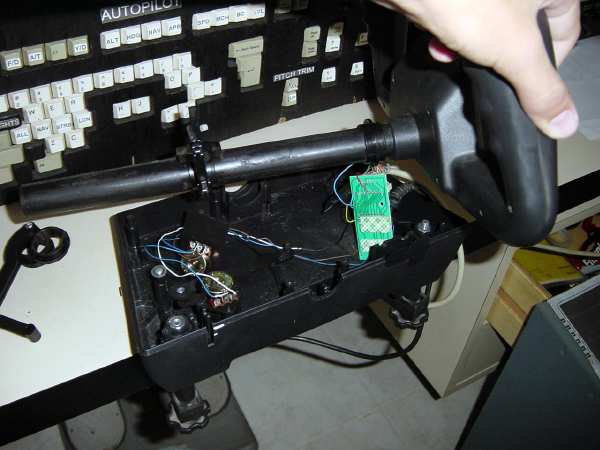

Disassembled CH Yoke

All the electronics are located inside the column somewhere under the yoke

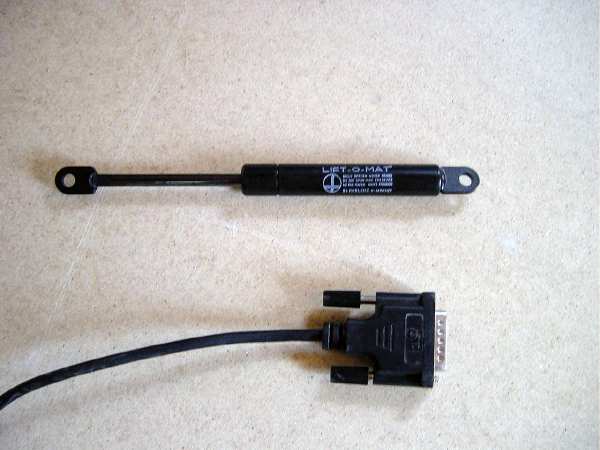

5 kilogram gas springs were used for the yoke resistance

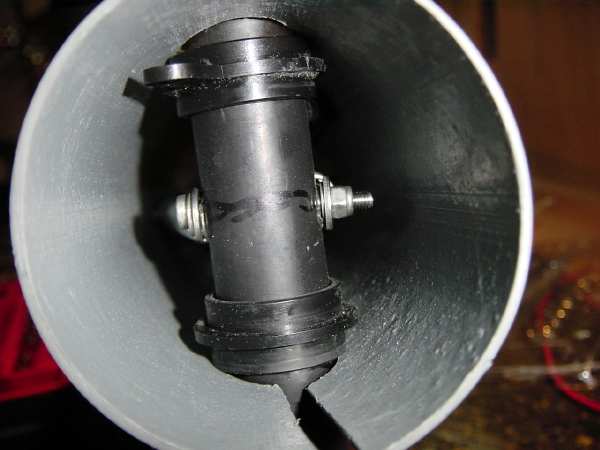

The bolts hold the springs for steering resistance. The piece of plastic on top is for the detents.

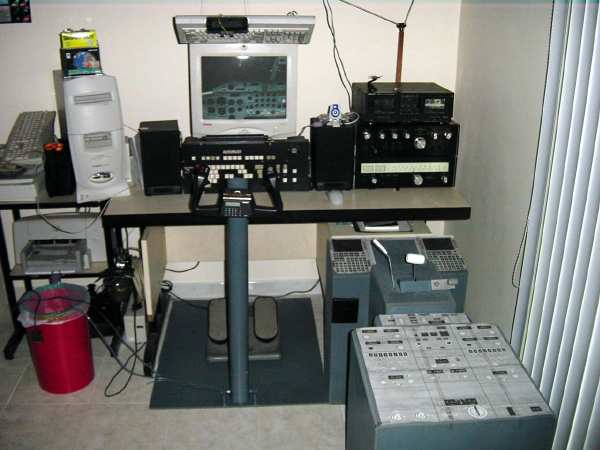

Final yoke setup

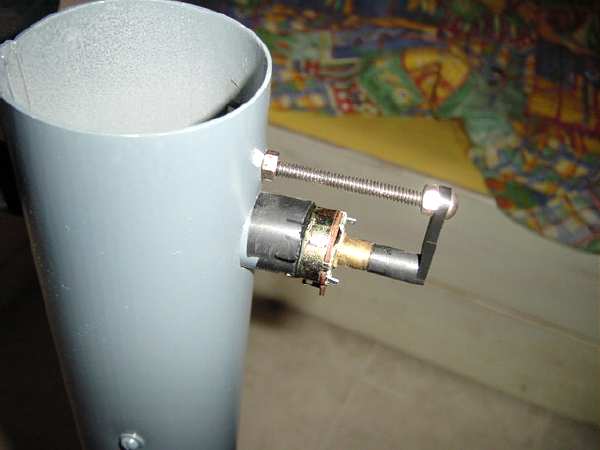

Ailerons potmeter

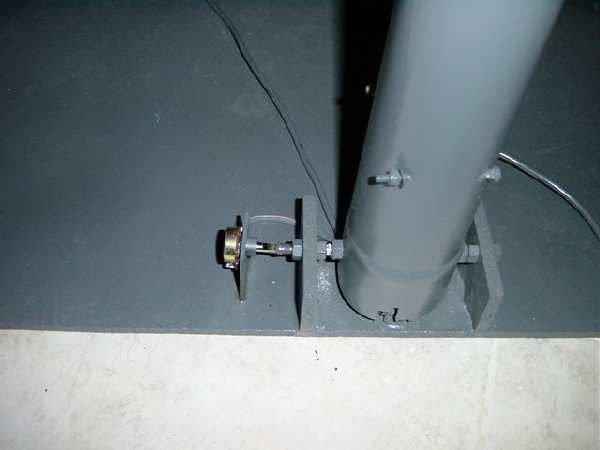

Elevator potmeter
