LEE
ENFIELD RIFLE
You may think that Rifles are no
good, but they are when used correctly. The Lee
Enfield was an excellent and very long-ranged rifle,
used by the British and commonwealth armies for a
long time. Production ran from 1888 to 1977, in
various marks. In particular, a volley of unsuspected
rifle fire is devestating, we plan to exploit this
when the game starts...
Rifle, Short, Magazine Lee Enfield
(SMLE) Mark 1 -- Introduced in 1906. The British
army, but not the KRRC, still had many of these in
service.
Rifle, Short, Magazine Lee Enfield
Mark 3 -- 1907, different sights. A wartime version
for WWI had several mods for ease of manufacture.
This was the main weapon of the KRRC in 1940, the
wartime mods were not present as they were all
introduced into the manufacture after Dunkirk.

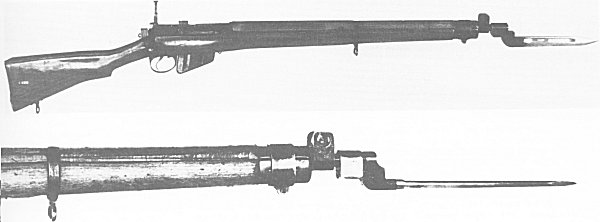

Rifle, Short, Number 4 Mark 1,
Short, Magazine Lee Enfield - 1941. Top shown
mounting Bayonet Number 9, bottom blow-up mounts
"Pig-Sticker" bayonet. The KRRC was equiped
with these from 1941, although significant numbers of
previous versions were used untill the Lee Enfield
was phased out, over a decade after the war's end.
The "Pig-Sticker" bayonettes were used by
the British rifles, with commonwealth versions more
commonly using the other types.
- |
Mark 1 |
Mark 3 |
No. 4 Mark 1
|
- |
Barley Corn
foresight Tangent Leaf Rear |
Blade foresight
Tangent leaf Rear |
Blade foresight
Vertical leaf Rear |
Operation
|
Bolt Action |
Caliber |
.303 in, Rimmed
cartridge, 2.15in case length |
Muzzle
velocity |
2060 fps |
2440 fps |
2440 fps |
Ammunition |
Mark 6 ball, 215
grain bullet, 33 gr charge Mark
7 ball, 174 grain bullet, 36.5 gr
charge
|
Capacity |
detachable box
magazine, holding 10 rounds in two
columns
Normally loaded from stripper clip
|
Weight |
8.12 lbs,
unloaded |
8.62 lbs,
unloaded |
8.8 lbs,
unloaded |
Overall
length |
44.57 in
overall, 25.2 in barrel |
Rate of fire |
8-20 aimed
rounds per minute depending on skill |
|
British Commonwealth forces used
the Lee Enfield as their main rifle. Although bolt
action, its locking mechanism made it the fastest
bolt action rifle in the world. Its long service also
permitted its design to be optimized over time to
make it very rugged and reliable. It would have been
handy to have in the bitter sub zero temperatures of
later wars, where semi-automatic weapons refused to
work.
When the Short Magazine
Lee-Enfield was first introduced into British
service, it met with a storm of criticism -- though
little from the troops whom it served well during two
World Wars, Korea, and beyond.
As one vet, Vince Gilligan, 3rd
Battalion Royal Australian Army said: "... on
the Lee Enfield .303 rifle our mob(Australians) used
in Korea. The brits used a later version with the pig
sticker bayonet. We had the 18" bayonet (blued).
One of the rifles I had was made in 1917-1918. It was
a very effective weapon. At least if you hit
something, it stayed Hit."
And after all, that's the idea.
