* Cheap Antenna Mod For your WIFI Router *

Advantages :
1. No Pigtail Required 2. No Modification to AP (No voiding of warranty) 3. No Matching (SWR) Problems 4. No Purchased Parts 5. Trivially Easy Construction 6. Very Low Probability of Error 7. As Good As or BETTER Performance than the Pringles Can Antenna 8. Superior Front to Back/Front to Rear Ratio 9. Improves Wireless LAN Privacy 10. Reduces Interference This antenna is so easy to make. You just need:
CrossOver Cabel/Straight Cable

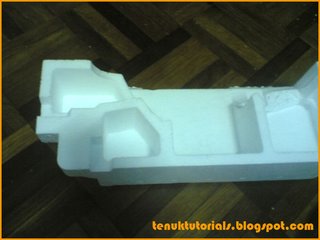

1. Piece of polystyrene (FREEBIE) :

Wireless Router

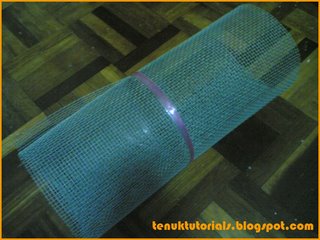

2. Reflector(U can use anything such as Pringles cans, large tin cans, wire screen, aluminum sheet, and tin roofing material). I use Aluminum Net (RM3):

Pci Wifi Adapter

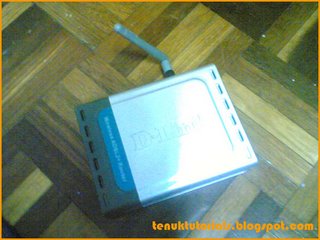

3. WIFI Router.Mine.D-Link DSL-2640T Wireless G ADSL2+ Router (RM200) .

Switch

4. First cut the polystyrene and aluminum net like pictures below.

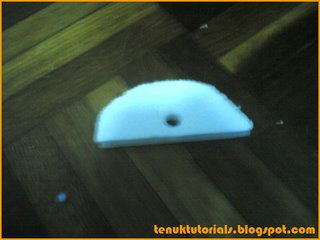

5. Make hole !!!

BackNext
