Outdoor Woodstoves
Heat Master
There are two lines of the Heat Master to choose from:

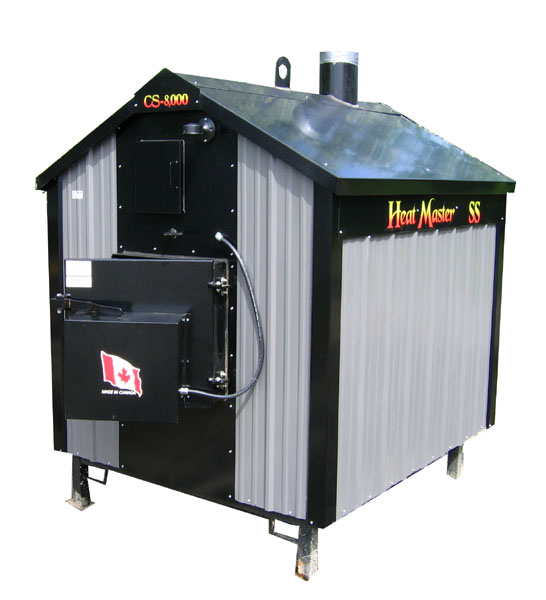

The SS Series (example on the left) is a traditional woodstove.  It features a complete round burn chamber with a surrounding water jacket.
It is available in three sizes: 3,000 sq. ft., 4,000 sq. ft., and 8,000 sq. ft.

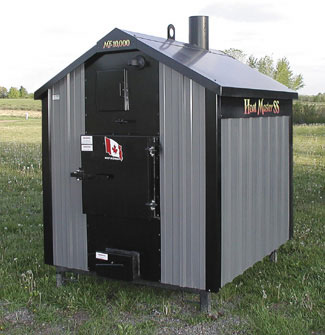

The MF Series (example on the right) is a multi-fuel stove.  Along with burning wood, it can also burn corncobs and coal, giving flexibility if wood isn't easily available.  It also features a round burn chamber surrounded by a water jacket, with cast iron shaker grates at the bottom of the burn chamber.
There are three sizes available: 5,000 sq. ft., 10,000 sq. ft., and 20,000 sq. ft.
Evergreen Line
The Evergreen Line is a multi-fuel stove that has the capability to burn wood, corncobs, and coal.  It utlilizes a modified round burn chamber and surrounding water jacket layout.  The burn chamber has cast iron shaker grates on the bottom, with a partial lining of fire bricks along the sides of grates.  It comes in three sizes: 4,000 sq. ft., 6,000 sq. ft., and 12,000 sq. ft.

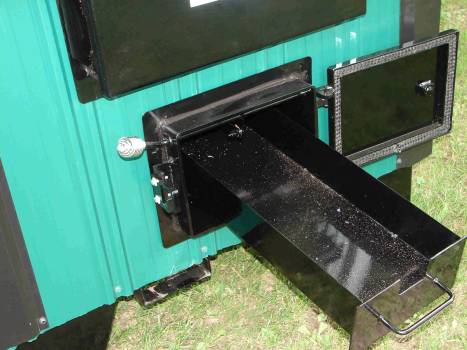

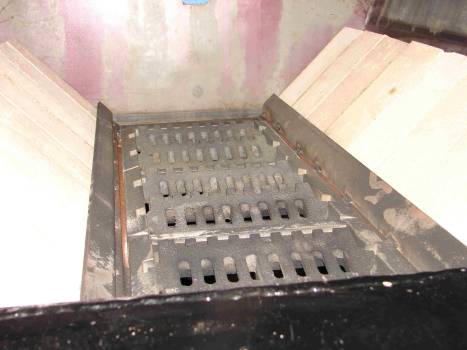

(Left) The shaker grates and fire brick lining; (Right) The ash drawer for easy removal.

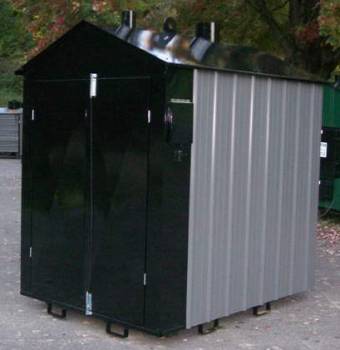

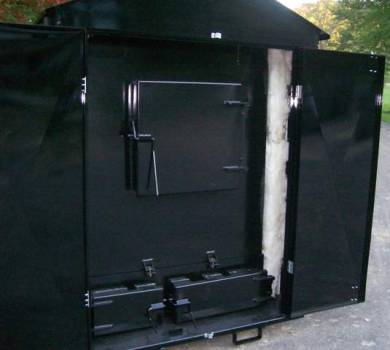

E 3300 & E 3400 Gasification Outdoor Furnaces
The E 3300 & E 3400 represent a new generation of woodstove design.  By using a forced downdraft gasification burn system (where the wood is turned into a gas), burn efficiency is increased while wood consumption and smoke emissions are reduced.
The key to such performance is the design.  Exhaust is forced to travel down through the coals into a firebrick maze below the burn chamber, and then through the back of the stove before exiting.  This travel path includes two 16 runs & one 6 foot run, exposing the exhuast to 103 square feet of heat transfer area.  The exhaust travel path includes many direction changes to increase gas burn time and to reduce the amount of ash particulate emitted.
The E3400 meets the new EPA OWHH Voluntary Rule Emmisions Standard and posses the orange EPA Tag.  The E3400 is made of 1/4" boiler plate, holds 250 gallons of water, and comes with a 20 year pro-rated warranty.
The E3300 heats up to 4,000 sq. ft;  the E3400  up to 10,000 sq. ft.

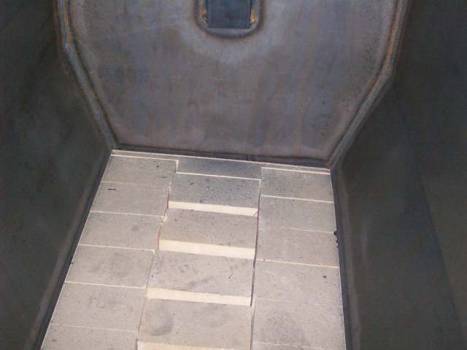

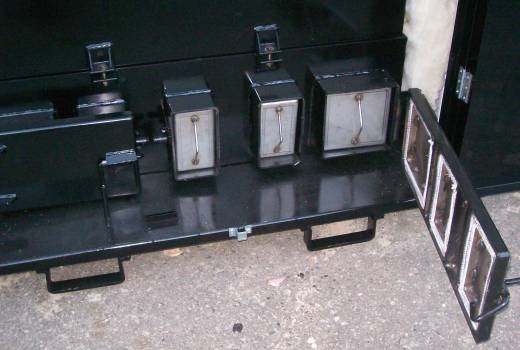

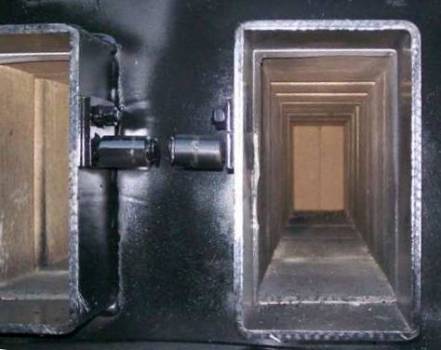

(Left) The burn chamber; (Center & Right) the front ash access ports & exhaust firebrick maze.
If you are interested in any of our products, contact us!
Phone: (608) 822-4310  Fax: (608) 822-4876
Email: [email protected] or click here
