#12 - Naming Transition Metal Compounds
Remember that the middle strip of the periodic table are the transition metals?

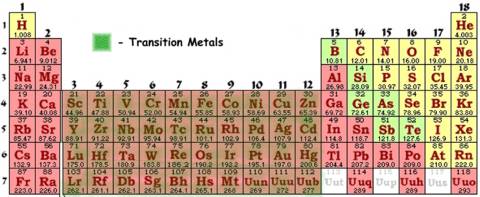

The green section in the middle are the transition metals
They, of course, are metals and can bond with non-metals, but they�re different. These metals have different electron structures and for that reason they can have different charges.
For example, Iron(Fe) is a transition element. When it bonds with oxygen(O) there can be different combinations:
For Example, There can be:
FeO2
Fe2O3
or
FeO6
If you named them like you would name regular metal-non-metal reactions, all three of these compounds would be named Iron Oxide. This isn�t acceptable because a scientist wouldn�t be able to tell which from the other. So, there�s just one more thing to do with transition metal naming.
Here�s an example:
FeO2
First, write down the name of the transition metal:
"That�s easy! it�s Iron(Fe)"
Iron
Second, in parentheses and roman numerals, put the charge of the transition metal:
"Um, O.K. The charge of Oxygen is -2, and since there�s two oxygen�s the total charge is -4,
and since there�s only one Iron to make up for that -4 charge, the iron must have a charge of +4"
Iron(IV)
Then, just put down the non-metal plus -ide (Table Below):
"alright! it�s oxide(O)"
Iron(IV) Oxide
(pronounced "Iron four Oxide")
Here�s another way to figure out the charge of the transition metal:
Another example:
Fe2O3
- Each Oxygen has 6 electrons and it needs 2 more to get to 8, since there are 3 Oxygen's (3 x 2) they all need 6 electrons in total.
- There are only 2 Irons(Fe) to give the 6 electrons, that must mean that each Iron has given 3 electrons (6/2 = 3)
- When an Iron has 3 electrons to give that means it has a charge of +3
SO naming it should be a piece of cake:
Iron(III) Oxide
(Pronounced "Iron three Oxide")
Here�s a chart full of extra examples to help you:
Compound
| Metal
| Charge
| Non-Metal
| -ide
| Final name
|
CuCl2
| Copper
| +2
| Chlor-
| -ide
| Copper(II) Chloride
|
CrF6
| Chromium
| +6
| Fluor-
| -ide
| Chromium(VI) Fluoride
|
HgCl2
| Mercury
| +2
| Chlor-
| -ide
| Mercury(II) Chloride
|
Also, Here�s a list of non-metals plus -ide:
Nonmetal |
First part of nonmetal |
Nonmetals with -ide |
Bromine |
Brom- |
Bromide |
Carbon |
Carb- |
Carbide |
Chlorine |
Chlor- |
Chloride |
Fluorine |
Fluor- |
Fluoride |
Iodine |
Iod- |
Iodide |
Nitrogen |
Nitr- |
Nitride |
Oxygen |
Ox- |
Oxide |
Phosphorus |
Phosph- |
Phosphide |
Selenium |
Selen- |
Selenide |
Silicone |
Silic- |
Silicide |
Sulfur |
Sulf- |
Sulfide |
Tellurium |
Tellur- |
Telluride |
- So Basically, to name transition metals:
- write down the name of the transition metal
- In parentheses and roman numerals, put the charge of the transition metal
- Just put down the non-metal plus -ide
|
