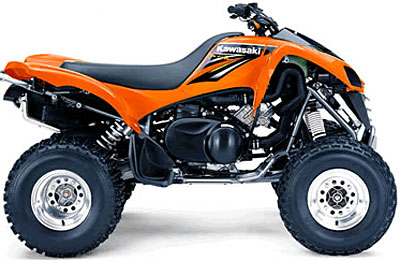

KFX 700 V Force

MANUFACTURER Kawasaki
MODEL YEAR 2004
MODEL KFX™700 V Force
ENGINE Four-stroke V-twin, SOHC, four valves per cylinder with wet sump lubrication
DISPLACEMENT 697cc
BORE X STROKE 82 x 66mm
CARBURETION Dual Keihin CVKR-D32 carburetors
COOLING Liquid-cooled
STARTER Electric
TRANSMISSION Kawasaki Automatic Power Drive System with forward, reverse and neutral
FINAL DRIVE Shaft
SUSPENSION Front/wheel: Dual A-arms, coil-over shocks/9.25 in.
BRAKES Front: Dual discs with two-piston calipers
Rear: Sealed, oil-bathed, multi-disc
TIRES Front: ITP Holeshot AT 22 x 7-10
Rear: ITP Holeshot AT 22 x 11-10
LENGTH 78.1 in.
WIDTH 47.0 in.
HEIGHT 46.1 in.
WHEELBASE 50.6 in.
SEAT HEIGHT 33.5 in.
GROUND CLEARANCE (Center of chassis/at rear axle): 9.6/6.3 in.
DRY WEIGHT 516 lbs.
FUEL CAPACITY 3.2 gal.
COLORS Kawasaki Lime Green
Blazing Orange
l

PRICE:$4,499

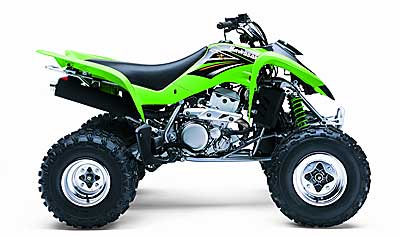

KFX 400

MANUFACTURER Kawasaki
MODEL YEAR 2004
MODEL KFX?400
ENGINE Four-stroke, single cylinder with DOHC and four valves with dry-sump lubrication system
DISPLACEMENT 398cc
BORE X STROKE n/a
CARBURETION Mikuni BSR36
COOLING Liquid-cooled
STARTER Electric
TRANSMISSION Five-speed-plus-reverse manual, multi-plate wet clutch
FINAL DRIVE 520 O-ring chain
SUSPENSION Front/wheel travel: Dual A-arms with coil-over shock, adjustable preload/8.3 in.
Rear/wheel travel: Swingarm with preload-adjustable shock/9.1 in.
BRAKES Front: Dual hydraulic discs
Rear: Disc
TIRES Front: 22 x 7-10 radial
Rear: 20 x 10-9 radial
LENGTH 72.0 in.
WIDTH 45.3 in.
HEIGHT n/a
WHEELBASE 49.0 in.
SEAT HEIGHT n/a
GROUND CLEARANCE 10.3 in.
DRY WEIGHT 370 lbs.
FUEL CAPACITY 2.7 gal.
COLORS Kawasaki Lime Green
Blazing Orange

PRICE: $3,699

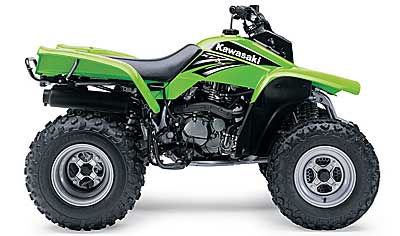

KFX 250 Mojave

MANUFACTURER Kawasaki
MODEL YEAR 2004
MODEL KFX?250 Mojave®
ENGINE DOHC, four-stroke, single cylinder
DISPLACEMENT 249cc
BORE X STROKE 74.0 x 58.0mm
COMPRESSION RATIO 11.0:1
CARBURETION Keihin CVK34
COOLING Liquid-cooled
STARTER Kick
CLUTCH Manual wet multi-disc clutch
TRANSMISSION Five-speed-plus-reverse with manual wet multi-disc clutch
FINAL DRIVE Shielded chain
IGNITION Electronic CDI
SUSPENSION Front/wheel travel: Double A-arms with two shock aborbers/6.9 in.
Rear/wheel travel: Swingarm with single shock absorber/8.5 in.
BRAKES Front: Dual disc
Rear: Disc
TIRES Front: AT21 x 7-10 tubeless
Rear: AT22 x 10-10 tubeless
LENGTH 68.3 in.
WIDTH 42.9 in.
HEIGHT n/a
WHEELBASE 44.3 in.
SEAT HEIGHT 29.7 in.
GROUND CLEARANCE (Center of chassis/at rear axle): 8.5/4.6 in.
DRY WEIGHT 379 lbs.
FUEL CAPACITY 2.2 gal.
COLORS Kawasaki Lime Green


PRICE: $2,099

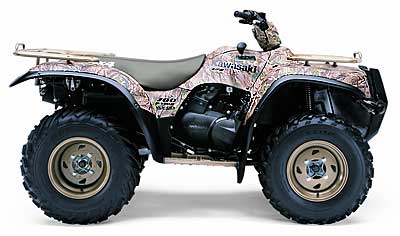

Prairie 700 4X4 HDW

MANUFACTURER Kawasaki
MODEL YEAR 2004
MODEL Prairie® 700 4x4 HDW
ENGINE 90-degree, 4-stroke V-twin, SOHC, four valves
DISPLACEMENT 697cc
BORE X STROKE 82 x 66mm
COMPRESSION RATIO 9.9:1
CARBURETION (2) Keihin CVKR-D32
COOLING Liquid-cooled
STARTER Electric with recoil back-up
TRANSMISSION Dual-range CVT plus reverse with K-EBC? (Kawasaki Engine Brake Control)
FINAL DRIVE 2x4/4x4 shaft
IGNITION DC-CDI
SUSPENSION Front/wheel travel: MacPherson/6.7 in.
Rear/wheel travel: Aluminum swingarm and single shock/7.2 in.
BRAKES Front: (2) Dual-piston disc
Rear: Sealed oil-bathed multi-disc
TIRES Front: AT25 x 8-12
Rear: AT25 x 10-12
LENGTH 86.2 in.
WIDTH 46.5 in.
HEIGHT n/a
WHEELBASE 50.8 in.
SEAT HEIGHT 34.3 in.
GROUND CLEARANCE (At center of chassis/at rear axle): 9.5/7.6 in.
DRY WEIGHT 602 lbs.
FUEL CAPACITY 4.5 gal.
TOWING CAPACITY 1,250 lbs.
COLORS REALTREE® Hardwoods® Green HD? camouflage


PRICE: $5,399

Prairie 700 4X4

MANUFACTURER Kawasaki
MODEL YEAR 2004
MODEL Prairie® 700 4x4
ENGINE 90-degree, 4-stroke V-twin, SOHC, four valves
DISPLACEMENT 697cc
BORE X STROKE 82 x 66mm
COMPRESSION RATIO 9.9:1
CARBURETION (2) Keihin CVKR-D32
COOLING Liquid-cooled
STARTER Electric with recoil back-up
TRANSMISSION Dual-range CVT plus reverse with K-EBC? (Kawasaki Engine Brake Control)
FINAL DRIVE 2x4/4x4 shaft
IGNITION DC-CDI
SUSPENSION Front/wheel travel: MacPherson/6.7 in.
Rear/wheel travel: Aluminum swingarm and single shock/7.2 in.
BRAKES Front: (2) Dual-piston disc
Rear: Sealed oil-bathed multi-disc
TIRES Front: AT25 x 8-12
Rear: AT25 x 10-12
LENGTH 86.2 in.
WIDTH 46.5 in.
HEIGHT n/a
WHEELBASE 50.8 in.
SEAT HEIGHT 34.3 in.
GROUND CLEARANCE (At center of chassis/at rear axle): 9.5/7.6 in.
DRY WEIGHT 602 lbs.
FUEL CAPACITY 4.5 gal.
TOWING CAPACITY 1,250 lbs.
COLORS Aztec Red
Hunter Green


PRICE: $5,099

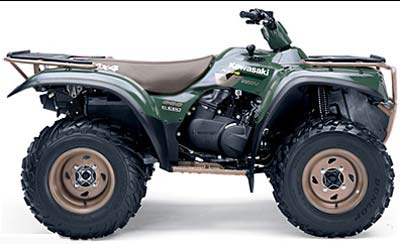

Prairie 650 4X4

MANUFACTURER Kawasaki
MODEL YEAR 2004
MODEL Prairie® 650 4x4
ENGINE Liquid-cooled, 90-degree, 4-stroke V-twin Valve system SOHC, four valves
DISPLACEMENT 633cc
BORE X STROKE 80 x 63mm
COMPRESSION RATIO 9.9:1
CARBURETION (2) Keihin CVKR-D32
STARTER Electric or manual (pull start)
TRANSMISSION Dual-range CVT plus reverse with KEBC??awasaki Engine Brake Control)
FINAL DRIVE 2x4/4x4 shaft
SUSPENSION Front: MacPherson; 6.7 in. travel
Rear: Aluminum swingarm and single shock; 7.2 in. travel
BRAKES Front: (2) Dual-piston disc
Rear: Sealed oil-bathed multi-disc
TIRES Front: AT25 x 8-12
Rear: AT25 x 10-12
LENGTH 84.8 in.
WIDTH 46.1 in.
HEIGHT N/A
WHEELBASE 51.0 in.
SEAT HEIGHT 33.7 in.
GROUND CLEARANCE At center of chassis/at rear axle: 9.5 in. / 7.6 in.
DRY WEIGHT 604 lbs.
FUEL CAPACITY 4.5 gal.
TOWING CAPACITY 1,250 lbs.
COLORS Hunter Green
Aztec Red


PRICE:$4,999

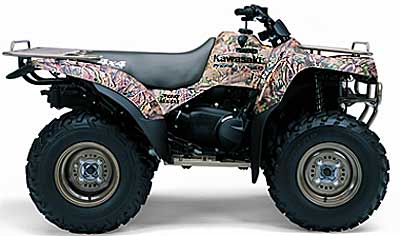

Prairie 360 4X4 HDW

MANUFACTURER Kawasaki
MODEL YEAR 2004
MODEL Prairie® 360 4x4 HDW
ENGINE SOHC, four-stroke, single cylinder
DISPLACEMENT 362cc
BORE X STROKE 80.0 x 72.0mm
COMPRESSION RATIO 8.3:1
CARBURETION Keihin CVK34
COOLING Air-cooled
STARTER Electric with recoil backup
TRANSMISSION Kawasaki Automatic Power-Drive System (KAPS) with K-EBC? (Kawasaki Engine Brake Control) and high/low range plus reverse
FINAL DRIVE Selectable 2x4/4x4 with Variable Front Differential Control, shaft
SUSPENSION Front/wheel travel: MacPherson strut/6.7 in.
Rear/wheel travel: Swingarm with single shock with preload adjustment/7.1 in.
BRAKES Front: Dual hydraulic discs
Rear: Sealed, oil-bathed, multi-disc system
TIRES Front: AT25 x 8-12 tubeless
Rear: AT25 x 10-12 tubeless
LENGTH 81.3 in.
WIDTH 47.4 in.
HEIGHT 46.3 in.
WHEELBASE 49.2 in.
SEAT HEIGHT 35.0 in.
GROUND CLEARANCE (At center of chassis/at rear axle): 9.8/7.7 in.
DRY WEIGHT n/a
FUEL CAPACITY 3.6 gal.
TOWING CAPACITY 1,100 lbs.
COLORS REALTREE® Hardwoods® Green HD camouflage


PRICE: $3,799

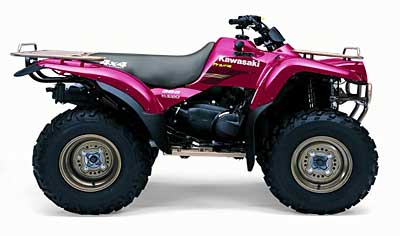

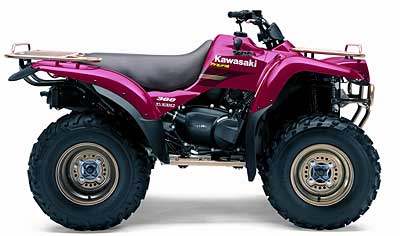

Prairie 360 4X4

MANUFACTURER Kawasaki
MODEL YEAR 2004
MODEL Prairie® 360 4x4
ENGINE SOHC, four-stroke, single cylinder
DISPLACEMENT 362cc
BORE X STROKE 80.0 x 72.0mm
COMPRESSION RATIO 8.3:1
CARBURETION Keihin CVK34
COOLING Air-cooled
STARTER Electric with recoil backup
TRANSMISSION Kawasaki Automatic Power-Drive System (KAPS) with K-EBC? (Kawasaki Engine Brake Control) and high/low range plus reverse
FINAL DRIVE Selectable 2x4/4x4 with Variable Front Differential Control, shaft
SUSPENSION Front/wheel travel: MacPherson strut/6.7 in. Rear/wheel travel: Swingarm with single shock with preload adjustment/7.1 in.
BRAKES Front: Dual hydraulic discs
Rear: Sealed, oil-bathed, multi-disc system
TIRES Front: AT25 x 8-12 tubeless
Rear: AT25 x 10-12 tubeless
LENGTH 81.3 in.
WIDTH 47.4 in.
HEIGHT 46.3 in.
WHEELBASE 49.2 in.
SEAT HEIGHT 35.0 in.
GROUND CLEARANCE (at center of chassis/at rear axle): 9.8/7.7 in.
DRY WEIGHT n/a
FUEL CAPACITY 3.6 gal.
COLORS Aztec Red
Hunter Green




PRICE:$3,499

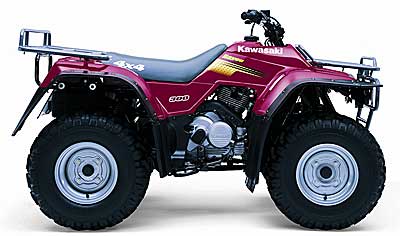

Bayou 300 4X4

MANUFACTURER Kawasaki
MODEL YEAR 2004
MODEL Bayou® 300 4x4
ENGINE SOHC, four-stroke, single cylinder
DISPLACEMENT 290cc
BORE X STROKE 76.0 x 64.0mm
COMPRESSION RATIO 8.6:1
CARBURETION Keihin CVK32
COOLING Air-cooled
STARTER Electric with recoil backup
CLUTCH Automatic
TRANSMISSION Five-speed-plus-reverse with high/low range and automatic clutch
FINAL DRIVE All-shaft, four-wheel drive with limited-slip front differential
SUSPENSION Front/travel: Dual A-arms and shocks with 3-way preload adjustment/4.3 in.
Rear/travel: Semi-independent with dual shocks and 3-way preload adjustment/4.7 in.
BRAKES Front: Dual discs
Rear: Single sealed drum
TIRES Front: AT24 x 8-11 tubeless
Rear: AT24 x 10-11 tubeless
LENGTH 73.2 in.
WIDTH 44.1 in.
HEIGHT n/a
WHEELBASE 47.2 in.
SEAT HEIGHT 31.7 in.
GROUND CLEARANCE (Center of chassis/at rear axle): 8.9/6.8 in.
DRY WEIGHT 573 lbs.
FUEL CAPACITY 2.9 gal.
TOWING CAPACITY 700 lbs.
COLORS Aztec Red
Hunter Green


PRICE:$2,999
