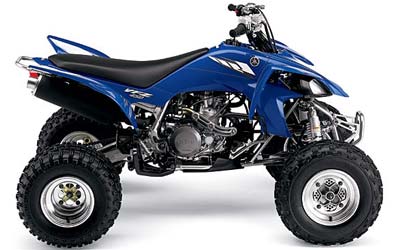

YZF 450

MANUFACTURER Yamaha
MODEL YEAR 2004
MODEL YFZ450
ENGINE 439cc, 4-Stroke Single, Liquid Cooled w/ Fan, Titanium 5-Valve DOHC
DISPLACEMENT 439cc
BORE X STROKE 95mm x 62mm
COMPRESSION RATIO 11.9:1
CARBURETION Keihin 39mm FCR w/ Throttle Position Sensor
COOLING Liquid Cooled
STARTER Electric
TRANSMISSION 5-Speed Manual Clutch
FINAL DRIVE Sealed O-Ring Chain
IGNITION DC - CDI
SUSPENSION Front: Independent Double Wishbone, 9.1 in. w/ Compression and Threaded Preload Adjustment
Rear: Aluminum Swing Arm, 10.1 in. w/ Rebound, Compression and Threaded Preload Adjustment
BRAKES Front: Dual Hydraulic Disc, Twin Piston
Rear: Hydraulic Disc
TIRES Front: AT21 x 7-10 Radial
Rear: AT20 x 10-9 Radial
LENGTH 72.4 in.
WIDTH 46.1 in.
HEIGHT 42.9 in.
WHEELBASE 50.4 in.
SEAT HEIGHT 31.5 in.
GROUND CLEARANCE 4.4 in.
DRY WEIGHT 350 lbs.
FUEL CAPACITY 2.6 gal.
COLORS Team Yamaha Blue/White
White/Red


PRICE: $4,299

Banshee

MANUFACTURER Yamaha
MODEL YEAR 2004
MODEL Banshee
ENGINE 347cc, 2-Stroke Twin, Liquid Cooled, Reed Valve
DISPLACEMENT 347cc
BORE X STROKE 64 x 54mm
COMPRESSION RATIO 6.5:1
CARBURETION Dual Mikuni 26mm
STARTER Kick
TRANSMISSION 6-Speed Manual Clutch
FINAL DRIVE Sealed O-Ring Chain
IGNITION CDI
SUSPENSION Front: Independent Double Wishbone, 9.1 in. w/ 5-way Preload Adjustment
Rear: Swing Arm, 8.7 in. w/ Rebound, Compression and Threaded Preload Adjustment
BRAKES Front: Dual Hydraulic Disc
Rear: Hydraulic Disc
TIRES Front: AT21 x 7-10
Rear: AT20 x 10-9
LENGTH 73.0 in.
WIDTH 43.3 in.
HEIGHT 42.5 in.
WHEELBASE 50.4 in.
SEAT HEIGHT 31.5 in.
GROUND CLEARANCE 5.3 in.
DRY WEIGHT 386 lbs.
FUEL CAPACITY 3.2 gal.
COLORS Team Yamaha Blue/White
White/Red
Black

PRICE: $3,399

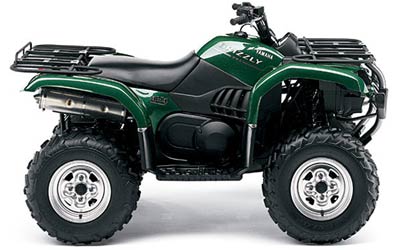

Grizzly 660 Auto. 4X4

MANUFACTURER Yamaha
MODEL YEAR 2004
MODEL Grizzly® 660 Auto. 4x4
ENGINE 660cc, 4-Stroke Single, Liquid Cooled w/ Fan, 5-Valve SOHC
DISPLACEMENT 660cc
BORE X STROKE 100 x 84mm
COMPRESSION RATIO 9.1:1
CARBURETION Mikuni 42mm BSR
STARTER Electric w/ Auxiliary pull
TRANSMISSION Yamaha Ultramatic® V-Belt with all-wheel engine braking / Hi,Lo,Neut.,Rev.,Park
FINAL DRIVE Shaft
IGNITION DC ? CDI
SUSPENSION Front: Independent Double Wishbone, 7.1 in. w/ 5-way Preload Adjustment
Rear: Independent Double Wishbone, 9.5 in. w/ 5-way Preload Adjustment
BRAKES Front: Dual Hydraulic Discs
Rear: Hydraulic Disc, Four Piston, Shaft Mounted
TIRES Front: AT25 x 8-12 w/ Aluminum Wheels
Rear: AT25 x 10-12 w/ Aluminum Wheels
LENGTH 82.1 in.
WIDTH 45.3 in.
HEIGHT 47.6 in.
WHEELBASE 50.2 in.
SEAT HEIGHT 34.6 in.
GROUND CLEARANCE 11.8 in.
DRY WEIGHT 600 lbs.
FUEL CAPACITY 5.3 gal.
LOAD CAPACITY Rack Capacity: 99 lbs.Front / 187 lbs.Rear
TOWING CAPACITY 1,212 lbs.
COLORS Hunter Green
Red
Steel Blue
Realtree Hardwoods® High Definition Camouflage
Advantage Wetlands? Camouflage
Limited Edition Metallic Red


PRICE: $4,099

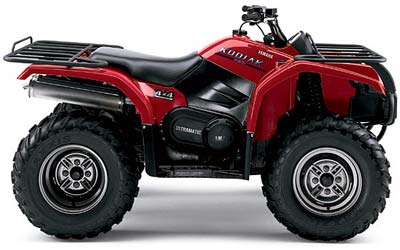

Kodiak 450 Auto. 4X4

MANUFACTURER Yamaha
MODEL YEAR 2004
MODEL Kodiak? 450 Auto. 4x4
ENGINE 421cc, 4-Stroke Single, Liquid Cooled w/ Fan, SOHC
DISPLACEMENT 421cc
BORE X STROKE 84.5 x 75mm
COMPRESSION RATIO 10:1
CARBURETION Mikuni 33mm BSR
STARTER Electric w/ Auxiliary Pull
TRANSMISSION Yamaha Ultramatic® V-Belt with all-wheel engine braking / Hi,Lo,Neut.,Rev.,Park
FINAL DRIVE Shaft
IGNITION DC ? CDI
SUSPENSION Front: Independent Double Wishbone, 6.3 in. w/ 5-way Preload Adjustment
Rear: Swing Arm, 7.1 in. w/ 5-way Preload Adjustment
BRAKES Front: Dual Hydraulic Disc
Rear: Hydraulic Disc
TIRES Fron:t AT25 x 8-12
Rear: AT25 x 10-12
LENGTH 78.1 in.
WIDTH 42.7 in.
HEIGHT 44.1 in.
WHEELBASE 48.5 in.
SEAT HEIGHT 32.6 in.
GROUND CLEARANCE 9.7 in.
DRY WEIGHT 551 lbs.
FUEL CAPACITY 4.0 gal.
LOAD CAPACITY Rack Capacity: 88 lbs.Front / 176 lbs.Rear
TOWING CAPACITY 1,102 lbs.
COLORS Hunter Green
Red
Steel Blue
Realtree Hardwoods® High Definition Camouflage



PRICE: $3,699

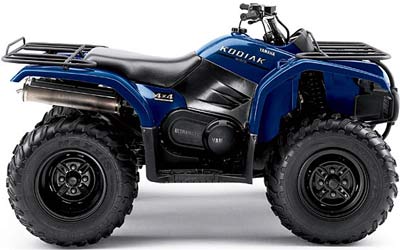

Kodiak 400 Auto. 4X4

MANUFACTURER Yamaha
MODEL YEAR 2004
MODEL Kodiak? 400 Auto. 4x4
ENGINE 401cc, 4-Stroke Single, Liquid Cooled w/ Fan, SOHC
DISPLACEMENT 401cc
BORE X STROKE 84.5 x 71.5mm
COMPRESSION RATIO 10.5:1
CARBURETION Mikuni 33mm BSR
STARTER Electric w/ Auxiliary Pull
TRANSMISSION Yamaha Ultramatic? V-Belt with engine braking / Forward,Neut.,Rev.
FINAL DRIVE Shaft
IGNITION DC ? CDI
SUSPENSION Front: Independent Double Wishbone, 6.3 in. w/ 5-way Preload Adjustment
Rear: Swing Arm, 7.1 in. w/ 5-way Preload Adjustment
BRAKES Front: Dual Hydraulic Disc
Rear: Fully Sealed Drum
TIRES Front: AT25 x 8-12
Rear: AT25 x 10-12
LENGTH 78.1 in.
WIDTH 42.7 in.
HEIGHT 44.1 in.
WHEELBASE 48.5 in.
SEAT HEIGHT 32.6 in.
GROUND CLEARANCE 9.7 in.
DRY WEIGHT 547 lbs.
FUEL CAPACITY 4.0 gal.
LOAD CAPACITY Rack Capacity: 88 lbs.Front / 176 lbs.Resr
TOWING CAPACITY 1,102 lbs.
COLORS Hunter Green, Red, Steel Blue, Realtree Hardwoods® High Definition Camouflage


PRICE: $3,099

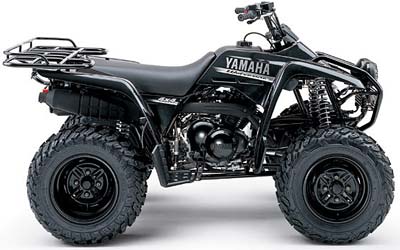

Wolverine 4X4

MANUFACTURER Yamaha
MODEL YEAR 2004
MODEL Wolverine 4X4
ENGINE 348cc, 4-Stroke Single, Air/Oil Cooler, SOHC
DISPLACEMENT 348cc
BORE X STROKE 83 x 64.5mm
COMPRESSION RATIO 9.2:1
CARBURETION Mikuni 34 mm
STARTER Electric w/ Auxiliary Pull
TRANSMISSION 5-Speed Automatic Clutch w/ Reverse
FINAL DRIVE Shaft
IGNITION CDI
SUSPENSION Front: Independent Double Wishbone, 7.1 in. w/ 5-way Pre-load Adjustment
Rear: Swing Arm, 7.1 in. w/5-way Pre-load Adjustment
BRAKES Front: Dual Hydraulic Disc
Rear: Hydraulic Disc
TIRES Front: AT23 x 8-12
Rear: AT23 x 10-12
LENGTH 73.6 in.
WIDTH 42.3 in.
HEIGHT 45.3 in.
WHEELBASE 48.4 in.
SEAT HEIGHT 31.1 in.
GROUND CLEARANCE 8.7 in.
DRY WEIGHT 477 lbs.
FUEL CAPACITY 3.4 gal.
LOAD CAPACITY Rack Capacity: 132 lbs. Rear
TOWING CAPACITY 728 lbs. (With Optional Hitch)
COLORS Team Yamaha Blue
Black


PRICE: $2,599

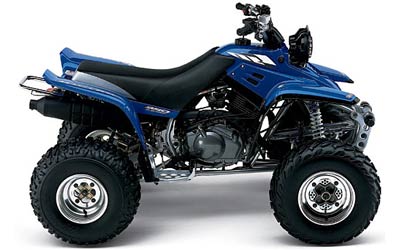

Warrior

MANUFACTURER Yamaha
MODEL YEAR 2004
MODEL Warrior
ENGINE 348cc, 4-Stroke Single, Air Cooled, SOHC
DISPLACEMENT 348cc
BORE X STROKE 83 x 64.5mm
COMPRESSION RATIO 9.2:1
CARBURETION Mikuni 36mm
STARTER Electric
TRANSMISSION 6-Speed Manual Clutch w/ Reverse
FINAL DRIVE Sealed O-Ring Chain
IGNITION DC - CDI
SUSPENSION Front: Independent Double Wishbone, 7.9 in. w/ 5-way Preload Adjustment
Rear: Swing Arm, 7.9 in. w/ Rebound, and 5-way Threaded Preload Adjustment
BRAKES Front: Dual Hydraulic Disc
Rear: Hydraulic Disc
TIRES Front: AT22 x 7-10
Rear: AT22 x 10-9
LENGTH 72.4 in.
WIDTH 42.5 in.
HEIGHT 42.5 in.
WHEELBASE 47.2 in.
SEAT HEIGHT 30.1 in.
GROUND CLEARANCE 4.9 in.
DRY WEIGHT 397 lbs.
FUEL CAPACITY 2.4 gal.
COLORS Team Yamaha Blue/White
White/Red


PRICE: $2,099

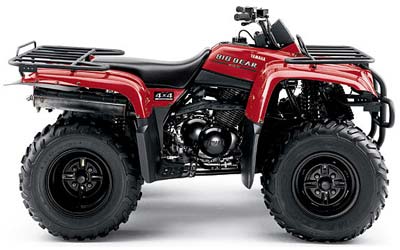

Big Bear 400 4X4

MANUFACTURER Yamaha
MODEL YEAR 2004
MODEL Big Bear 400 4X4
ENGINE 386cc, 4-Stroke Single, Air/Oil Cooler w/ Fan, SOHC
DISPLACEMENT 386cc
BORE X STROKE 83 x 71.5mm
COMPRESSION RATIO 8.6:1
CARBURETION Mikuni 33mm BSR
STARTER Electric w/ Auxiliary Pull
TRANSMISSION 5-Speed Automatic Clutch w/ Reverse
FINAL DRIVE Shaft
IGNITION DC - CDI
SUSPENSION Front: Independent Double Wishbone, 5.9 in. w/ 5-way Preload Adjustment
Rear: Swing Arm, 5.9 in. w/ 5-way Preload Adjustment
BRAKES Front: Dual Hydraulic Disc
Rear: Fully Sealed Drum
TIRES Front: AT25 x 8-12
Rear: AT25 x 10-12
LENGTH 79.0 in.
WIDTH 43.7 in.
HEIGHT 46.1 in.
WHEELBASE 48.4 in.
SEAT HEIGHT 33.7 in.
GROUND CLEARANCE 9.7 in.
DRY WEIGHT 556 lbs.
FUEL CAPACITY 4.0 gal.
LOAD CAPACITY Rack Capacity: 88 lbs. Front / 176 lbs. Rear
TOWING CAPACITY 904 lbs.
COLORS Hunter Green
Red
Steel Blue




PRICE: $2,799

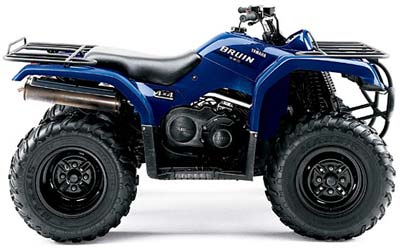

Bruin 350 Auto. 4X4

MANUFACTURER Yamaha
MODEL YEAR 2004
MODEL Bruin 350 Auto. 4x4
ENGINE 348cc, 4-Stroke Single, Air/Oil Cooler w/ Fan, SOHC
DISPLACEMENT 348cc
BORE X STROKE 83mm x 64.5mm
COMPRESSION RATIO 9.2:1
CARBURETION Mikuni 33mm BSR
STARTER Electric w/ Auxiliary Pull
TRANSMISSION Yamaha Ultramatic® V-Belt with all-wheel engine braking / Forward, Neut.,Rev.
FINAL DRIVE Shaft
IGNITION DC ? CDI
SUSPENSION Front: Independent Double Wishbone, 6.3 in. w/ 5-way Preload Adjustment
Rear Swing Arm, 7.1 in. w/ 5-way Preload Adjustment
BRAKES Front: Dual Hydraulic Disc
Rear: Fully Sealed Drum
TIRES Front: AT25 x 8-12
Rear: AT25 x 10-12
LENGTH 78.1 in.
WIDTH 42.7 in.
HEIGHT 44.1 in.
WHEELBASE 48.5 in.
SEAT HEIGHT 32.6 in.
GROUND CLEARANCE 9.7 in.
DRY WEIGHT 538 lbs.
FUEL CAPACITY 3.6 gal.
LOAD CAPACITY Rack Capacity: 88 lbs. Front / 176 lbs. Rear
TOWING CAPACITY 1,102 lbs.
COLORS Hunter Green
Red
Steel Blue
Realtree Hardwoods® High Definition Camouflage


PRICE: $2,499
