Solar Water Heater
working principle:

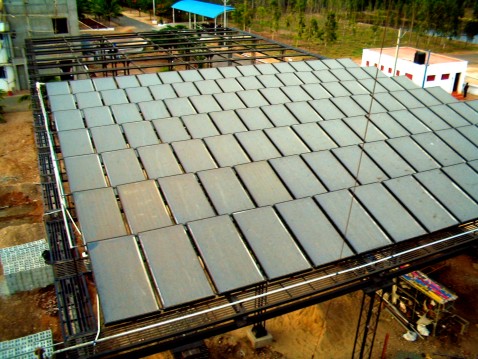

The system
consists of flat plate solar collector and highly insulated water tank. The
collector is designed such that the cold water entering is heated up when
sunshine falls on it. The heated hot water moves up and stored in the
insulated water tank due to the decrease of density, the fresh water
reaches the solar collector by thermosyphoning
(Natural Flow). This process carries automatically till the sunshine is
available. The hot water stored in the tank will have a
heat retention for three days.
Technical
Specifications:
Absorber
- Copper black chrome selective coating (Nalsun)
Collector
Box
- Powder Coated Black
No. of
fins
- 10 fins
Fin
Type
- Deep serrated fins to increase surface area of 10 to 15
%
Top Cover/ Glazing
- Toughened Glass 4mm thick
Insulation
- Rockwool 48 kg/ cu.mtr density for colletor
& 100 kg/ cu.mtr for Tank
Inner & Outer Tank
- Stainless Steel 304 Grade
InnerTank Welding
- Tig welding to prevent
corrosion
Sacrificial Anode Rod - Incorporated
for Hard water
|
