What EPoX KP6-BS is missing

Adding second LM75 Air Temperature sensor

by Derek Kwan

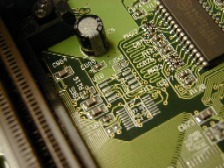

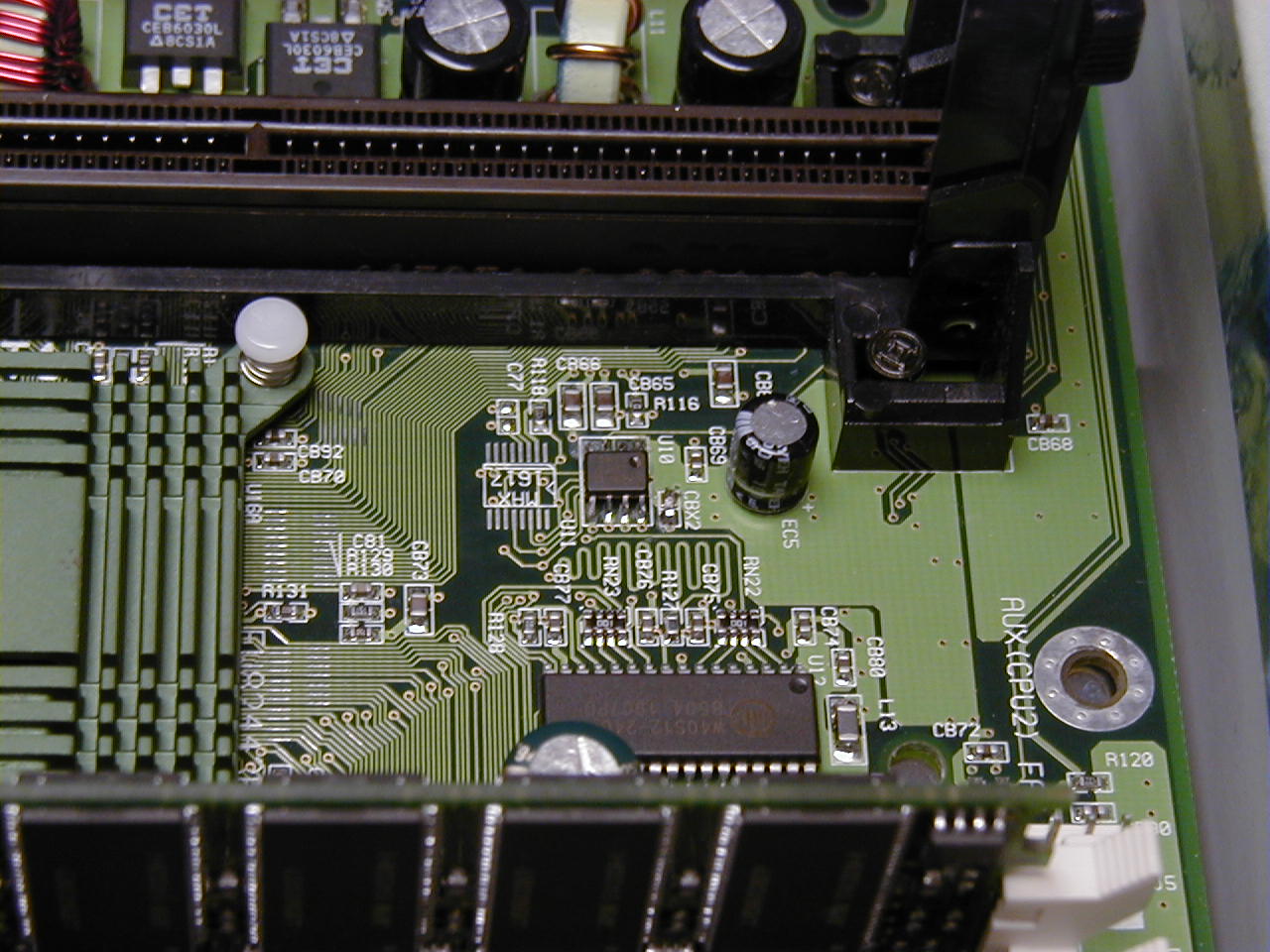

First of all, here are before and after pictures for EPoX KP6-BS motherboard with the second LM75... (Click to zoom in)


BEFORE	AFTER

There is really nothing much to talk about, all you need is get yourself a LM75-CIM3 (3 stands for 3V) from National Semiconductor. Also get a 0.1uF surface mount cap for CBX2. If you are going to use Motherboard Monitor, for Primary Slot 1 you use LM75-5, and Secondary Slot 1 use LM75-6.

Make sure you check you soldering job before you apply power! And I am not responable for any damage may done to your board...
