AN/MPQ-T2 System...

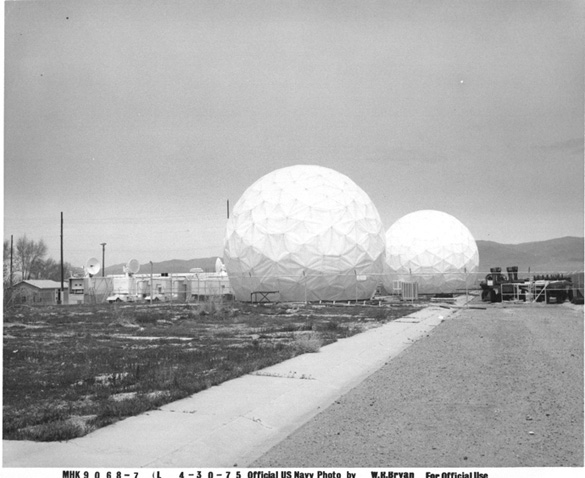

The AN/MPQ-T2 was a SAM (Surface-to-Air Missile) simulator employing three RF bands, "I", "E" and "F/G".  The India band radar was very similar to the AN/MSQ-39 and AN/MSQ-46.  In this picture you can see, (l-r), the AN/MSQ-77, T2 India band, AN/MPS-9, and the two domes for the T2 Echo band and Fox/Golf.

This picture is from Detachment 12, Hawthorne, Nevada.  30 Apr 75.

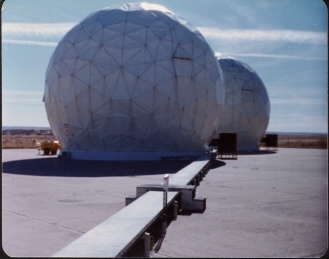

Detachment 1 La Junta, Colorado (1975)

(Steven Jones photo)
