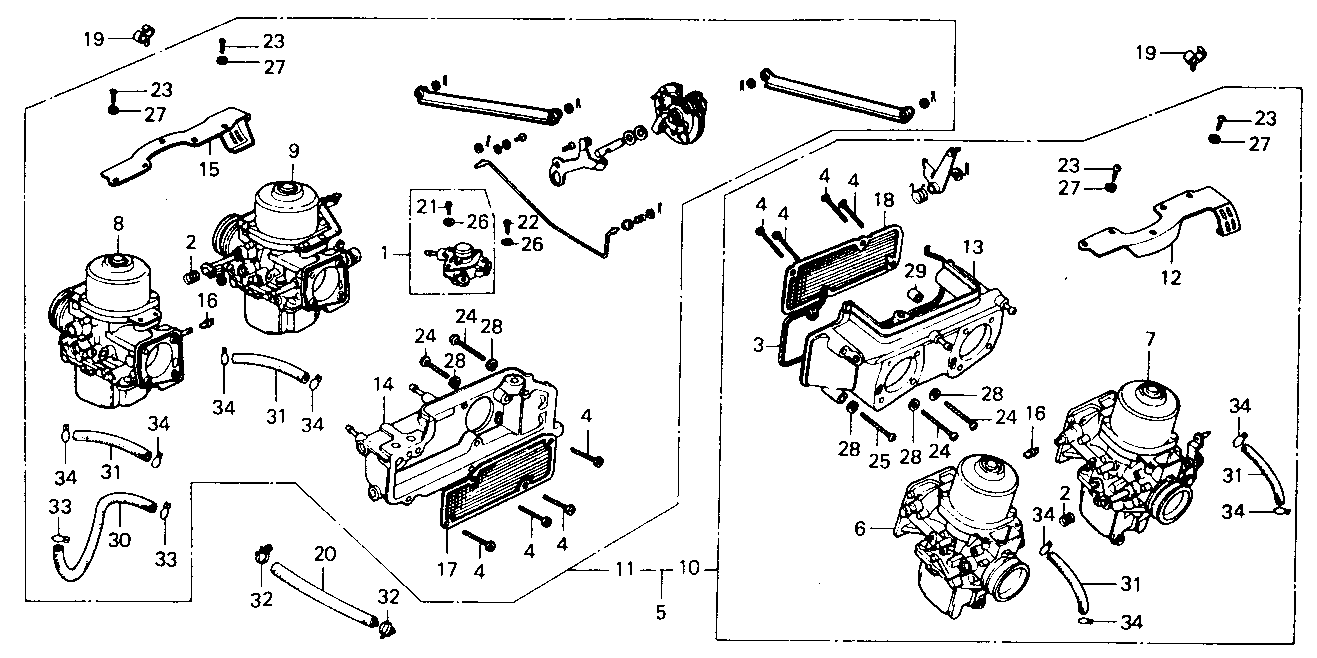

Ref.No |
Partnumber |
Description |
Reqd. |
| 1 | 16048-371-004 | VALVE SET, AIR CUT | 1 |
| 2 | 16051-371-771 | SPRING, COIL | 2 |
| 3 | 16075-371-004 | PACKING, AIR CHAMBER | 1 |
| 4 | 16080-371-004 | BOLT SPECIAL 6MM | 8 |
| 5 | 16100-431-004 | CARBURETOR ASSY. | 1 |
| 6 | 16101-431-004 | CARBURETOR ASSY. 17 L. | 1 |
| 7 | 16102-431-004 | CARBURETOR ASSY. 21 L. | 1 |
| 8 | 16103-431-004 | CARBURETOR ASSY. 17 R. | 1 |
| 9 | 16104-431-004 | CARBURETOR ASSY. 27 R. | 1 |
| 10 | 16105-431-004 | CARBURETOR ASSY. L. | 1 |
| 11 | 16106-431-004 | CARBURETOR ASSY. R. | 1 |
| 12 | 16129-371-771 | PLATE, L. STAY | 1 |
| 13 | 16157-371-771 | CHAMBER A, AIR | 1 |
| 14 | 16158-371-771 | CHAMBER B, AIR | 1 |
| 15 | 16169-371-771 | PLATE R. STAY | 1 |
| 16 | 16172-500-014 | JOINT, CONNECTER | 2 |
| 17 | 16196-371-004 | BODY COMP. B, FRAME TRAP | 1 |
| 18 | 16197-371-004 | BODY COMP. A, FRAME TRAP | 1 |
| 19 | 32981-371-000 | GROMMET, HIGH TENSION CORD | 2 |
| 20 | 91320-371-000 | HOSE, FUEL, 5.5X160 | 1 |
| 21 | 93500-04010-OA | SCREW, PAN, 4X10 | 2 |
| 22 | 93500-04018-OA | SCREW, PAN, 4XI8 | 2 |
| 23 | 93500-05012-OA | SCREW, PAN, 5X12 | 8 |
| 24 | 93500-06035 | SCREW, PAN, 6X35 | 4 |
| 25 | 93500-06045 | SCREW, PAN, 6X45 | 1 |
| 26 | 94111-04000 | WASHER, SPRING, 4MM | 4 |
| 27 | 94111-05000 | WASHER, SPRING, 5MM | 9 |
| 28 | 94111-06000 | WASHER, SPRING, 6MM | 5 |
| 29 | 94301-08140 | PIN A, DOWEL, 8x14 | 2 |
| 30 | 95001-35210-40 | TUBE, FUEL, 3.5x210 | 1 |
| 31 | 95001-55100-40 | TUBE, FUEL, 5.3x100 | 4 |
| 32 | 95002-01120 | CLIP, A12, TUBE | 2 |
| 33 | 95002-02070 | CLIP, B7, TUBE | 2 |
| 34 | 95002-02100 | CLIP, B10, TUBE | 8 |
