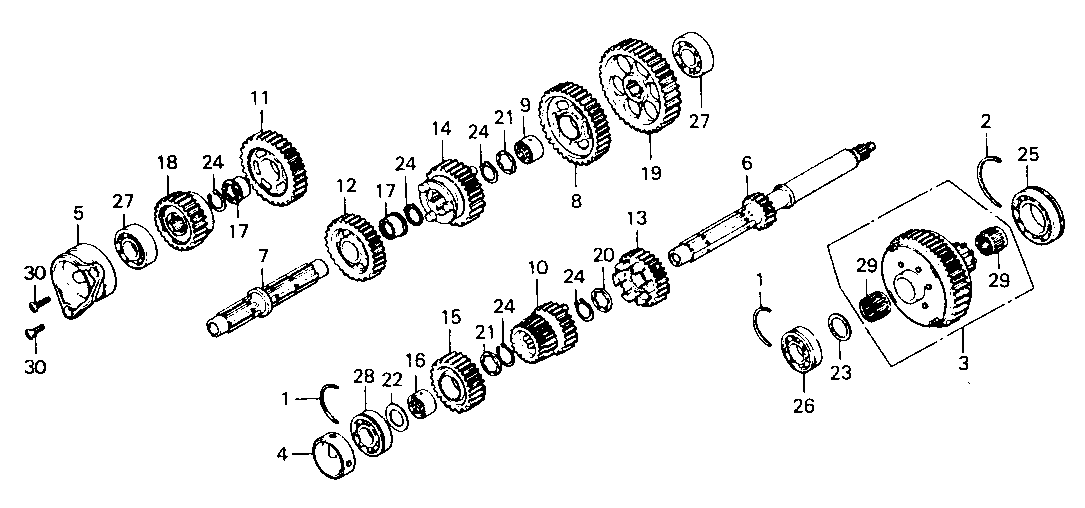

Ref.No
|
Partnumber
|
Description
|
Reqd.
|
| 1 |
13495-300-000 |
RING A, BALL BEARING SET |
2 |
| 2 |
13496-300-000 |
RING B, BALL BEARING SET |
1 |
| 3 |
23110-371-000 |
SPROCKET COMP., PRIMARY DRIVEN |
1 |
| 4 |
23141-371-000 |
PASS , MAINSHAFT OIL |
1 |
| 5 |
23151-431-000 |
HOLDER C, BEARING |
1 |
| 6 |
23210-371-000 |
MAINSHAFT COMP. TRANSMISSIONI (18T) |
1 |
| 7 |
23220-431-000 |
COUNTERSHAFT, TRANSMISSION |
1 |
| 8 |
23421-300-050 |
GEAR, COUNTERSHAFT LOW (45T) |
1 |
| 9 |
23425-300-010 |
BUSH, 29x14 |
1 |
| 10 |
23431-371-000 |
GEAR, MAINSHAFT SECOND & THIRD (24T&27T) |
1 |
| 11 |
23441-431-000 |
GEAR, COUNTERSHAFT SECOND |
1 |
| 12 |
23451-431-000 |
GEAR, COUNTERSHAFT THIRD |
1 |
| 13 |
23460-371-000 |
GEAR COMP., MAINSHAFT FOURTH (31T) |
1 |
| 14 |
23471-371-000 |
GEAR, COUNTERSHAFT FOURTH (34T) |
1 |
| 15 |
23481-371-000 |
GEAR, MAINSHAFT TOP (33T) |
1 |
| 16 |
23485-300-020 |
BUSH, 28x20.5 |
1 |
| 17 |
23485-410-003 |
BUSH, 26MM |
2 |
| 18 |
23491-371-000 |
GEAR, COUNTERSHAFT TOP (31T) |
1 |
| 19 |
23501-371-000 |
GEAR, FINAL DRIVE (40T) |
1 |
| 20 |
9015l-371-000 |
WASHER, THRUST, 25x31 |
1 |
| 21 |
90452-371-000 |
WASHER, THRUST, 25x34 |
2 |
| 22 |
90458-292-000 |
WASHER, THRUST, 20MM |
1 |
| 23 |
90458-506-810 |
WASHER A, THRUST, 25MM |
1 |
| 24 |
90601-300-000 |
CIRCLIP 25MM |
5 |
| 25 |
91001-371-008 |
BEARING SPECIAL BALL, 6008( TOYO) |
1 |
| 26 |
91002-300-006 |
BEARING BALL, 6205 |
1 |
| 27 |
91002-371-004 |
BEARING BALL, 6304C (KOY0) |
2 |
| 28 |
91004-371-008 |
BEARING BALL, 6304CS (TOY0) |
1 |
| 29 |
91010-300-008 |
BEARING, NEEDLE 25x32x20 |
2 |
| 30 |
93600-06020 |
SCREW, FLAT, 6X20 |
2 |
